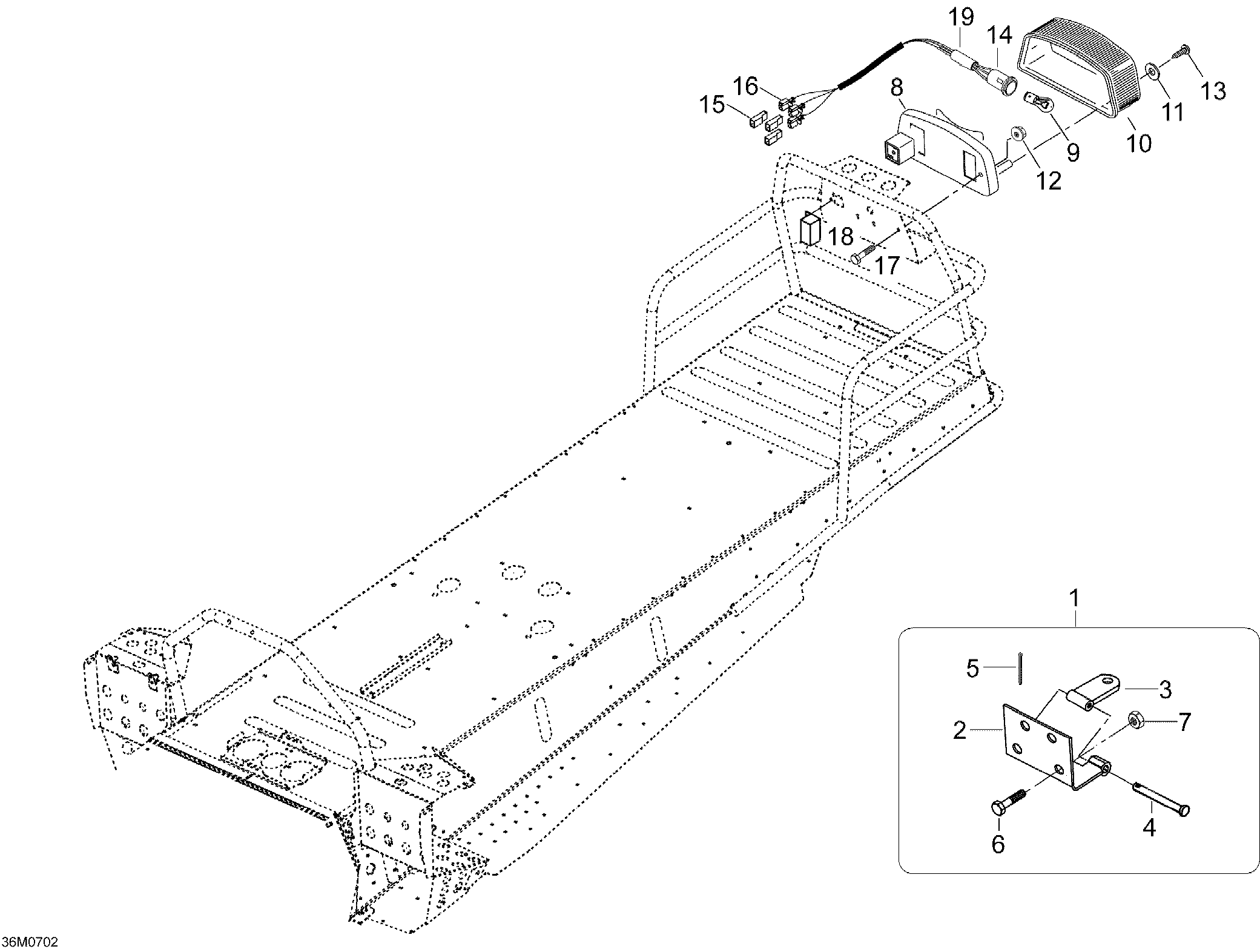

09- Luggage Rack для BRP Ski-Doo Skandic WT 550F - 2007
-
№АртикулНазвание
-
2M5344151 PlatePlate
-
3M548745 Hitch PlateHitch Plate
-
4560309200 Pin-RetainerPin-Retainer
-
5M41031 PinPin
-
6M40336 Screw M8 X 20Screw M8 X 20
-
7232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
8510004061 Light HousingLight Housing
-
9410504100 Tail Light BulbTail Light Bulb
-
10414513700 LensLens
-
11414516400 WasherWasher
-
12M33200 Nut M6Nut M6
-
13209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
14515175852 Adapter. Includes 14 to 16Adapter. Includes 14 to 16
-
15M42178 Female TerminalFemale Terminal
-
16M42179 Female HousingFemale Housing
-
17207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
18M5345713 AdaptorAdaptor
-
19M39023 HousingHousing
