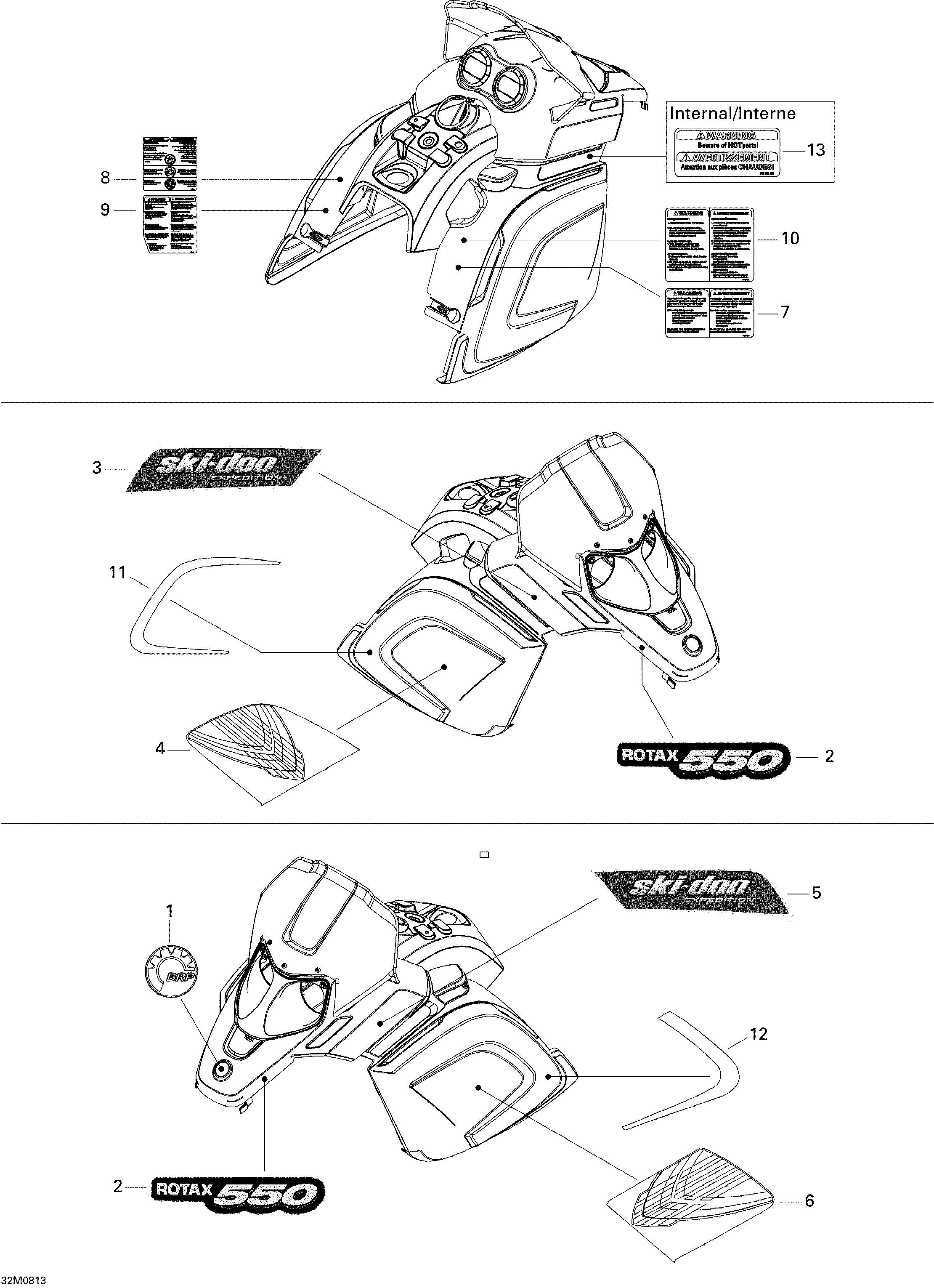

09- Decals для BRP Ski-Doo Expedition Sport 550F - 2008
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2516003405 Hood Decal, Rotax 550Hood Decal, Rotax 550
-
3516003408 RH Upper Side DecalRH Upper Side Decal
-
4516003199 RH Side DecalRH Side Decal
-
5516003407 LH Upper Side DecalLH Upper Side Decal
-
6516003267 LH Side DecalLH Side Decal
-
7516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
8516002908 Security Label, GeneralSecurity Label, General
-
9516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
10516003024 Security Label, StartingSecurity Label, Starting
-
11516003275 RH External Side DecalRH External Side Decal
-
12516003276 LH External Side DecalLH External Side Decal
-
13516002965 Security Label, Hot PartsSecurity Label, Hot Parts
