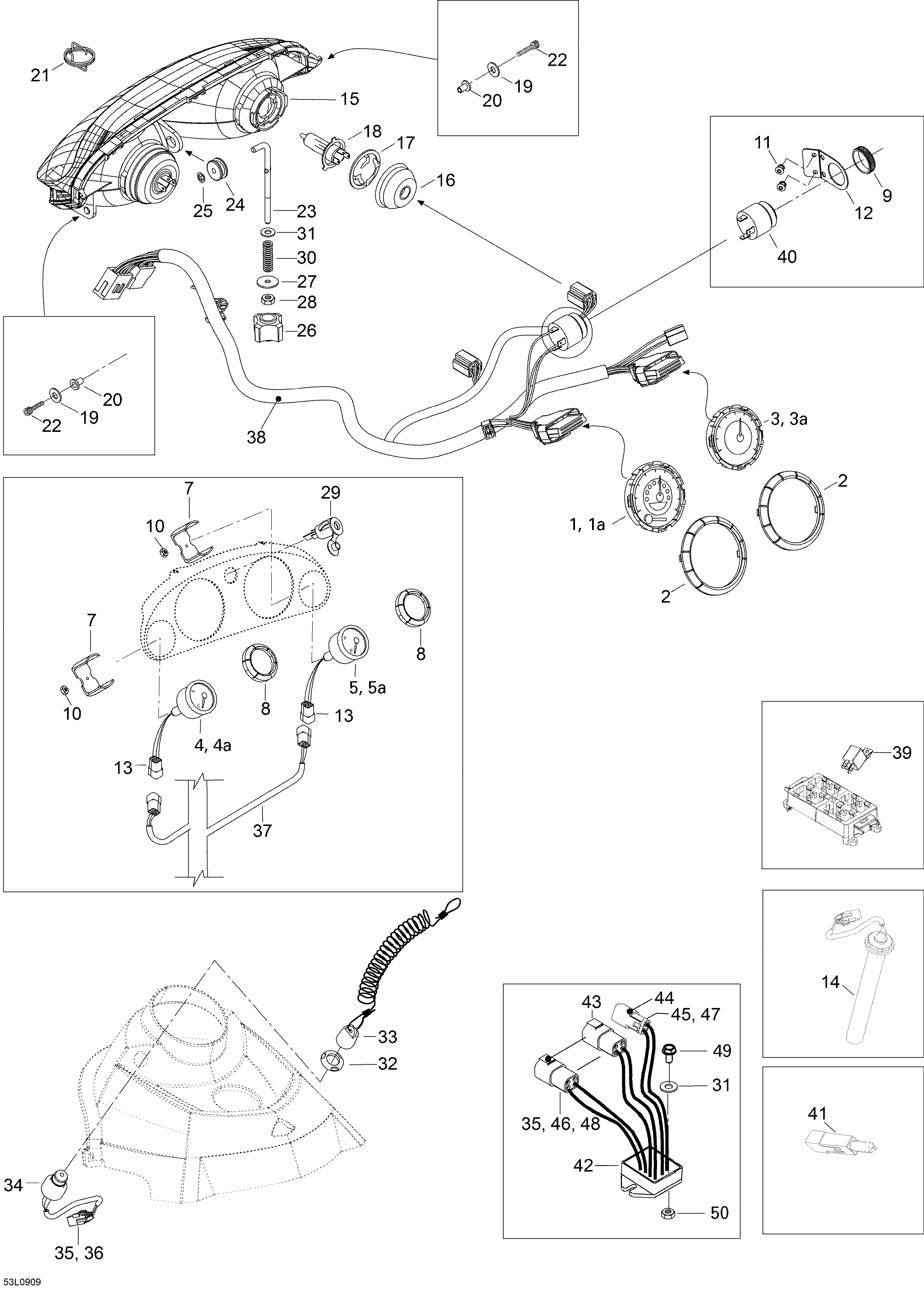

10- Electrical Accessories для BRP Ski-Doo Expedition TUV V800 - 2008
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
1a415129319 LensLens
-
2515176242 Gauge RingGauge Ring
-
3515176478 TachometerTachometer
-
3a415129320 LensLens
-
4515176214 Temperature GaugeTemperature Gauge
-
4a415128974 Gauge BulbGauge Bulb
-
5515176215 Fuel GaugeFuel Gauge
-
5a415128974 Gauge BulbGauge Bulb
-
7515176235 Case HolderCase Holder
-
8515176216 Ring GaugeRing Gauge
-
9414805101 Plastic NutPlastic Nut
-
10515176236 Lock NutLock Nut
-
11M36005 RivetRivet
-
12M5447941 HolderHolder
-
13605642628 ConnectorConnector
-
14605354909 Fuel SensorFuel Sensor
-
15515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
16515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
17515176385 Bulb HolderBulb Holder
-
18515175911 CoverCover
-
19M20008 Washer 5 mmWasher 5 mm
-
20250100018 Nut M5Nut M5
-
21M5447238 SpringSpring
-
23605450023 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26515175548 HandleHandle
-
27M20038 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29605352915 Power outlet kit (Revo)Power outlet kit (Revo)
-
30415100600 SpringSpring
-
31234061410 Flat Washer 6 mmFlat Washer 6 mm
-
32278000508 Safety Switch NutSafety Switch Nut
-
33515176461 DESS CapDESS Cap
-
34515176815 Dess SwitchDess Switch
-
35515175232 Male TerminalMale Terminal
-
36515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
37605354914 Harness Ass'yHarness Ass'y
-
38605355923 Harness Ass'yHarness Ass'y
-
39410113604 RelayRelay
-
40515176035 HornHorn
-
41605355837 CapacitorCapacitor
-
42515176243 Voltage RegulatorVoltage Regulator
-
43278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
44278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
45515175568 Male TerminalMale Terminal
-
46278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
47278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
48293000052 Sealing CapSealing Cap
-
49207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
50232561414 Elastic Stop Nut M6Elastic Stop Nut M6
