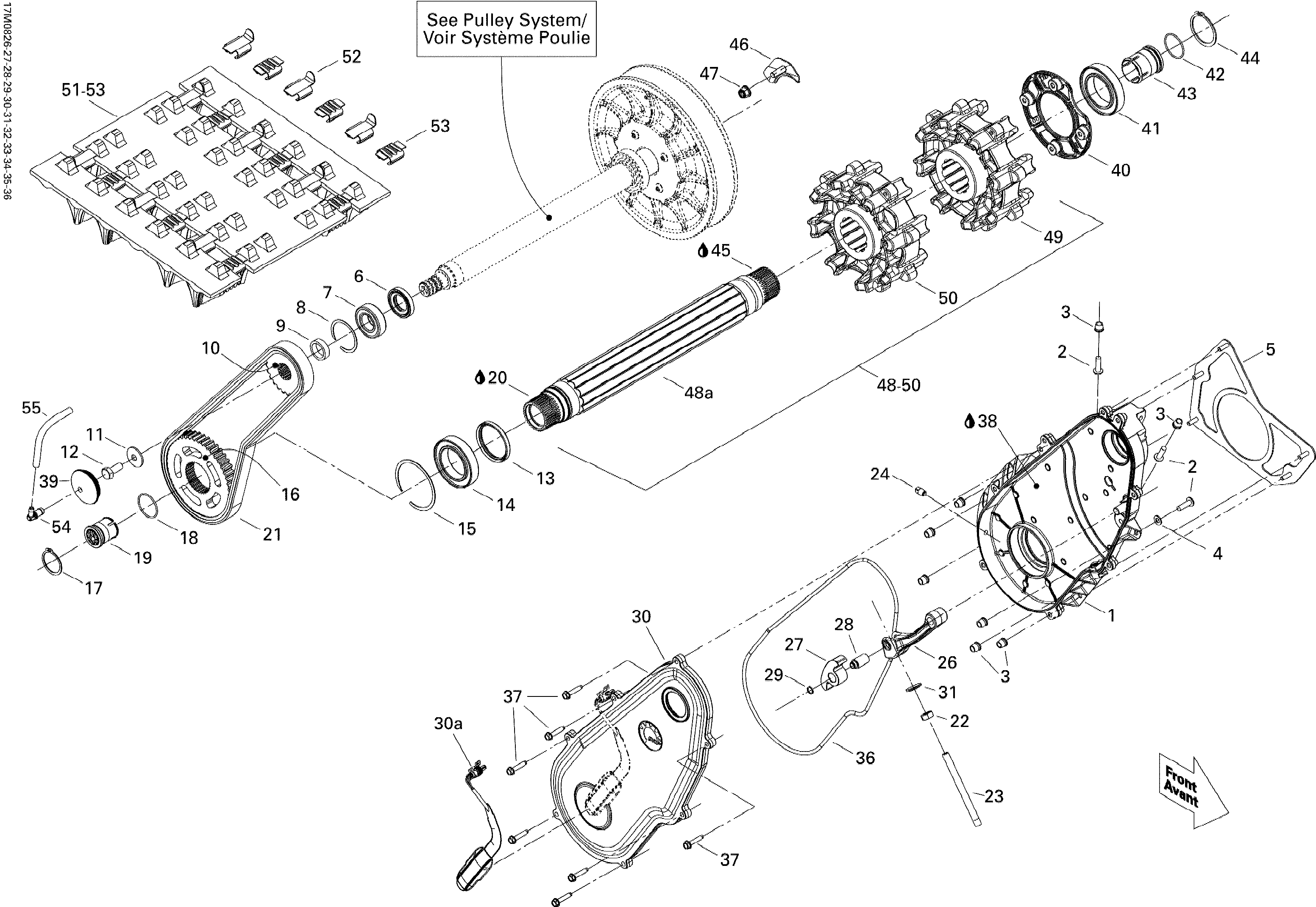

05- Drive System для BRP Ski-Doo GSX LTD 800R - 2008
-
№АртикулНазвание
-
1504152684 Chain CaseChain Case
-
2207662034 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4234061410 Flat Washer 6 mmFlat Washer 6 mm
-
5518325816 PlatePlate
-
6415049300 SealSeal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 ShimShim
-
10504084300 25 Teeth Sprocket, Large25 Teeth Sprocket, Large
-
11504152607 Spring WasherSpring Washer
-
12207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
13504152571 SealSeal
-
14504152573 Ball BearingBall Bearing
-
15504152582 CirclipCirclip
-
16504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
17504152572 CirclipCirclip
-
18293300122 O RingO Ring
-
19504152619 CapCap
-
20219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
21504152629 Drive Chaine 104 LinksDrive Chaine 104 Links
-
22232006414 Hex. Nut M10Hex. Nut M10
-
23504152602 Adjusting ScrewAdjusting Screw
-
24504152636 Magnetic PlugMagnetic Plug
-
26504152685 Chain TensionerChain Tensioner
-
27504152739 Chain SliderChain Slider
-
28504152594 Tensioner AxleTensioner Axle
-
29504152282 CirclipCirclip
-
30504152763 Cover Ass'yCover Ass'y
-
30a504152732 Cover SensorCover Sensor
-
31250200100 Bonded WasherBonded Washer
-
36293300130 O RingO Ring
-
37210263030 Hex. Forming Screw M6Hex. Forming Screw M6
-
38413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
39504152796 Filler CapFiller Cap
-
40507032437 Bearing HousingBearing Housing
-
41293350059 Ball BearingBall Bearing
-
42293300122 O RingO Ring
-
43504152619 CapCap
-
44504152572 CirclipCirclip
-
45219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
46504152633 Bearing HousingBearing Housing
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
48504152845 Axle Drive Ass'y. Includes 48 to 50Axle Drive Ass'y. Includes 48 to 50
-
51504152760 Track Ass'y 15X120X1.0. Includes 51 to 53Track Ass'y 15X120X1.0. Includes 51 to 53
-
52415129222 GuideGuide
-
53504152652 CleatCleat
-
54414580700 Elbow Male ConnectorElbow Male Connector
-
55415080200 Polyurethane HosePolyurethane Hose
