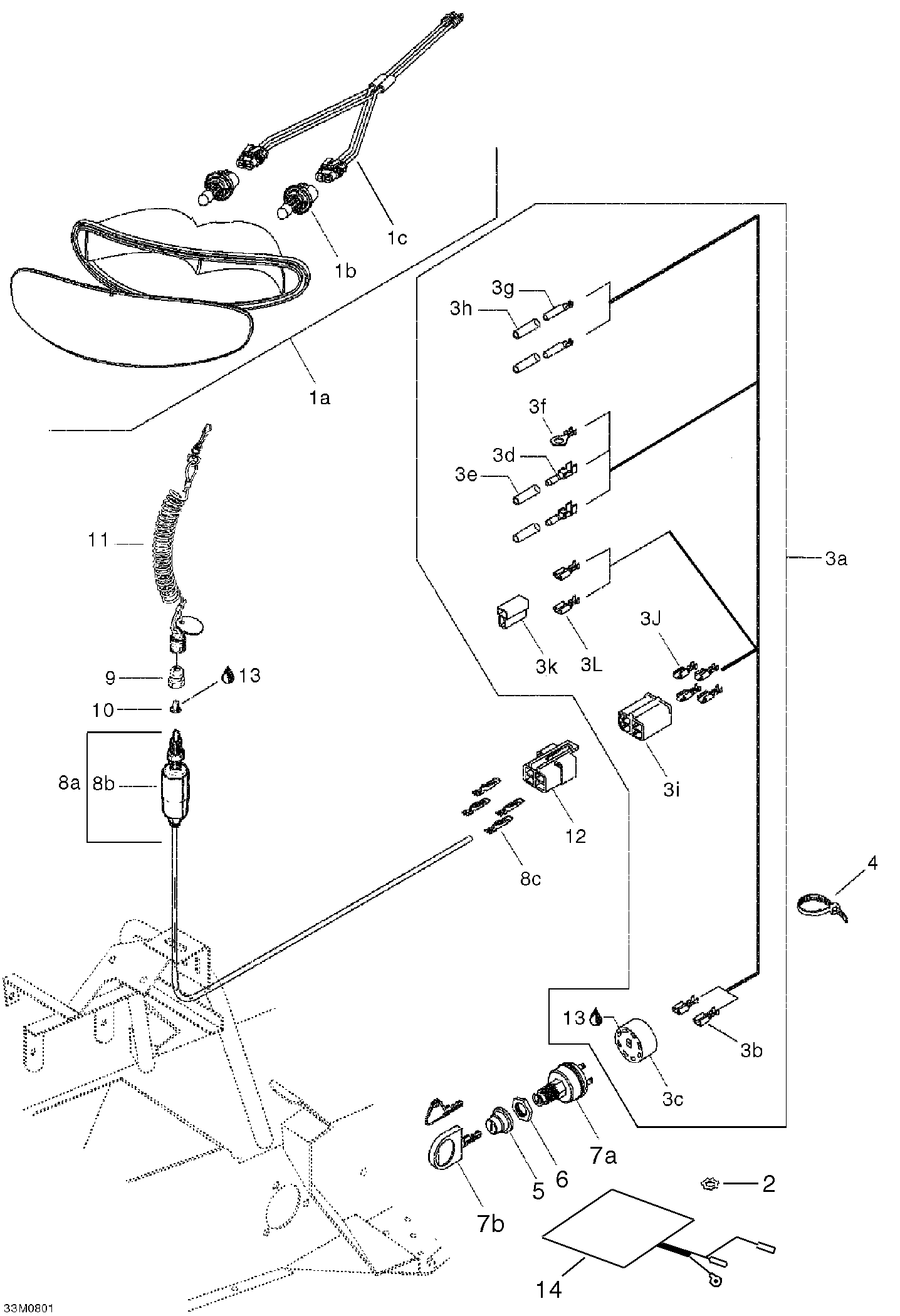

10- Electrical System для BRP Ski-Doo Mini Z - 2008
-
№АртикулНазвание
-
1a515175746 Headlamp. Includes 1 to 3Headlamp. Includes 1 to 3
-
1b415128619 BulbBulb
-
1c415128618 Head Lamp HarnessHead Lamp Harness
-
2234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
3a515176611 Harness Ass'y. Includes 3a to 3LHarness Ass'y. Includes 3a to 3L
-
3b409205300 Female TerminalFemale Terminal
-
3c572150700 Female Terminal Housing, 9 CircuitsFemale Terminal Housing, 9 Circuits
-
3d278000230 Male TerminalMale Terminal
-
3e278001008 Insulated SheathInsulated Sheath
-
3f278000992 Open BarrelOpen Barrel
-
3g290964068 Female TerminalFemale Terminal
-
3h290964072 Insulating SheathInsulating Sheath
-
3i409204900 Female HousingFemale Housing
-
3j515175724 Female TerminalFemale Terminal
-
3k515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
3L515175231 Female TerminalFemale Terminal
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5570013700 Switch BootSwitch Boot
-
6410112100 Face NutFace Nut
-
7A410113601 Ignition SwitchIgnition Switch
-
8a515176525 Switch Ass'y. Includes 8a to 8cSwitch Ass'y. Includes 8a to 8c
-
8b515175571 SwitchSwitch
-
8c409210000 Male TerminalMale Terminal
-
9515145900 Switch NutSwitch Nut
-
10570151100 Plunger CapPlunger Cap
-
11515176464 Cap Ass'yCap Ass'y
-
12409209300 Male HousingMale Housing
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
14515176489 Heated FilmHeated Film
