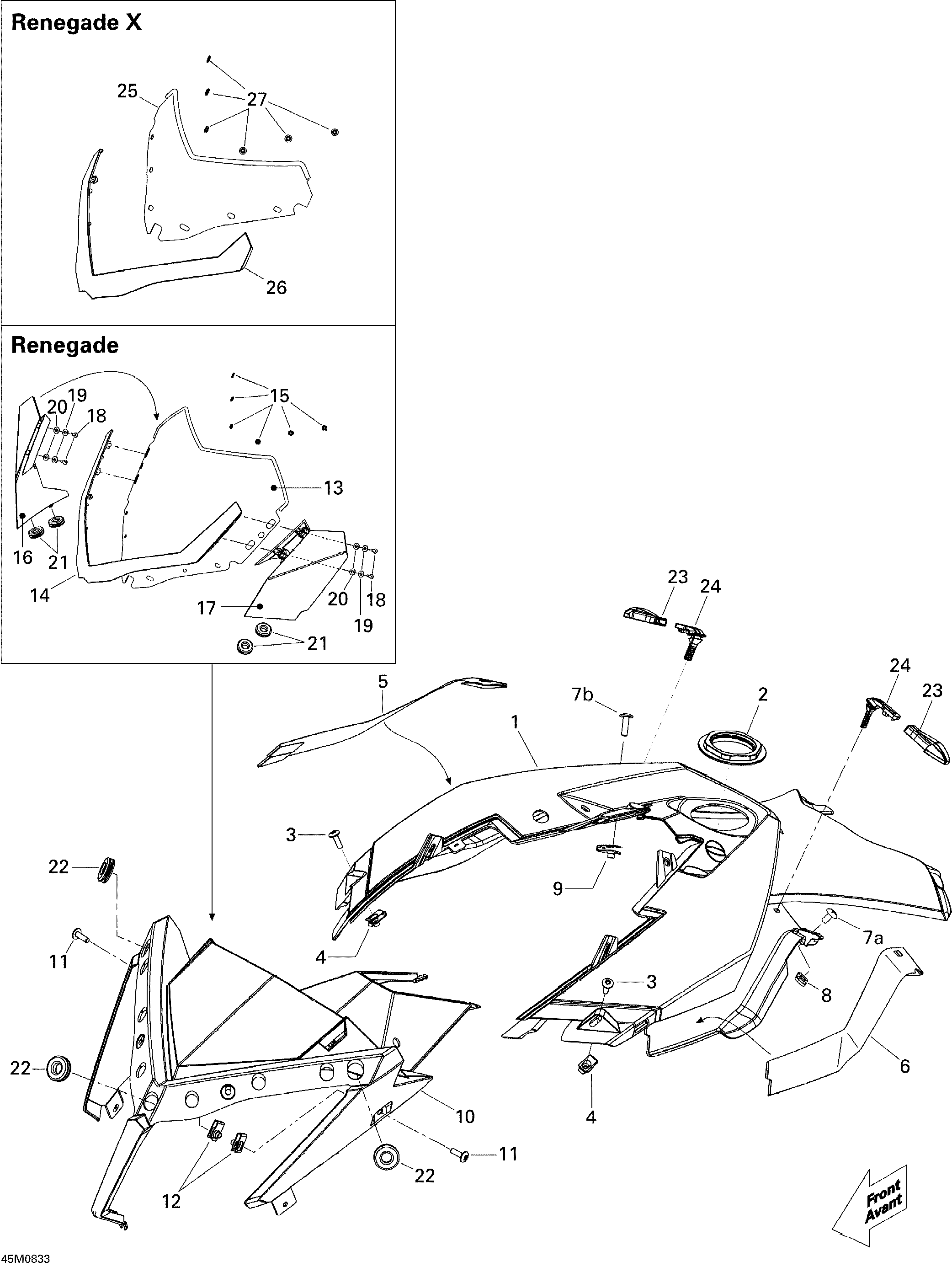

09- Windshield And Console 600HO REN для BRP Ski-Doo MX Z RENEGADE 600 HO SDI - 2008
-
№АртикулНазвание
-
1517303920 Console, Yellow. 600HO SDI, RenegadeConsole, Yellow. 600HO SDI, Renegade
-
1517303924 Deep Black Console. 600HO SDI, RenegadeDeep Black Console. 600HO SDI, Renegade
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13517303608 Medium Windshield. RenegadeMedium Windshield. Renegade
-
14517303607 Windshield Support. RenegadeWindshield Support. Renegade
-
15732610072 Push Nut. RenegadePush Nut. Renegade
-
16517303604 RH Air Deflector. RenegadeRH Air Deflector. Renegade
-
17517303605 LH Air Deflector. RenegadeLH Air Deflector. Renegade
-
18250000146 Truss Head Torx Screw K50 X 16. RenegadeTruss Head Torx Screw K50 X 16. Renegade
-
19250200025 Washer M5. RenegadeWasher M5. Renegade
-
20250200024 Rubber Washer 5 mm. RenegadeRubber Washer 5 mm. Renegade
-
21517303756 Grommet. RenegadeGrommet. Renegade
-
22517303756 GrommetGrommet
-
23517303980 End Piece, Grey VolcanoEnd Piece, Grey Volcano
-
23517303978 End Piece, YellowEnd Piece, Yellow
-
24517303981 Panel LatchPanel Latch
