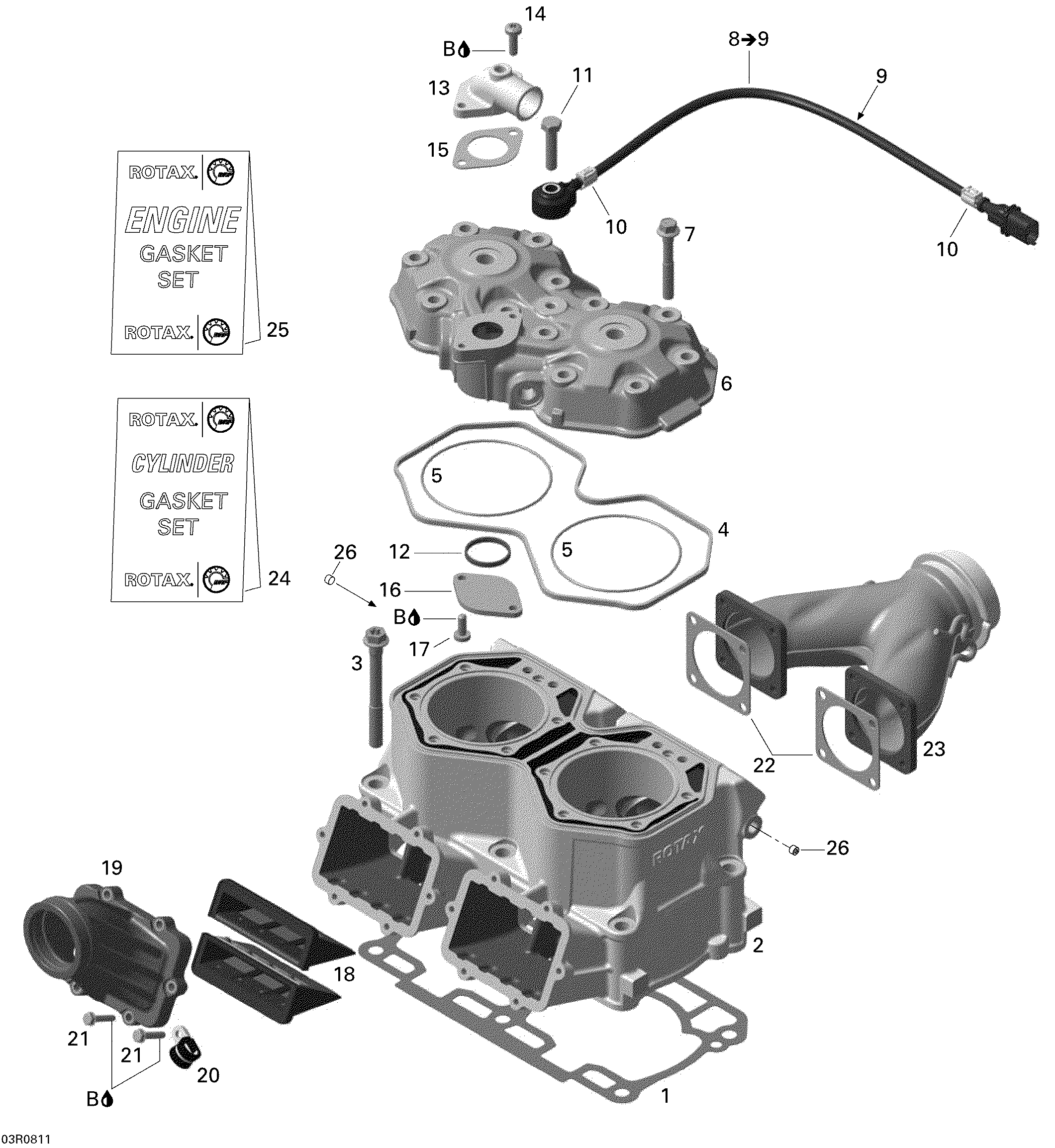

01- Cylinder and Cylinder Head для BRP Ski-Doo MX Z RENEGADE X 800R - 2008
-
№АртикулНазвание
-
1420430080 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420430081 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420430082 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420430083 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420623240 CylinderCylinder
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4420430040 O-RingO-Ring
-
5420931410 O-RingO-Ring
-
6420613925 Cylinder Head CoverCylinder Head Cover
-
7420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
8420664035 Knock Sensor Ass'y. Includes 8 to 10Knock Sensor Ass'y. Includes 8 to 10
-
9420460010 TubeTube
-
10420960890 ClipClip
-
11207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
12420630780 GasketGasket
-
13420922062 Bent Outlet SocketBent Outlet Socket
-
14420941256 Hex. Collar ScrewHex. Collar Screw
-
15420850338 GasketGasket
-
16420926260 CoverCover
-
17420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
18420924792 Reed Valve Ass'yReed Valve Ass'y
-
19420667470 Intake SocketIntake Socket
-
20414176000 Open ClampOpen Clamp
-
21420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
22420430480 GasketGasket
-
23420673370 Exhaust ManifoldExhaust Manifold
-
24420892475 Cylinder Gasket SetCylinder Gasket Set
-
25420892470 Engine Gasket SetEngine Gasket Set
-
26415129628 Socket Set Screw M10 x 1.25 x 10 mmSocket Set Screw M10 x 1.25 x 10 mm
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
