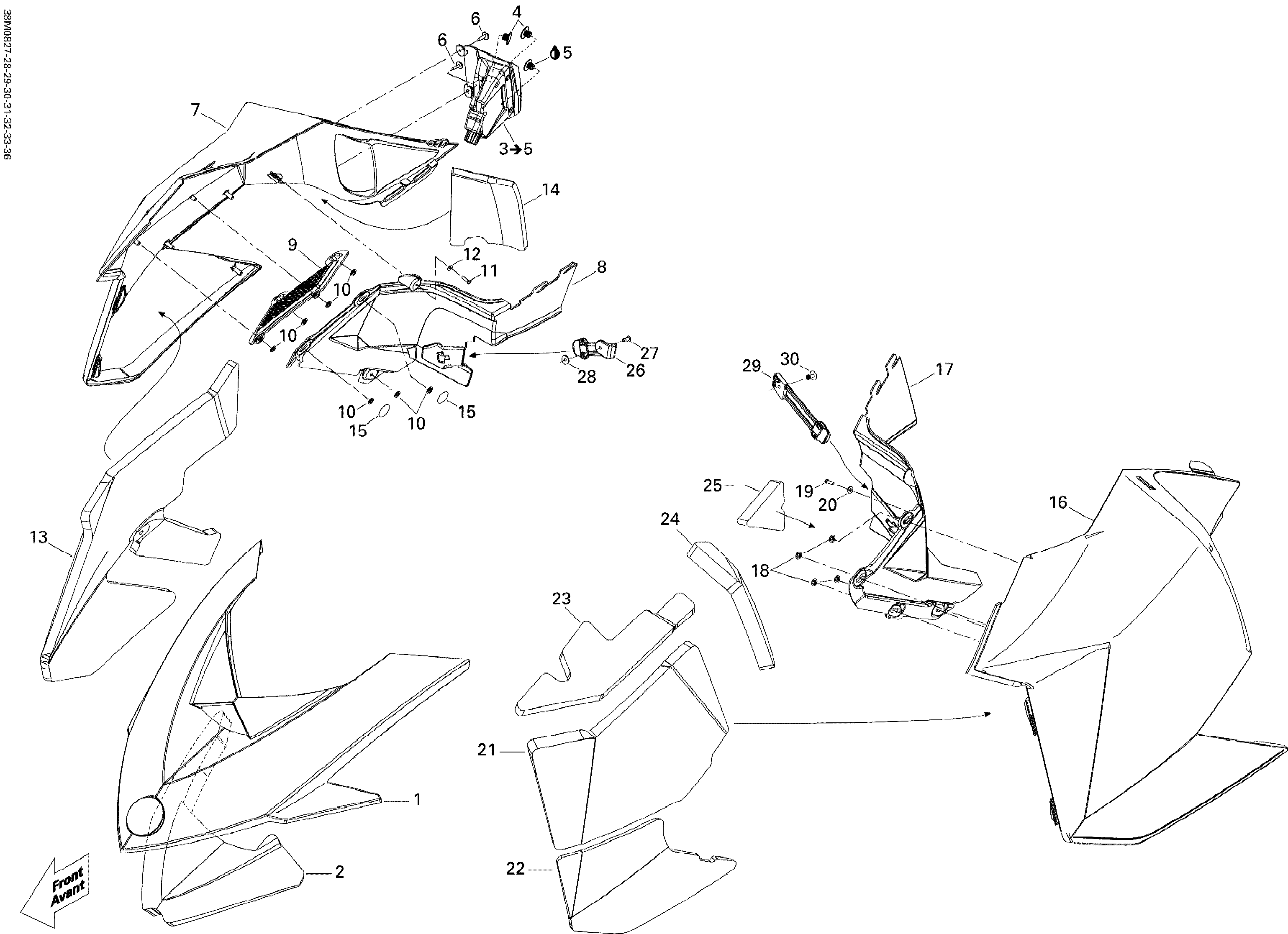

09- Hood для BRP Ski-Doo MX Z X 800R - 2008
-
№АртикулНазвание
-
1517303598 Hood, Yellow. Yellow/Yellow ModelHood, Yellow. Yellow/Yellow Model
-
1517303918 Hood, Black. Black/Lava Grey ModelHood, Black. Black/Lava Grey Model
-
2517303990 Hood FoamHood Foam
-
3517303674 RH Console. Includes 3 to 5RH Console. Includes 3 to 5
-
4275500241 Cap, BlackCap, Black
-
5413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
6250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
7517303609 RH Panel, Yellow. Yellow/Yellow ModelRH Panel, Yellow. Yellow/Yellow Model
-
7517303937 RH Panel, Volcano Grey. Black/Lava Grey ModelRH Panel, Volcano Grey. Black/Lava Grey Model
-
8517303671 RH Moulding PanelRH Moulding Panel
-
9517303622 GrillGrill
-
10732610072 Push NutPush Nut
-
11241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13517304149 RH Panel Center FoamRH Panel Center Foam
-
14517303982 RH Panel Rear FoamRH Panel Rear Foam
-
15518325560 Adhesive PatchAdhesive Patch
-
16517303610 LH Panel, Yellow. Yellow/Yellow ModelLH Panel, Yellow. Yellow/Yellow Model
-
16517303934 LH Panel, Volcano Grey. Black/Lava Grey ModelLH Panel, Volcano Grey. Black/Lava Grey Model
-
17517303673 LH Moulding PanelLH Moulding Panel
-
18732610072 Push NutPush Nut
-
19241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
20234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
21517303983 LH Panel Center FoamLH Panel Center Foam
-
22517303984 LH Panel Lower FoamLH Panel Lower Foam
-
23517303985 LH Panel Upper FoamLH Panel Upper Foam
-
24517303986 LH Panel Rear FoamLH Panel Rear Foam
-
25517303987 FoamFoam
-
26517303612 Panel LatchPanel Latch
-
27390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
28517124300 WasherWasher
-
29517303808 Panel LatchPanel Latch
-
30293150108 Pop Rivet 3/16''Pop Rivet 3/16''
