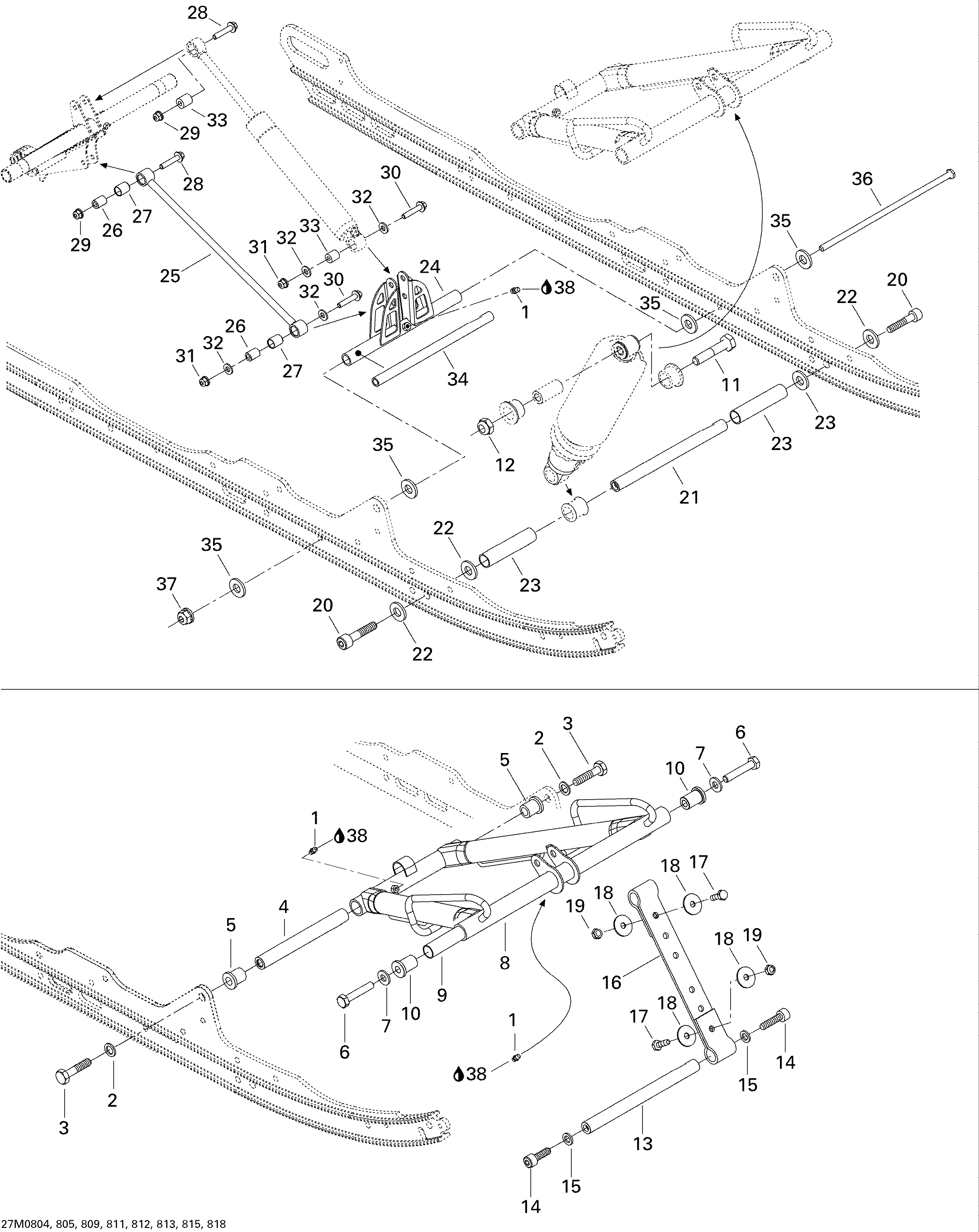

08- Front Arm для BRP Ski-Doo Skandic Tundra 300F - 2008
-
№АртикулНазвание
-
1408200700 Grease FittingGrease Fitting
-
2503189276 WasherWasher
-
3207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
7732900049 WasherWasher
-
8503191080 Front ArmFront Arm
-
9503190387 ShaftShaft
-
10503189324 CushionCushion
-
11207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
12232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
13503189562 AxleAxle
-
14205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
15503189564 WasherWasher
-
16503190782 Stopper StrapStopper Strap
-
17207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
18224081301 Flat WasherFlat Washer
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
21503189272 Center Shock ShaftCenter Shock Shaft
-
22503189276 WasherWasher
-
23503191259 Center BushingCenter Bushing
-
24503189545 Pivot Arm, BlackPivot Arm, Black
-
25503191489 Throttle RodThrottle Rod
-
26503189133 Rod AxleRod Axle
-
27503189625 CushionCushion
-
28207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
29250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
30207084044 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
31232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
32503191564 WasherWasher
-
33414936000 CushionCushion
-
34503189156 Pivot Arm AxlePivot Arm Axle
-
35503189157 WasherWasher
-
36732601198 Long Bolt M8Long Bolt M8
-
37250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
38219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
