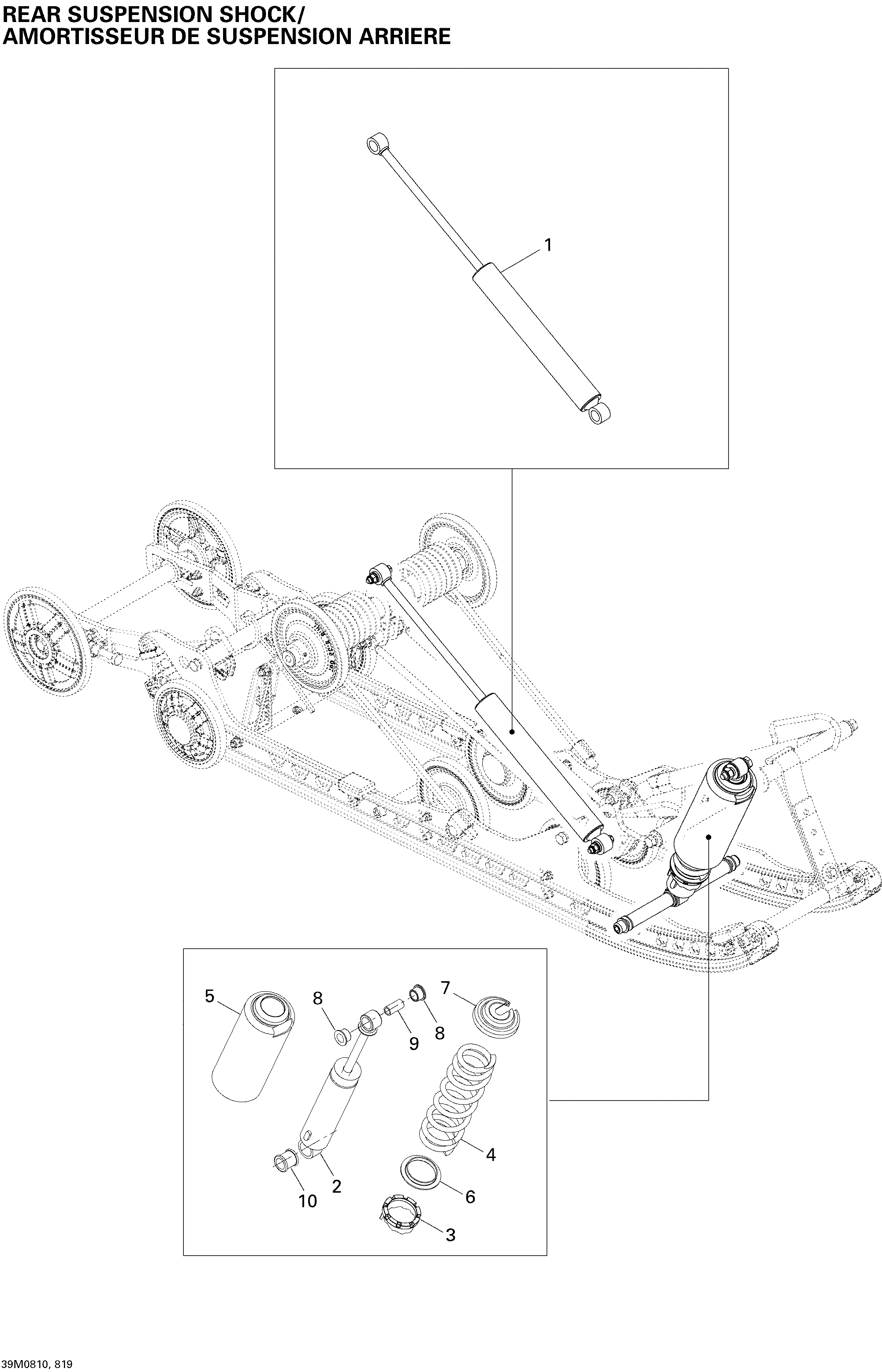

08- Rear Suspension Shocks для BRP Ski-Doo Skandic Tundra LT V-800 - 2008
-
№АртикулНазвание
-
1503191596 Rear ShockRear Shock
-
2503191592 Center ShockCenter Shock
-
3503183700 Cam 45°Cam 45°
-
4503189659 SpringSpring
-
5503191126 ProtectorProtector
-
6503187500 Spring GuideSpring Guide
-
7503140600 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
