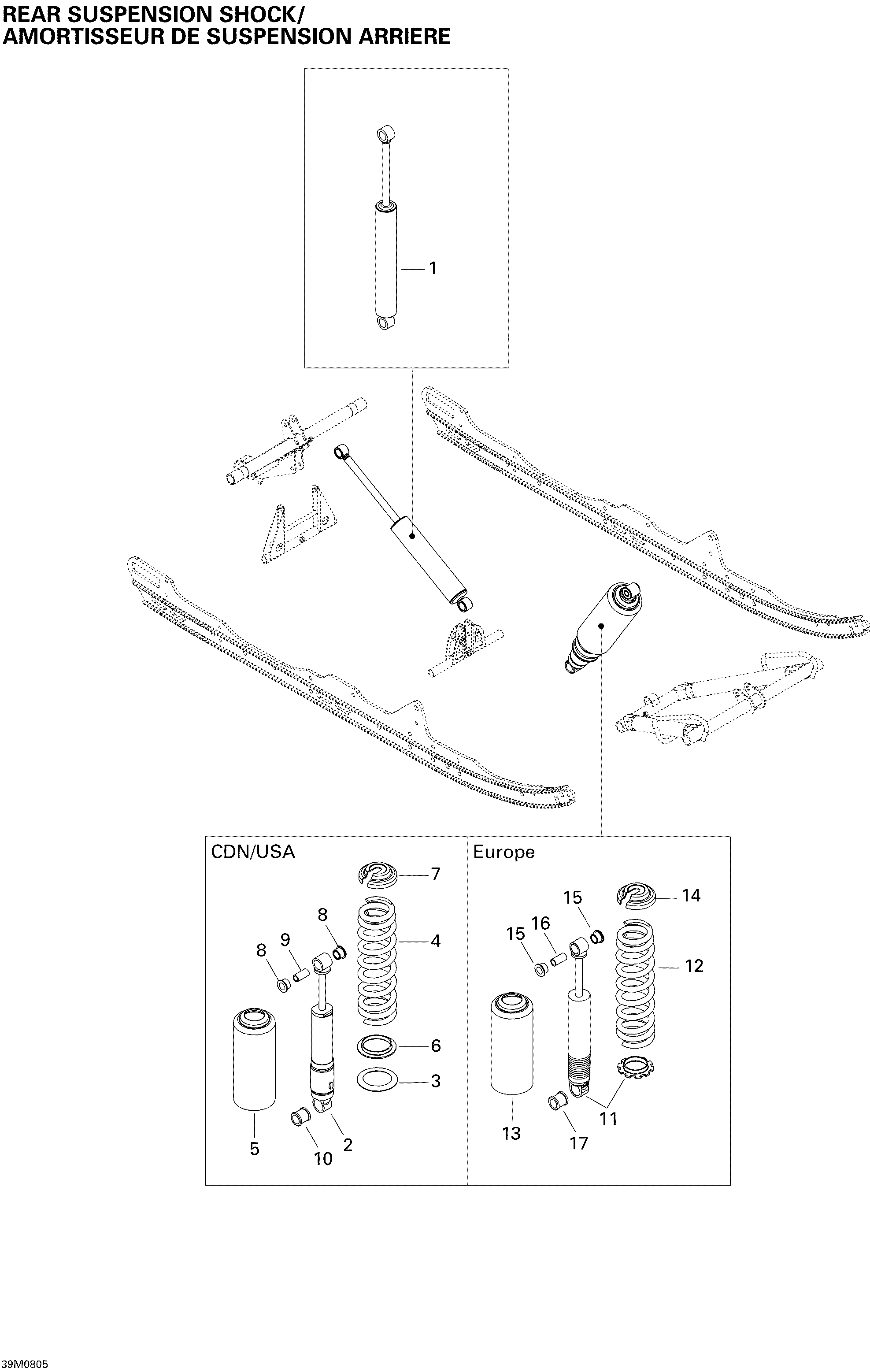

08- Rear Suspension Shocks для BRP Ski-Doo Summit 550F - 2008
-
№АртикулНазвание
-
1503190977 Rear Shock. EUROPERear Shock. EUROPE
-
1503191466 Rear Shock. CDN/USARear Shock. CDN/USA
-
2503191462 Center Shock. CDN/USACenter Shock. CDN/USA
-
3505070401 Washer. CDN/USAWasher. CDN/USA
-
4503190546 Spring. CDN/USASpring. CDN/USA
-
5503188930 Protector. CDN/USAProtector. CDN/USA
-
6503187500 Spring Guide. CDN/USASpring Guide. CDN/USA
-
7503140600 Spring Stopper. CDN/USASpring Stopper. CDN/USA
-
8503189117 Cushion. CDN/USACushion. CDN/USA
-
9503189282 Bushing. CDN/USABushing. CDN/USA
-
10503189271 Cushion. CDN/USACushion. CDN/USA
-
11503190662 Center Shock. EUROPECenter Shock. EUROPE
-
12503190546 Spring. EUROPESpring. EUROPE
-
13503188930 Protector. EUROPEProtector. EUROPE
-
14503140600 Spring Stopper. EUROPESpring Stopper. EUROPE
-
15503189117 Cushion. EUROPECushion. EUROPE
-
16503189282 Bushing. EUROPEBushing. EUROPE
-
17503189271 Cushion. EUROPECushion. EUROPE
