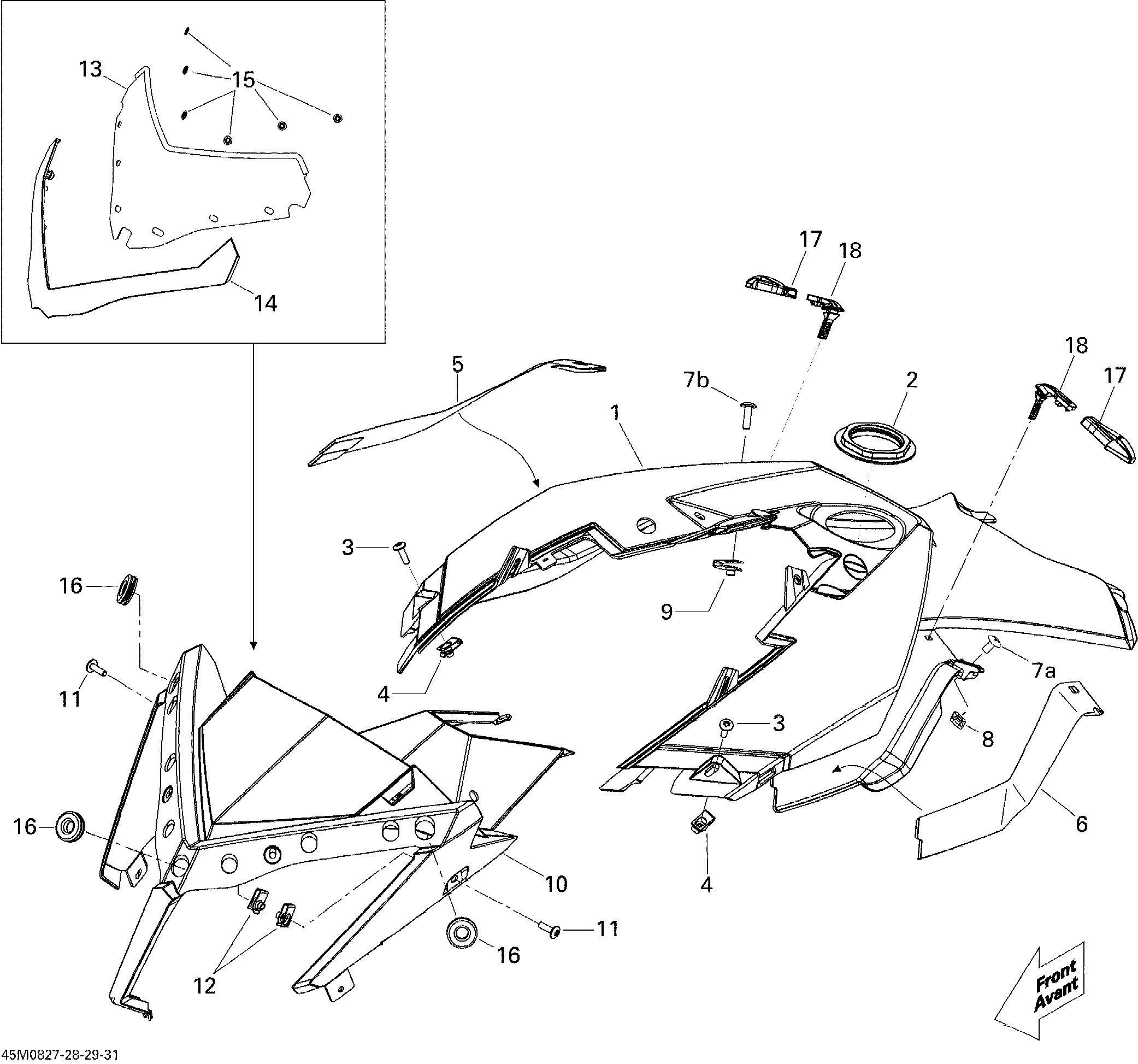

09- Windshield And Console для BRP Ski-Doo Summit X 800R - 2008
-
№АртикулНазвание
-
1517303759 Console, YellowConsole, Yellow
-
1517303921 Console, BlackConsole, Black
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13517303621 WindshieldWindshield
-
14517303757 Windshield SupportWindshield Support
-
15732610072 Push NutPush Nut
-
16517303756 GrommetGrommet
-
17517303980 End Piece, Grey VolcanoEnd Piece, Grey Volcano
-
18517303981 Panel LatchPanel Latch
