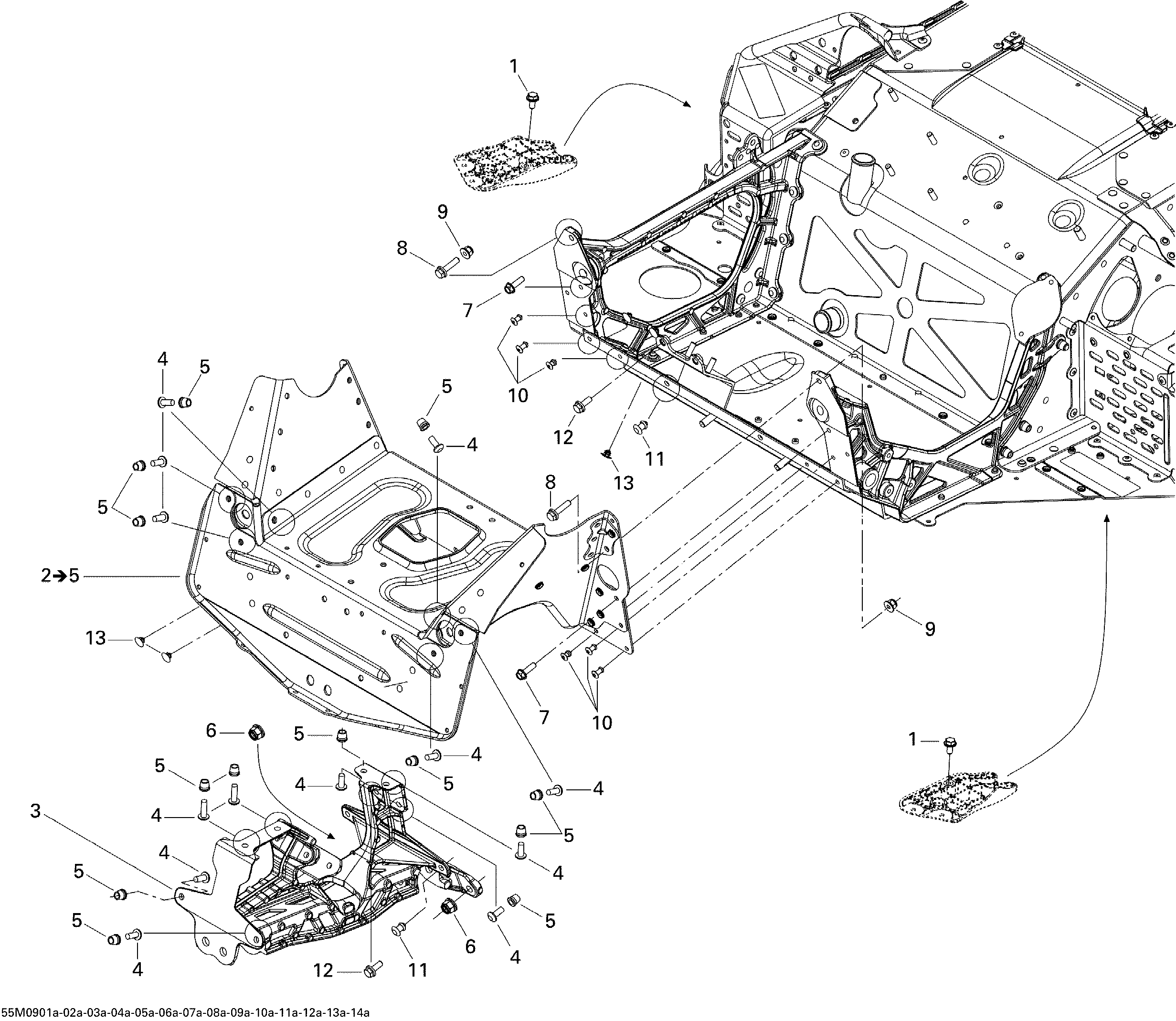

09- Frame and Components 1 для BRP Ski-Doo GSX Limited 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2518325924 S-Module. Includes 2 to 5S-Module. Includes 2 to 5
-
3518325925 Front Suspension SupportFront Suspension Support
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10293150144 Stavex RivetStavex Rivet
-
11293150147 Hemlock RivetHemlock Rivet
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
