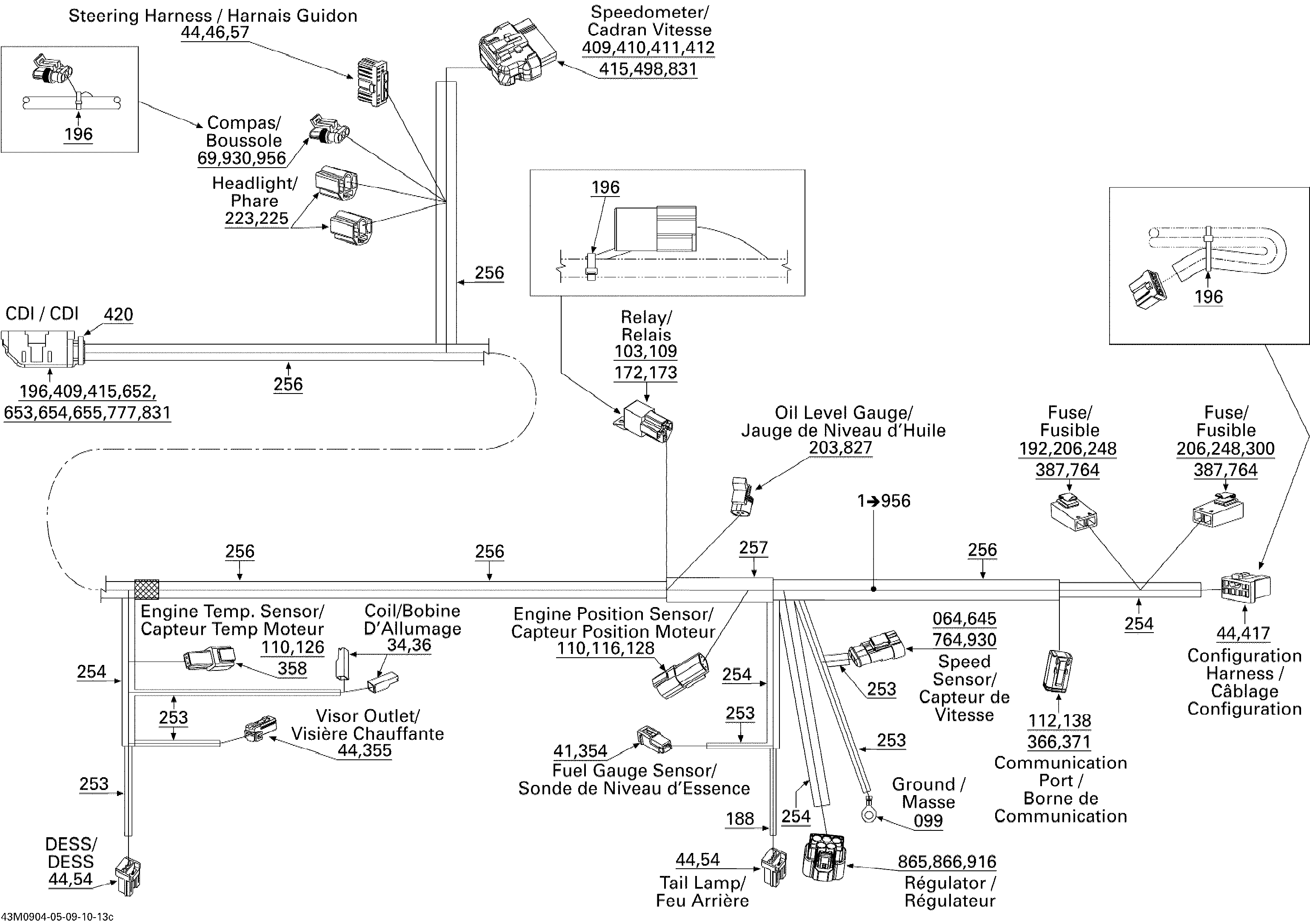

10- Electrical Harness для BRP Ski-Doo GSX Sport 500SS - 2009
-
№АртикулНазвание
-
1515176714 Main Harness Ass'y. Includes 1 to 956Main Harness Ass'y. Includes 1 to 956
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
41515175232 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
57515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
64710000568 HousingHousing
-
69409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
99278000992 Open BarrelOpen Barrel
-
103410113200 RelayRelay
-
109409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
116278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
173561503100 Female TerminalFemale Terminal
-
188409902000 Tubing 12 mmTubing 12 mm
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
206409004200 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
248409004000 Fuse HolderFuse Holder
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
300278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
354515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
417515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
498710000399 Female HousingFemale Housing
-
645515176164 Male TerminalMale Terminal
-
652515176221 Female HousingFemale Housing
-
653515176222 Wire SealWire Seal
-
654515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
655515176224 Terminal SupportTerminal Support
-
764710000992 ClipClip
-
777515176485 Protection CapProtection Cap
-
827710001119 Female TerminalFemale Terminal
-
831710001131 Female TerminalFemale Terminal
-
865515176530 ConnectorConnector
-
866515176531 TerminalTerminal
-
916515176594 SealSeal
-
930515176621 Wire SealWire Seal
-
956278002307 Female TerminalFemale Terminal
