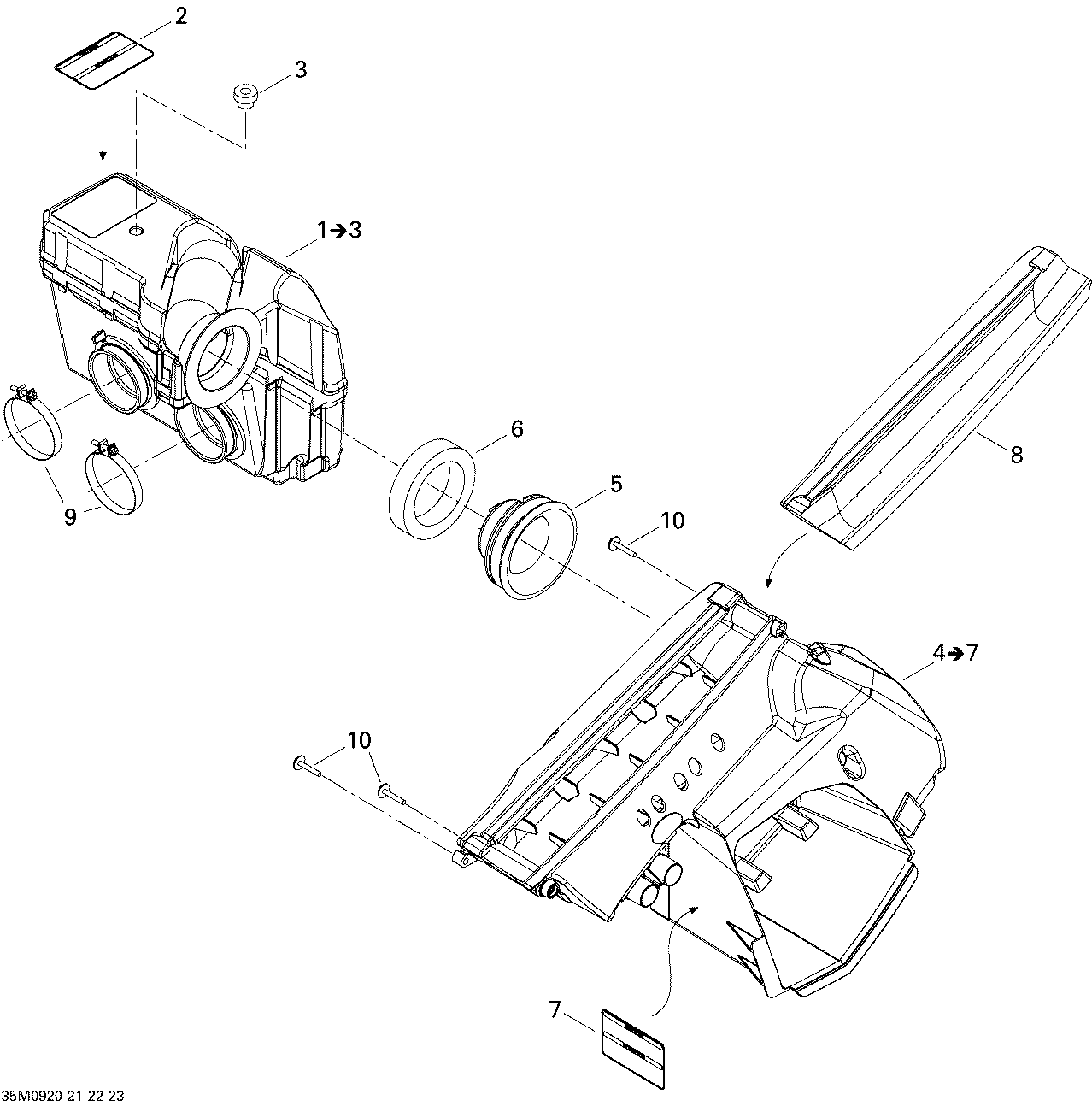

02- Air Intake System для BRP Ski-Doo MX Z 550X - 2009
-
№АртикулНазвание
-
1508000383 Primary Chamber Ass'y. Includes 1 to 3Primary Chamber Ass'y. Includes 1 to 3
-
2516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
3513032908 GrommetGrommet
-
4508000376 Secondary Chamber Ass'y. Includes 4 to 7Secondary Chamber Ass'y. Includes 4 to 7
-
5508000240 GuideGuide
-
6508000199 Outer FoamOuter Foam
-
7516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
8508000394 Air FilterAir Filter
-
9508000344 Gemi ClampGemi Clamp
-
10250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
