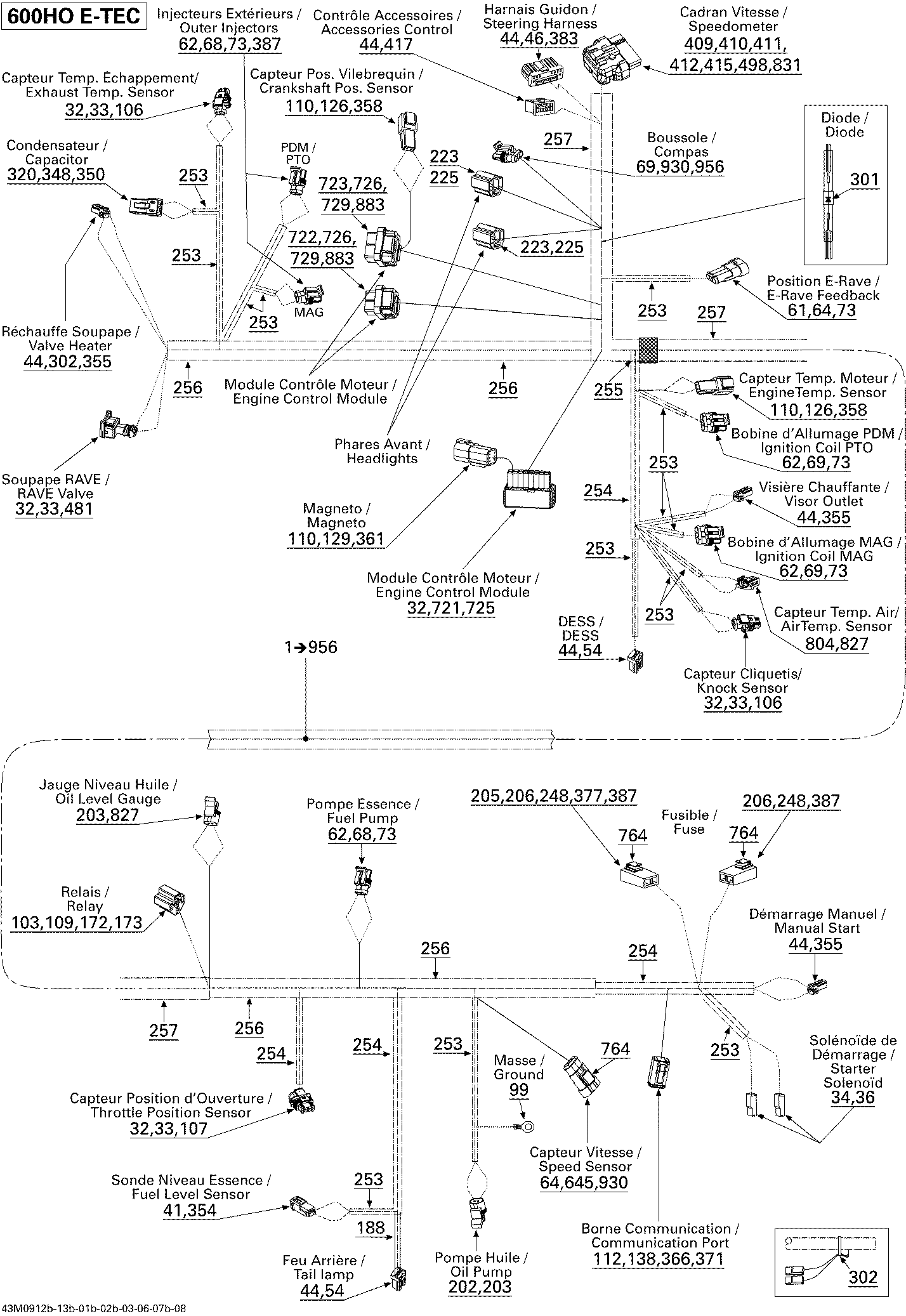

10- Electrical Harness 600 HO для BRP Ski-Doo MX Z Adrenaline 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1515176715 Wiring Harness Ass'y. Includes 1 to 956Wiring Harness Ass'y. Includes 1 to 956
-
32278000998 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
41515175232 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
61409012900 Male TerminalMale Terminal
-
62278001014 Female TerminalFemale Terminal
-
64710000568 HousingHousing
-
68409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
69409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
73278001013 Wire SealWire Seal
-
99278000992 Open BarrelOpen Barrel
-
103410113200 RelayRelay
-
106278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
107278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
109409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
173561503100 Female TerminalFemale Terminal
-
188409902000 Tubing 12 mmTubing 12 mm
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
205409011600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
248409004000 Fuse HolderFuse Holder
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
301409012700 DiodeDiode
-
302293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
354515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
361515175668 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
377278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
417515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
481415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
498710000399 Female HousingFemale Housing
-
645515176164 Male TerminalMale Terminal
-
721515176340 Female Terminal Housing, 16 CircuitsFemale Terminal Housing, 16 Circuits
-
722515176341 Female Terminal Housing, 26 CircuitsFemale Terminal Housing, 26 Circuits
-
723515176342 Female Terminal Housing, 34 CircuitsFemale Terminal Housing, 34 Circuits
-
725515176344 Wire SealWire Seal
-
726515176345 PlugPlug
-
729515176348 Female TerminalFemale Terminal
-
764710000992 ClipClip
-
804515176523 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
827710001119 Female TerminalFemale Terminal
-
831710001131 Female TerminalFemale Terminal
-
883515176541 Female TerminalFemale Terminal
-
930515176621 Wire SealWire Seal
-
956278002307 Female TerminalFemale Terminal
