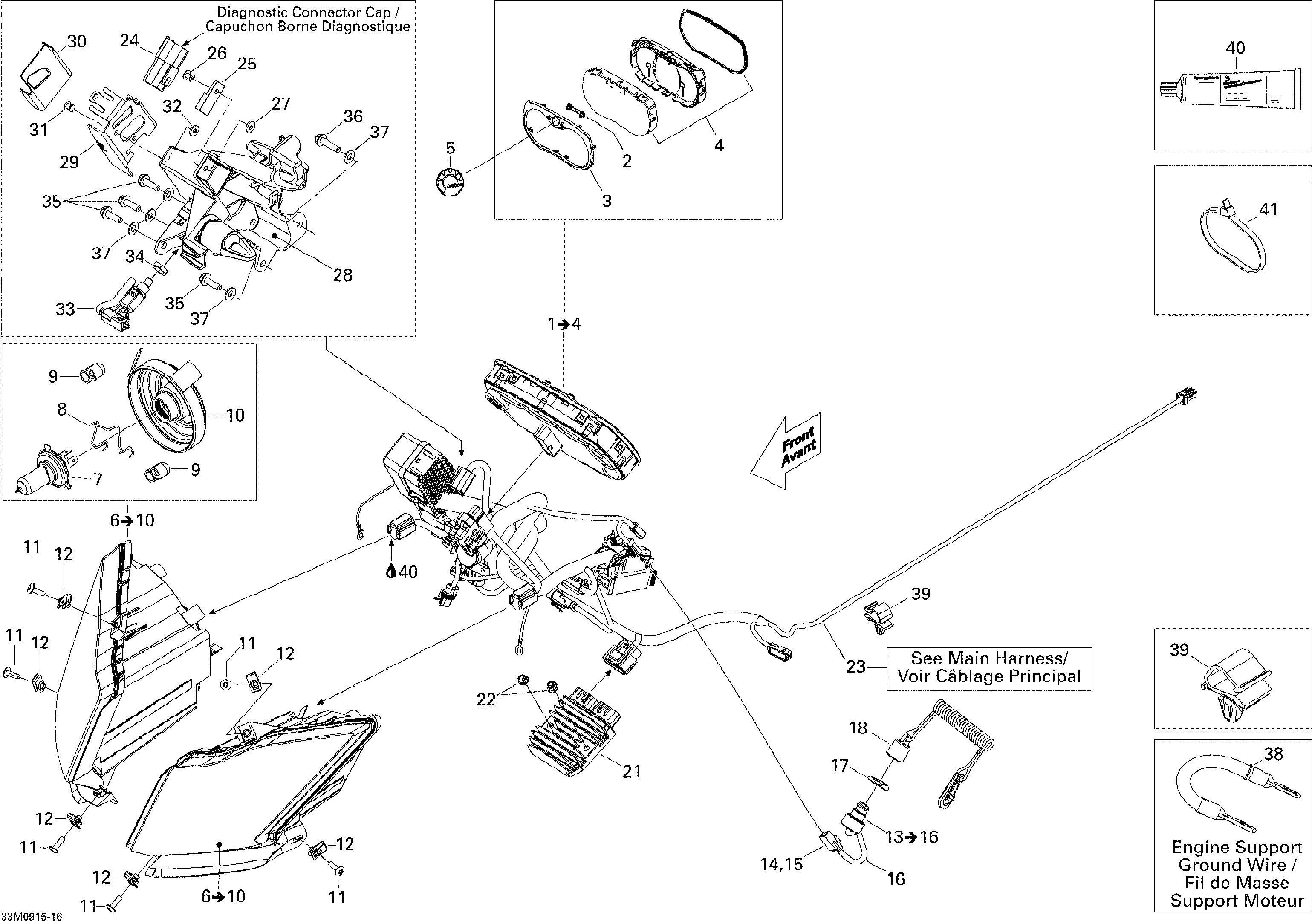

10- Electrical System Renegade для BRP Ski-Doo MX Z Renegade 1200 4-TEC - 2009
-
№АртикулНазвание
-
1515176753 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
21278002021 RegulatorRegulator
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23515176702 Main Harness Ass'yMain Harness Ass'y
-
24515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
25270000141 ClipClip
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27234051410 Flat Washer M5Flat Washer M5
-
28515176544 PlatePlate
-
29515176514 Fuse HolderFuse Holder
-
30515176637 ProtectorProtector
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32234051410 Flat Washer M5Flat Washer M5
-
33515176472 Switch Ass'ySwitch Ass'y
-
34250000373 Brass NutBrass Nut
-
35210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
37224061121 Flat WasherFlat Washer
-
38515176358 Ground WireGround Wire
-
39515176795 clipclip
-
40293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
