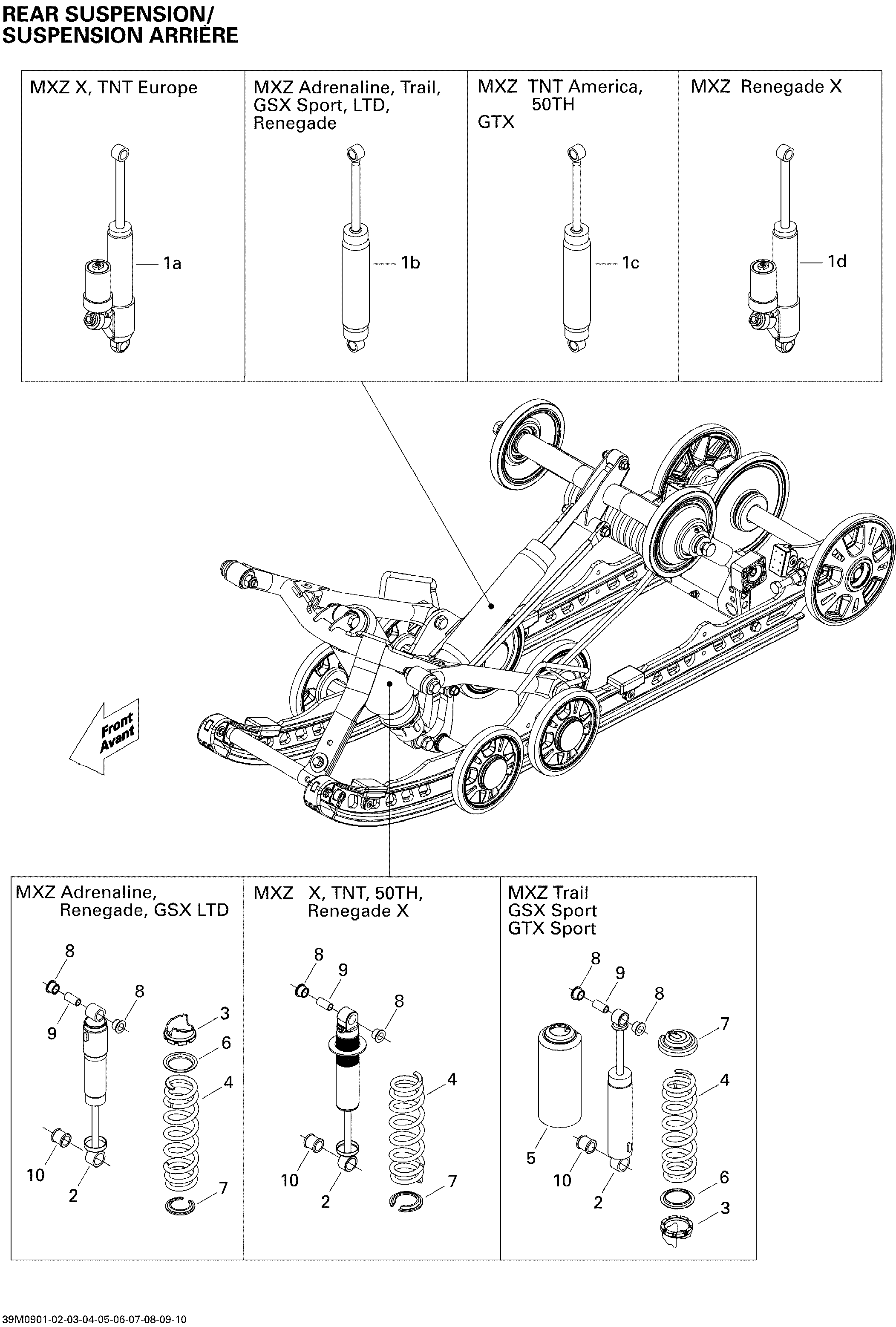

08- Rear Suspension Shocks для BRP Ski-Doo MX Z Renegade 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1b503192037 Rear Shock. RenegadeRear Shock. Renegade
-
2503192036 Center Shock. RenegadeCenter Shock. Renegade
-
3505070150 Adjustment Cam. RenegadeAdjustment Cam. Renegade
-
4503191879 SpringSpring
-
6503191872 Spring Guide. RenegadeSpring Guide. Renegade
-
7503191535 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
