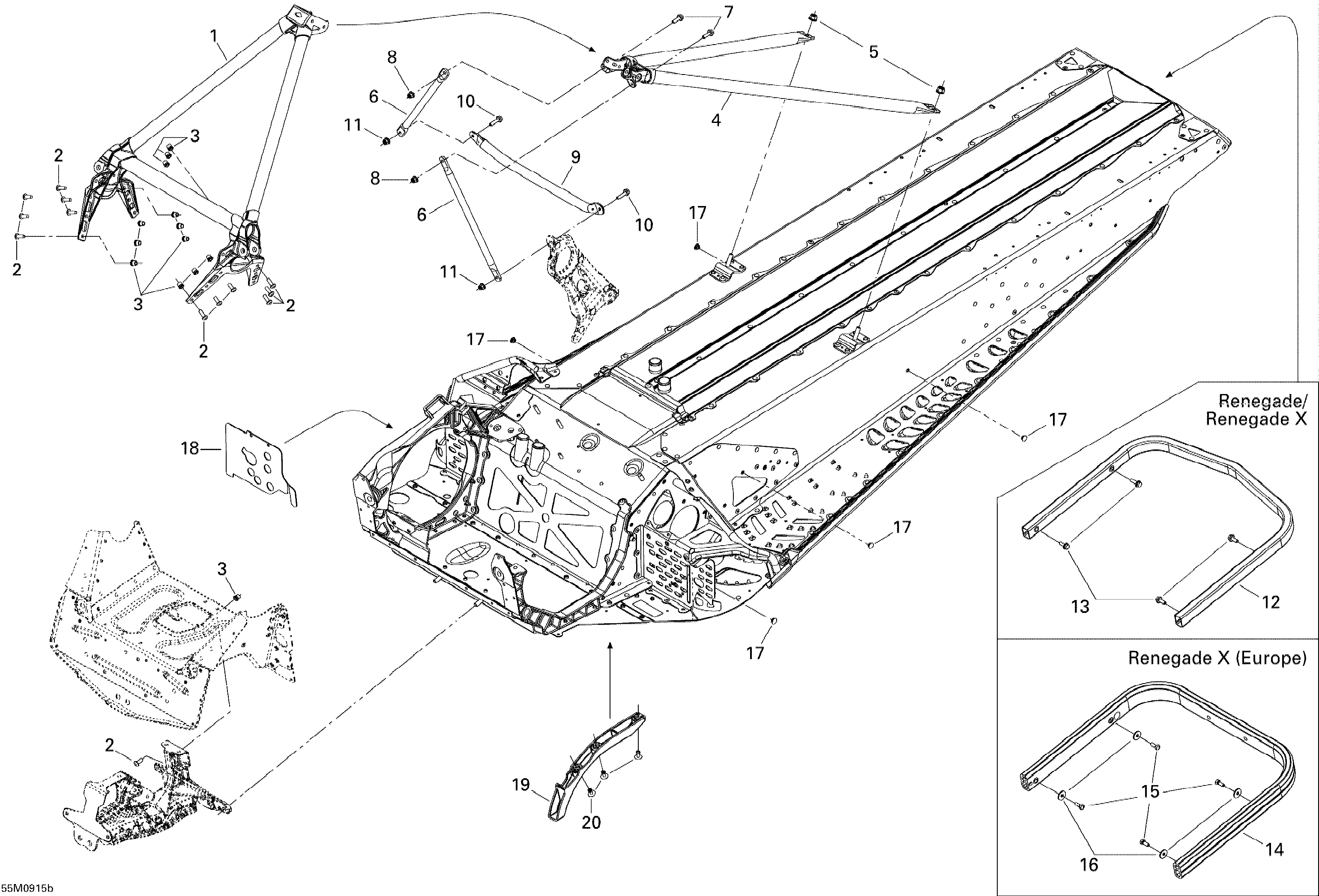

09- Frame and Components Renegade X для BRP Ski-Doo MX Z Renegade X 1200 4-TEC - 2009
-
№АртикулНазвание
-
1518325929 Front MemberFront Member
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4518325927 Rear MemberRear Member
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6518325114 Upper Column SupportUpper Column Support
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9518325360 Center Column SupportCenter Column Support
-
10207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518324980 Rear BumperRear Bumper
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14518325577 Rear Bumper. Renegade X (Europe)Rear Bumper. Renegade X (Europe)
-
15207161686 Hex. Cap Screw M6 X 16. Renegade X (Europe)Hex. Cap Screw M6 X 16. Renegade X (Europe)
-
16224061201 Flat Washer. Renegade X (Europe)Flat Washer. Renegade X (Europe)
-
17293730041 Dart 8 mmDart 8 mm
-
18518325418 Heat ShieldHeat Shield
-
19518324985 Front ProtectorFront Protector
-
20293150108 Pop Rivet 3/16''Pop Rivet 3/16''
