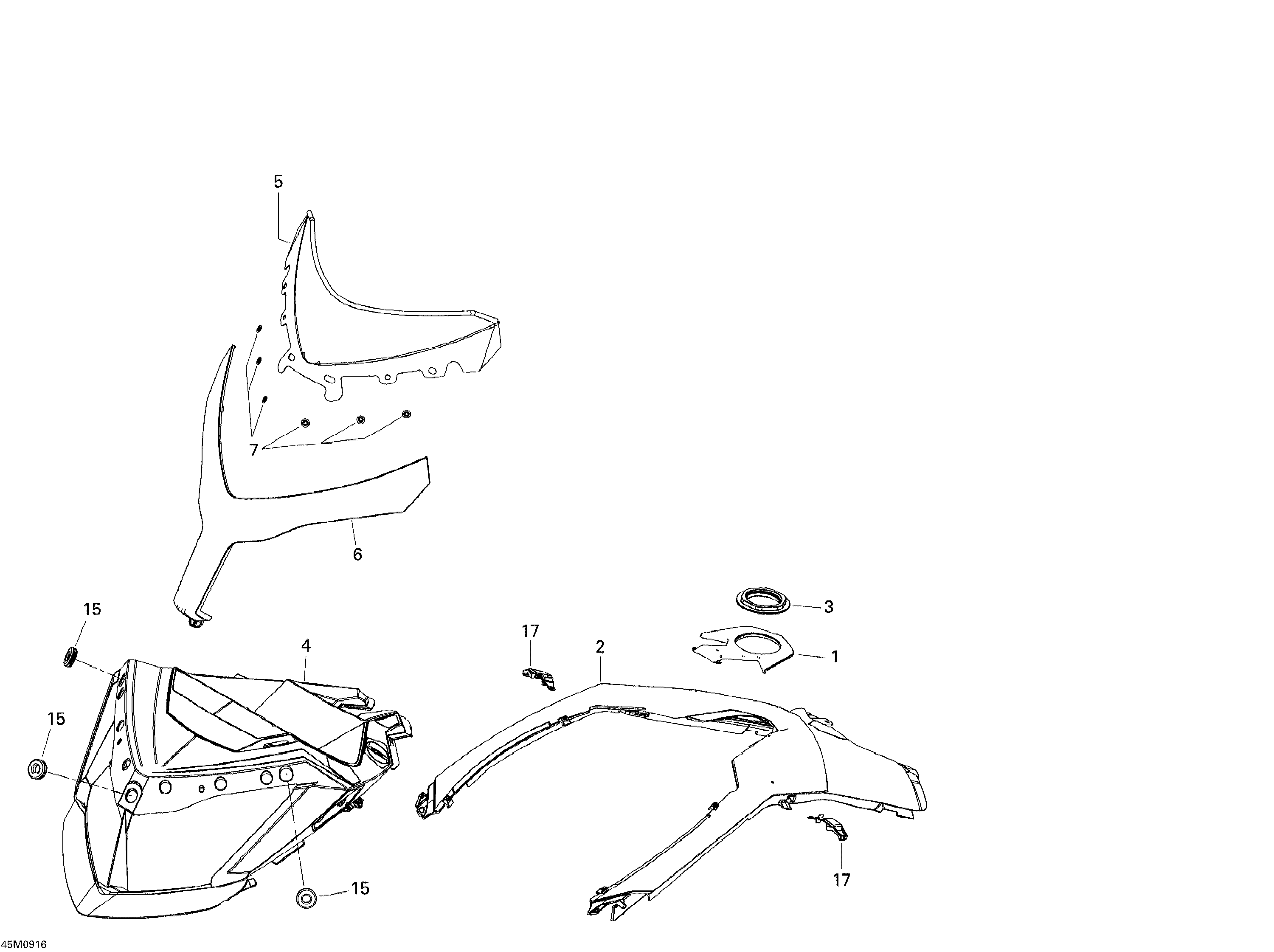

09- Windshield And Console TNT для BRP Ski-Doo MX Z TNT 1200 4-TEC - 2009
-
№АртикулНазвание
-
1517304027 Cap ConsoleCap Console
-
2517304041 ConsoleConsole
-
3517302575 Console NutConsole Nut
-
4517303742 Indicator SupportIndicator Support
-
5517303888 Low WindshieldLow Windshield
-
6517303959 Low Windshield SupportLow Windshield Support
-
7732610072 Push NutPush Nut
-
15517303756 GrommetGrommet
-
17517303973 Panel LatchPanel Latch
