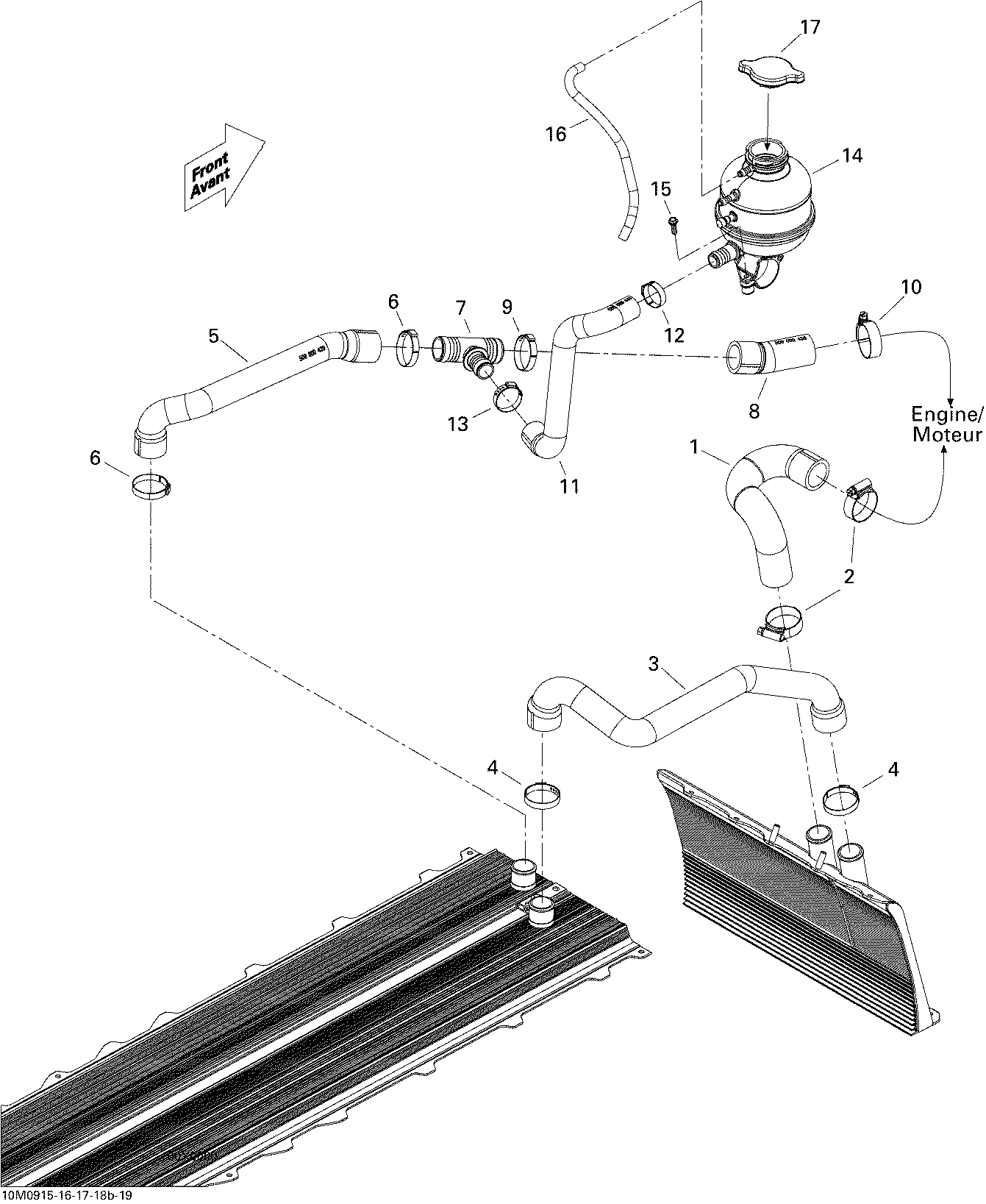

01- Cooling System для BRP Ski-Doo MX Z X 1200 4-TEC - 2009
-
№АртикулНазвание
-
1509000440 Outlet HoseOutlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000370 Radiator HoseRadiator Hose
-
4509000529 Oetiker Gear ClampOetiker Gear Clamp
-
5509000439 Radiator HoseRadiator Hose
-
6509000529 Oetiker Gear ClampOetiker Gear Clamp
-
7509000372 T-FittingT-Fitting
-
8509000438 Radiator HoseRadiator Hose
-
9509000529 Oetiker Gear ClampOetiker Gear Clamp
-
10509000443 Aba Gear ClampAba Gear Clamp
-
11509000441 HoseHose
-
12509000442 Oetiker Gear ClampOetiker Gear Clamp
-
13293650099 Oetiker Gear ClampOetiker Gear Clamp
-
14509000421 Coolant TankCoolant Tank
-
15241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
16415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
17509000180 Pressure CapPressure Cap
