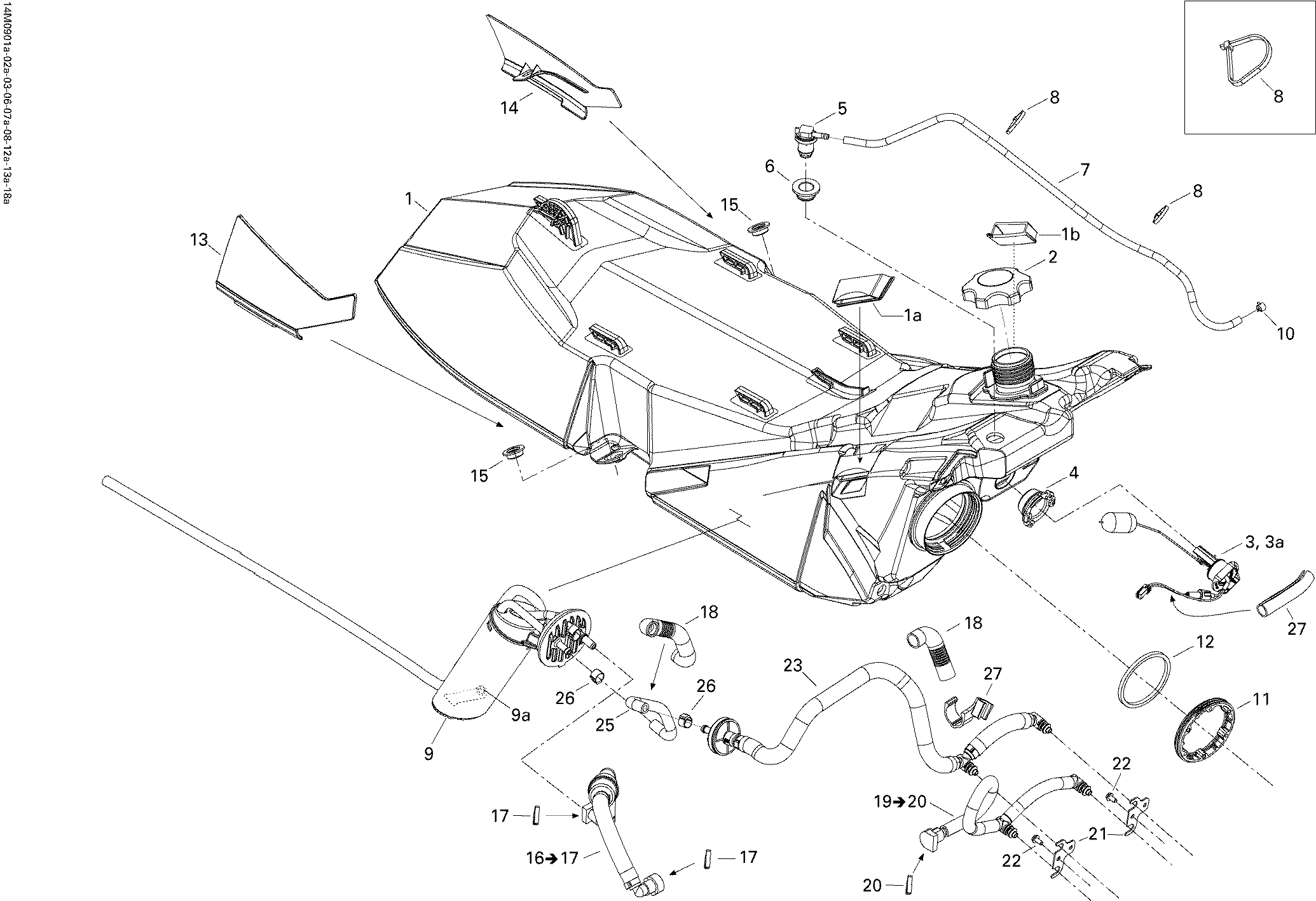

02- Fuel System 600 HO для BRP Ski-Doo MX Z X 600 H.O. ETEC - 2009
-
№АртикулНазвание
-
1513033459 Fuel TankFuel Tank
-
1a513033471 RH Side Panel ClipRH Side Panel Clip
-
1b513033472 LH Side Panel ClipLH Side Panel Clip
-
2513033024 Fuel CapFuel Cap
-
3513033168 Fuel SensorFuel Sensor
-
3a710001995 Fuel Sensor FuseFuel Sensor Fuse
-
4513033559 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033189 GrommetGrommet
-
7415080200 Polyurethane HosePolyurethane Hose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9513033507 Fuel PumpFuel Pump
-
9a415129451 Fuel Pump FilterFuel Pump Filter
-
10414554800 Spring ClampSpring Clamp
-
11513033180 RingRing
-
12513033334 GasketGasket
-
13513033418 RH CapRH Cap
-
14513033419 LH CapLH Cap
-
15513033326 Shoulder BushingShoulder Bushing
-
16513033560 Hose Ass'y. Includes 16 to 17Hose Ass'y. Includes 16 to 17
-
17513033135 Locking ClipLocking Clip
-
18513033461 TubingTubing
-
19513033548 Hose Ass'y. Includes 19 to 20Hose Ass'y. Includes 19 to 20
-
20513033135 Locking ClipLocking Clip
-
21513033542 BracketBracket
-
22207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
23513033561 Hose Ass'yHose Ass'y
-
25513033544 HoseHose
-
26293650047 Oetiker ClampOetiker Clamp
-
27415080000 Tubing 16 mmTubing 16 mm
