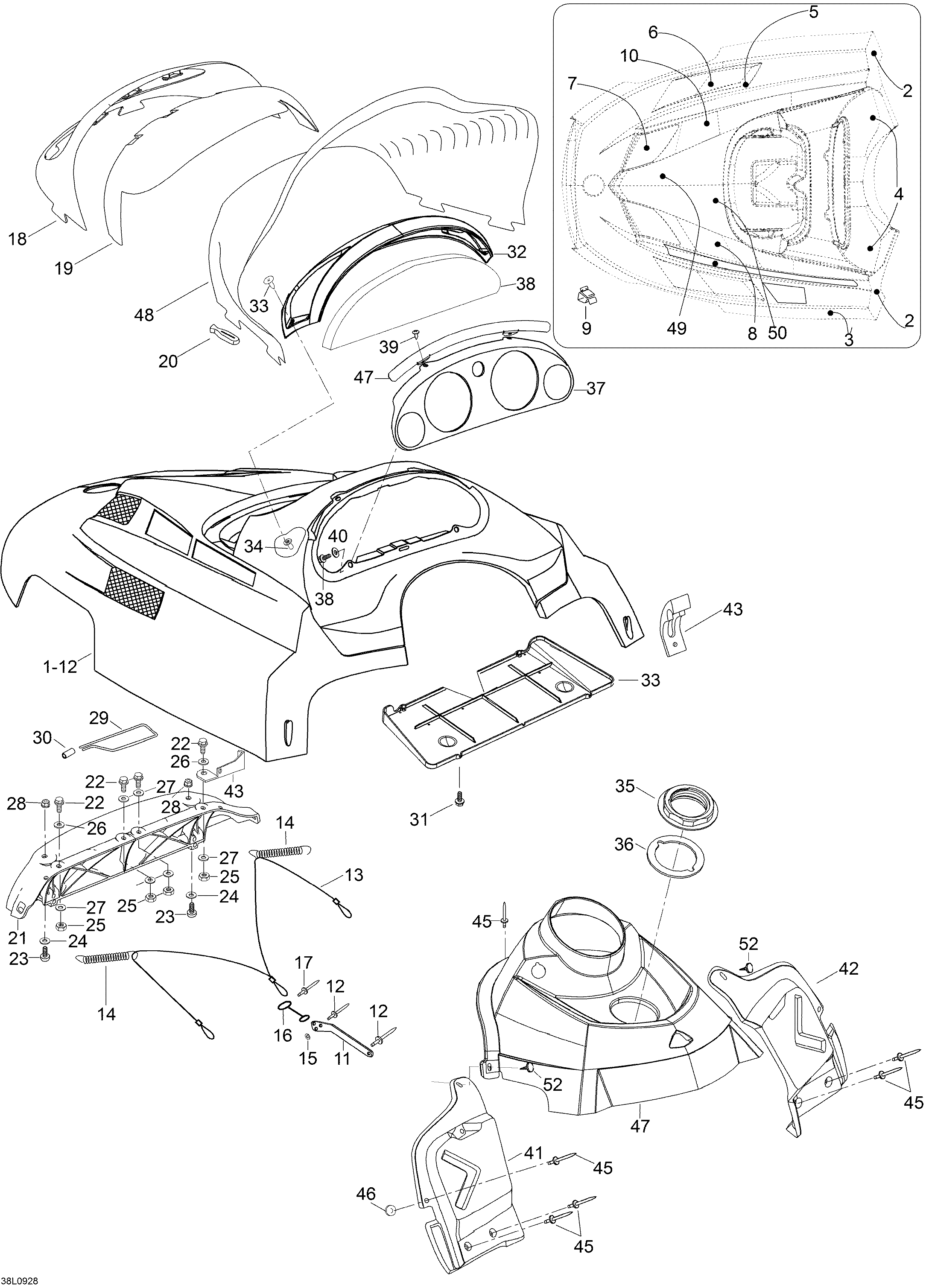

09- Hood для BRP Ski-Doo Skandic WT 600 - 2009
-
№АртикулНазвание
-
1605155308 Hood Pre Ass'y, Yellow. Includes 1 to 10, and 49Hood Pre Ass'y, Yellow. Includes 1 to 10, and 49
-
2605350906 Isolation Rear LHIsolation Rear LH
-
2605350907 Isolation Rear RHIsolation Rear RH
-
3605350908 Isolation Rear RHIsolation Rear RH
-
4605350909 Lower Isolation Rear LHLower Isolation Rear LH
-
4605350910 Upper Isolation Rear RHUpper Isolation Rear RH
-
5605350922 Heat ProtectorHeat Protector
-
6605350923 LH Upper GrillLH Upper Grill
-
6605355758 CoverCover
-
7605350925 LH Lower GrillLH Lower Grill
-
7605350926 RH Lower GrillRH Lower Grill
-
8605350927 LH GrillLH Grill
-
9517302785 ClipClip
-
10605350911 Isolation Rear Center LHIsolation Rear Center LH
-
11605452657 BracketBracket
-
12M36002 RivetRivet
-
13605351372 Retainer CableRetainer Cable
-
14M5442675 SpringSpring
-
15M20001 WasherWasher
-
16M5442870 Cable KeeperCable Keeper
-
17M36097 RivetRivet
-
18517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
19517302003 Windshield SupportWindshield Support
-
20570023800 Windshield LatchWindshield Latch
-
21517302631 HingeHinge
-
22207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
23M40381 Screw M6X20Screw M6X20
-
24M20117 WasherWasher
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26234061410 Flat Washer 6 mmFlat Washer 6 mm
-
27M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
28M33200 Nut M6Nut M6
-
29605454779 PinPin
-
30605454780 BushingBushing
-
31243141640 Hex. Flanged Plastite Screw M4.8 X 16Hex. Flanged Plastite Screw M4.8 X 16
-
32605151832 CoverCover
-
33M40061 Screw M4 X 18Screw M4 X 18
-
34M28051 Well-nutWell-nut
-
35517302043 Console NutConsole Nut
-
36M5447116 GasketGasket
-
37605354134 Indicator SupportIndicator Support
-
38605352583 FilterFilter
-
39M40888 ScrewScrew
-
40M20039 WasherWasher
-
41605251384 LH ConsoleLH Console
-
42605251922 RH ConsoleRH Console
-
43517302152 Hood LatchHood Latch
-
44605251387 Console, MiddleConsole, Middle
-
45M36037 RivetRivet
-
46M20008 Washer 5 mmWasher 5 mm
-
47605352586 Support PlateSupport Plate
-
48605152073 WindshieldWindshield
-
49605350912 Isolation center LHIsolation center LH
-
49605350913 Isolation center RHIsolation center RH
-
50605350922 Heat ProtectorHeat Protector
