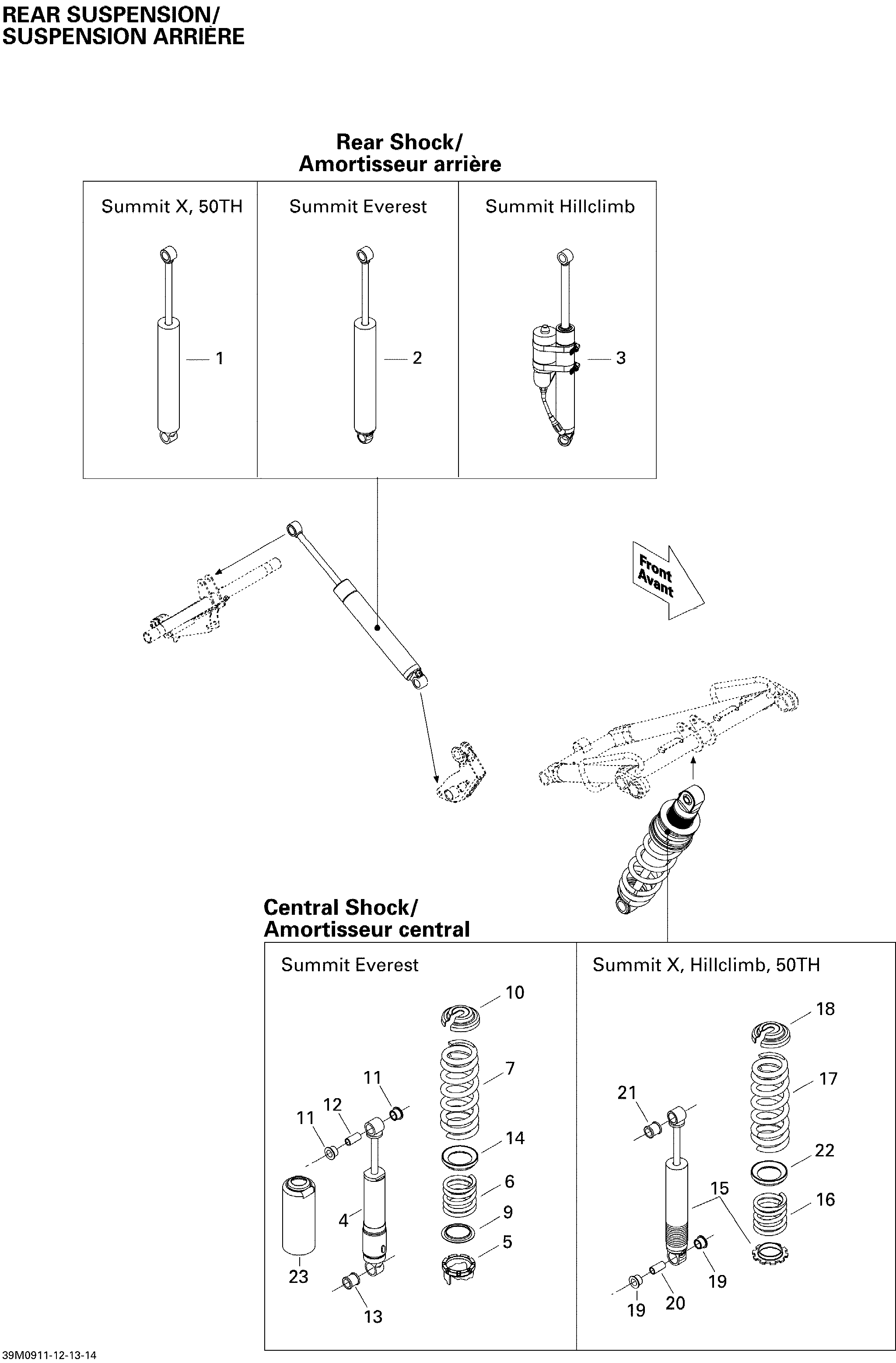

08- Rear Suspension Shocks для BRP Ski-Doo Summit 50TH Anniversary - 2009
-
№АртикулНазвание
-
1503191534 Rear ShockRear Shock
-
15503191532 Center ShockCenter Shock
-
16503191343 SpringSpring
-
17503191327 SpringSpring
-
18503189912 Spring StopperSpring Stopper
-
19503189117 CushionCushion
-
20503189282 BushingBushing
-
21503189271 CushionCushion
-
22503191281 Spring SpacerSpring Spacer
