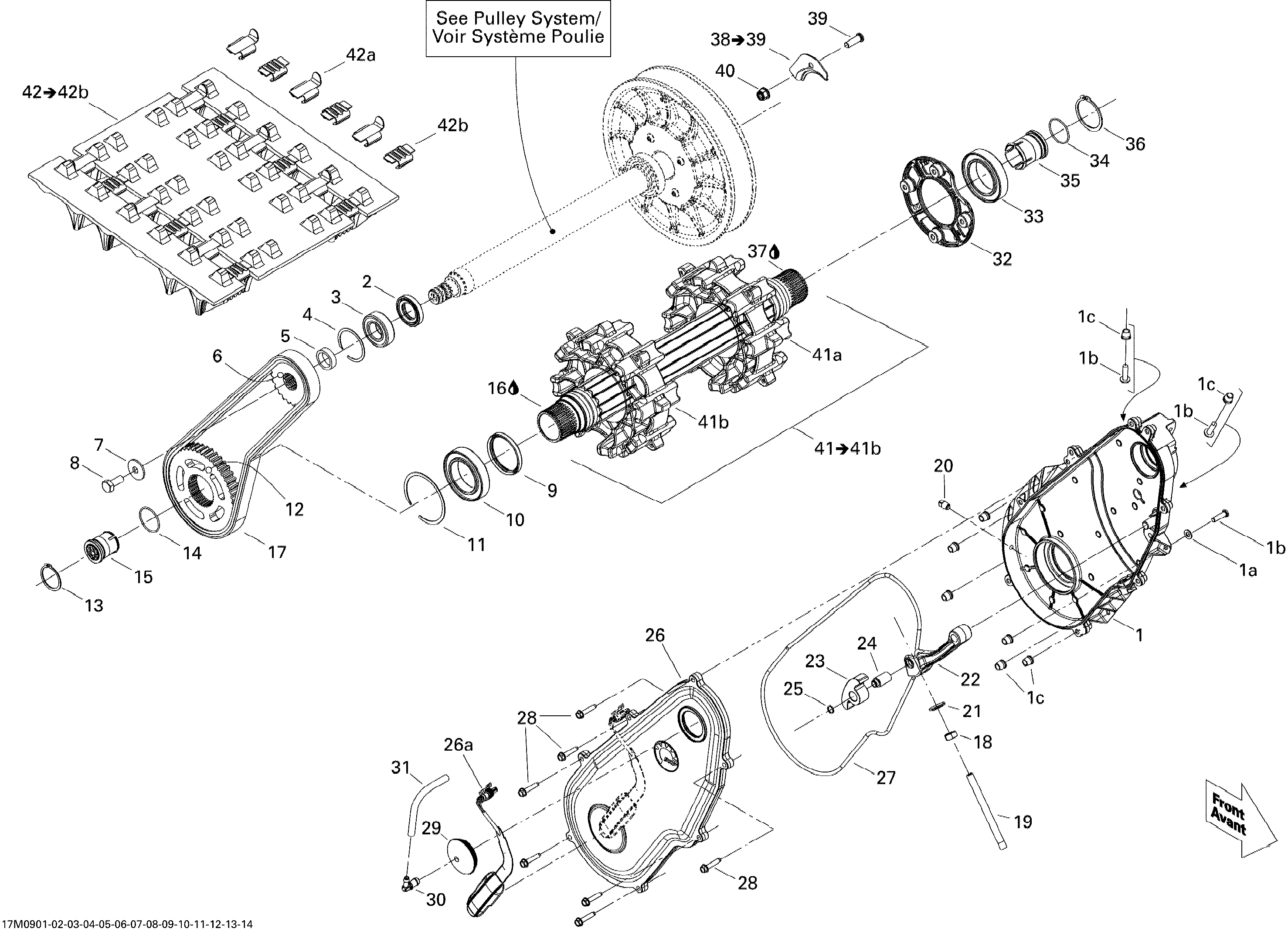

05- Drive System 500SS для BRP Ski-Doo Summit Everest 500SS - 2009
-
№АртикулНазвание
-
1504152865 ChaincaseChaincase
-
1a234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1b207662034 Hex. Flanged ScrewHex. Flanged Screw
-
1c233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
2415049300 SealSeal
-
3293350055 Ball BearingBall Bearing
-
4504152576 CirclipCirclip
-
5504152628 ShimShim
-
6504152031 Sprocket, 19 Teeth. 500SSSprocket, 19 Teeth. 500SS
-
7504152784 Spring WasherSpring Washer
-
8207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
9504152571 SealSeal
-
10504152573 Ball BearingBall Bearing
-
11504152582 CirclipCirclip
-
12504152581 Sprocket, 49 Teeth. 500SSSprocket, 49 Teeth. 500SS
-
13504152572 CirclipCirclip
-
14293300122 O-RingO-Ring
-
15504152619 CapCap
-
16219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
17504152629 Drive Chaine 104 Links. 500SSDrive Chaine 104 Links. 500SS
-
18232006414 Hex. Nut M10Hex. Nut M10
-
19504152602 Adjustment ScrewAdjustment Screw
-
20504152636 Magnetic PlugMagnetic Plug
-
21250200100 Bonded WasherBonded Washer
-
22504152685 Chain TensionerChain Tensioner
-
23504152739 Chain SliderChain Slider
-
24504152841 Tensionner AxleTensionner Axle
-
25504152282 CirclipCirclip
-
26504152763 Chaincase Cover Ass'yChaincase Cover Ass'y
-
26a504152732 Chaincase Cover SensorChaincase Cover Sensor
-
27293300130 O-RingO-Ring
-
28250000360 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
29504152860 CapCap
-
30414580700 Elbow Male ConnectorElbow Male Connector
-
31415080200 Polyurethane HosePolyurethane Hose
-
32507032437 Bearing HousingBearing Housing
-
33293350059 Ball BearingBall Bearing
-
34293300122 O-RingO-Ring
-
35504152619 CapCap
-
36504152572 CirclipCirclip
-
37219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
38504152633 Bearing Housing. Includes 38 to 39Bearing Housing. Includes 38 to 39
-
39250300028 Clinch Stud, M8 X 25Clinch Stud, M8 X 25
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41504152845 Axle Drive Ass'y. Includes 41 to 41bAxle Drive Ass'y. Includes 41 to 41b
-
42504152843 Track Ass'y 15X146X2.0. Includes 42 to 42b, 500SSTrack Ass'y 15X146X2.0. Includes 42 to 42b, 500SS
-
42a415129222 GuideGuide
-
42b504152652 CleatCleat
