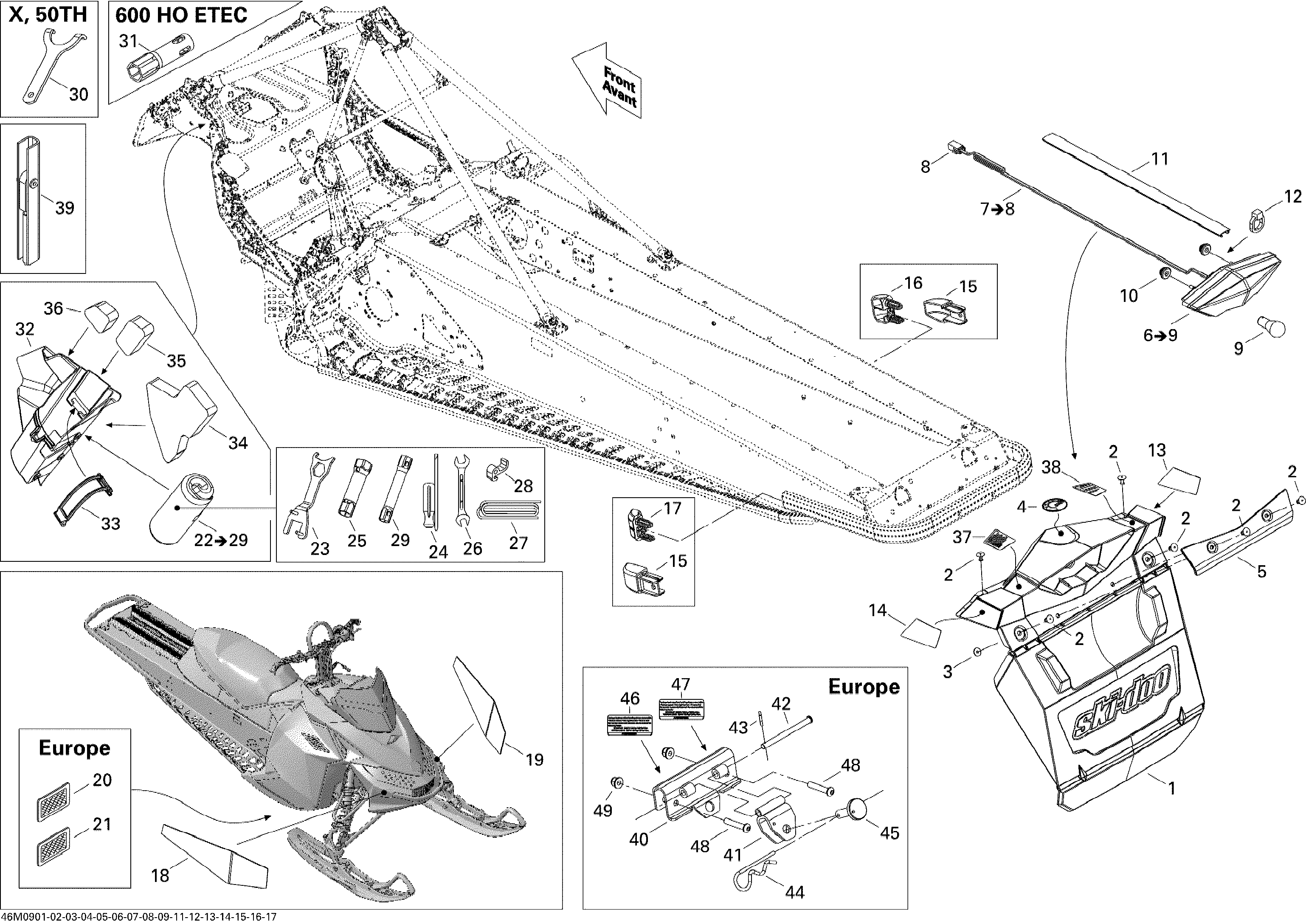

09- Utilities 600HO для BRP Ski-Doo Summit Everest 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1520000565 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000680 Wiring Harness. Includes 7 to 8Wiring Harness. Includes 7 to 8
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705001119 GrommetGrommet
-
11520000829 Radiator TrimRadiator Trim
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13520000716 Rear ReflectorRear Reflector
-
13520000706 Rear Reflector. EuropeRear Reflector. Europe
-
14520000717 Rear ReflectorRear Reflector
-
14520000707 Rear Reflector. EuropeRear Reflector. Europe
-
15520000567 CapCap
-
16520000711 RH Cap. Europe, Track 146''RH Cap. Europe, Track 146''
-
17520000712 LH Cap. Europe, Track 146''LH Cap. Europe, Track 146''
-
18520000718 RH Front ReflectorRH Front Reflector
-
19520000719 LH Front ReflectorLH Front Reflector
-
20520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
21415037900 Reflector, White. EuropeReflector, White. Europe
-
22520000841 Tool Kit. Includes 22 to 29Tool Kit. Includes 22 to 29
-
23520000721 WrenchWrench
-
24529000004 Driver ScrewDriver Screw
-
25529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
26529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
27412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
28529019400 Starter GripStarter Grip
-
29295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
31520000713 Socket 16mm. 600 HO ETECSocket 16mm. 600 HO ETEC
-
32520000842 Tool Kit RackTool Kit Rack
-
33520000528 LatchLatch
-
34520000743 FoamFoam
-
35520000753 FoamFoam
-
36520000754 FoamFoam
-
37520000695 Warning Decal-Security-EnglishWarning Decal-Security-English
-
38520000697 Warning Decal-Load-EnglishWarning Decal-Load-English
-
39529035501 Spacing ToolSpacing Tool
-
40511000554 Support. EuropeSupport. Europe
-
41511000588 Hitch Plate. EuropeHitch Plate. Europe
-
42511000520 Clevis Pin. EuropeClevis Pin. Europe
-
43371800200 Cotter Pin. EuropeCotter Pin. Europe
-
44114045200 Hair Pin. EuropeHair Pin. Europe
-
45511000555 Pin. EuropePin. Europe
-
46516003037 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
47516003038 Warning Decal-Security-French. EuropeWarning Decal-Security-French. Europe
-
48205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
49233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
