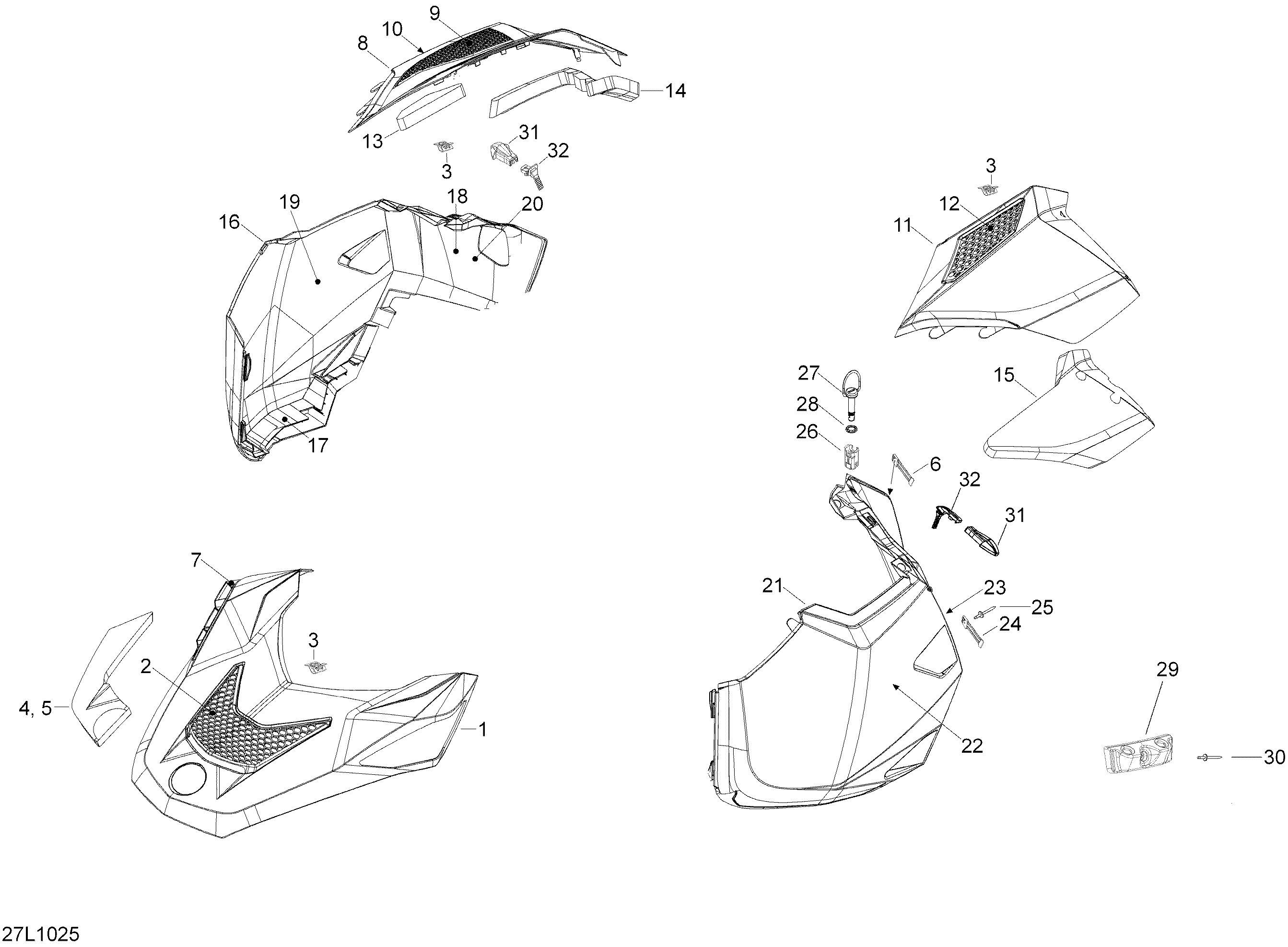

09- Hood для BRP Ski-Doo Expedition TUV 1200 REV-XU - 2010
-
№АртикулНазвание
-
1517303889 HoodHood
-
2517303892 Hood GrillHood Grill
-
3517302785 ClipClip
-
4517304330 Insulator LHInsulator LH
-
5517304214 Insulator RHInsulator RH
-
6517304289 Latch PannelLatch Pannel
-
7517304155 Scoop GrillScoop Grill
-
8517304682 Side Access Panel RHSide Access Panel RH
-
9517304015 RH Access Panel GrillRH Access Panel Grill
-
10517304016 RH Lower Acces GrillRH Lower Acces Grill
-
11517304691 Side Access Panel LHSide Access Panel LH
-
12517303893 LH Access Panel GrillLH Access Panel Grill
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517304313 InsulatorInsulator
-
16517304509 Side Panel RH Ass'ySide Panel RH Ass'y
-
17517304215 Aluminium FoilAluminium Foil
-
18517304216 Aluminium FoilAluminium Foil
-
19517304512 Aluminium FoilAluminium Foil
-
20517304310 RH Rear FoamRH Rear Foam
-
21517304511 Side Panel LH Ass'ySide Panel LH Ass'y
-
22517303891 LH FoamLH Foam
-
23517304309 LH Rear FoamLH Rear Foam
-
24517304572 Latch-PanelLatch-Panel
-
25293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
26517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
27517304296 Quarter-Turn HandleQuarter-Turn Handle
-
28517304538 Locking PlateLocking Plate
-
29517304497 Side Panel SupportSide Panel Support
-
30M36005 RivetRivet
-
31860200239 Black Latch KitBlack Latch Kit
-
32517304573 Latch-PanelLatch-Panel
