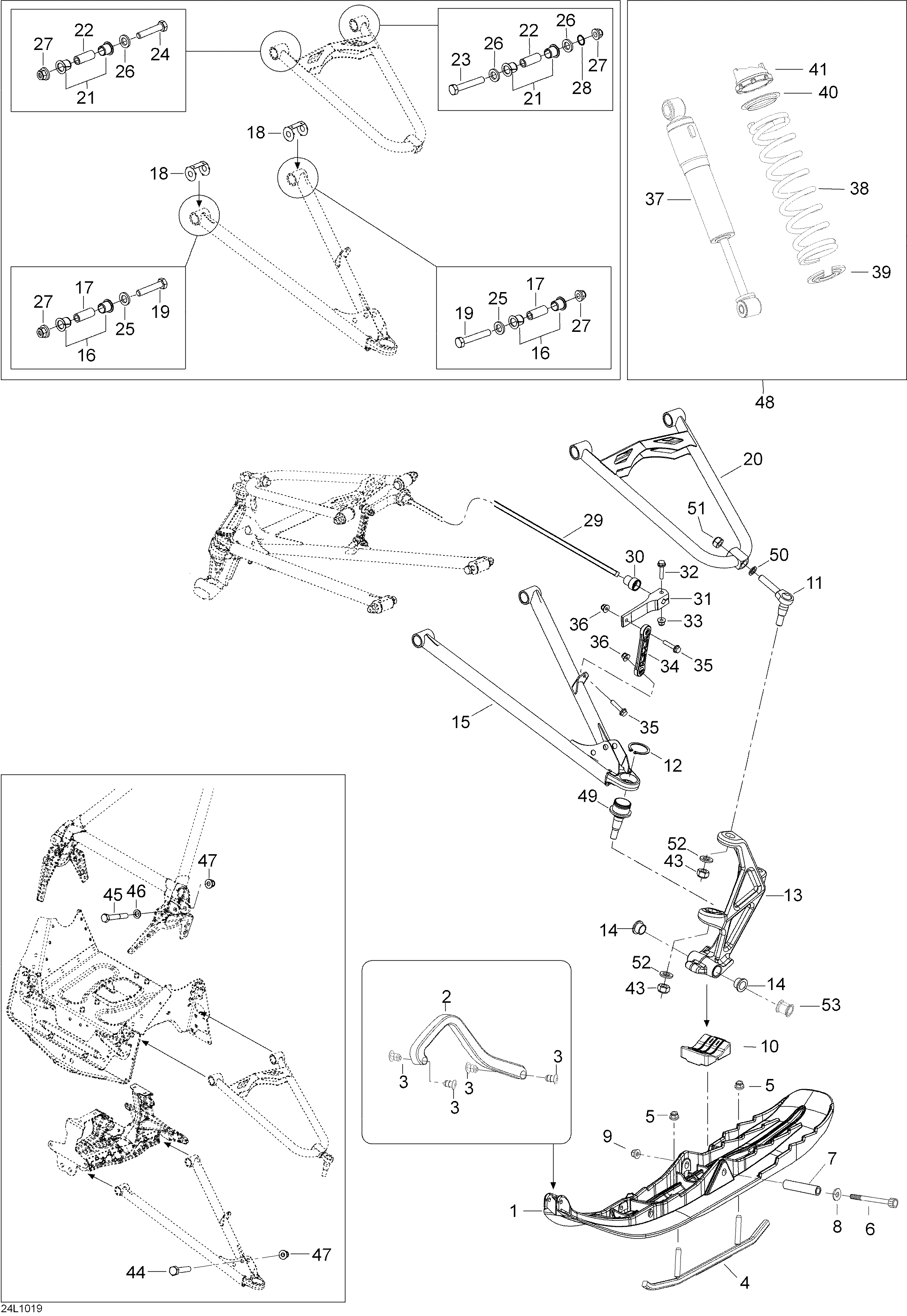

07- Front Suspension And Ski Europe для BRP Ski-Doo Expedition TUV 600HO SDI XU - 2010
-
№АртикулНазвание
-
1505072174 RH Pilot Ski 6.9 Ass'yRH Pilot Ski 6.9 Ass'y
-
1505072175 LH Pilot Ski 6.9 Ass'yLH Pilot Ski 6.9 Ass'y
-
2505070963 Handle, BlackHandle, Black
-
3505071812 RetainerRetainer
-
4860200141 Carbide KitCarbide Kit
-
5M33074 NutNut
-
6230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
7506133300 SpacerSpacer
-
8732900049 WasherWasher
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10505071779 Ski StopperSki Stopper
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505072721 LH Ski LegLH Ski Leg
-
13505072722 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
15505072497 RH Lower ArmRH Lower Arm
-
15505072498 LH Lower ArmLH Lower Arm
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072375 Upper ArmUpper Arm
-
21505072250 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505072517 Front ShockFront Shock
-
38503192286 Spring 300mm-14 N/MMSpring 300mm-14 N/MM
-
39M230076 Spring StopperSpring Stopper
-
40503191872 Spring GuideSpring Guide
-
41505070150 Adjustment CamAdjustment Cam
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
44207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
45207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
46503189564 WasherWasher
-
47233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072682 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
52234021410 Flat Washer 12 mmFlat Washer 12 mm
-
53505071999 SpacerSpacer
