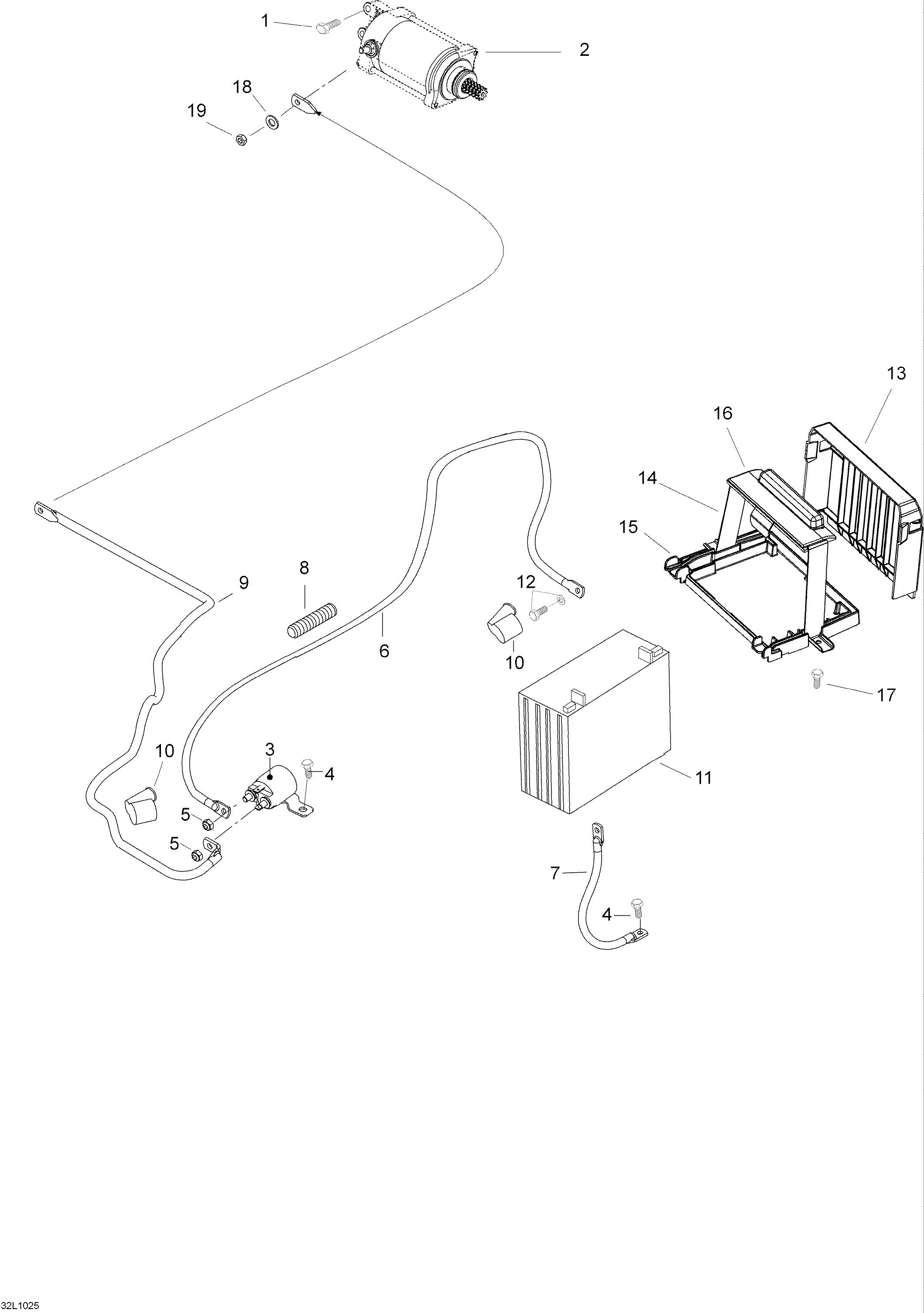

10- Battery And Starter SE для BRP Ski-Doo Expedition TUV SE 1200 REV-XU - 2010
-
№АртикулНазвание
-
1420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
3515176011 Starter RelayStarter Relay
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6515176778 Battery WireBattery Wire
-
7515176777 Ground WireGround Wire
-
8M28015 HousingHousing
-
9515176806 Start CableStart Cable
-
10710000495 Protector CapProtector Cap
-
11515176151 BatteryBattery
-
12515176081 Battery Bolt KitBattery Bolt Kit
-
13510005079 Battery CoverBattery Cover
-
14510005250 Battery StrapBattery Strap
-
15515176804 Battery SupportBattery Support
-
16510005146 Strap CoverStrap Cover
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
