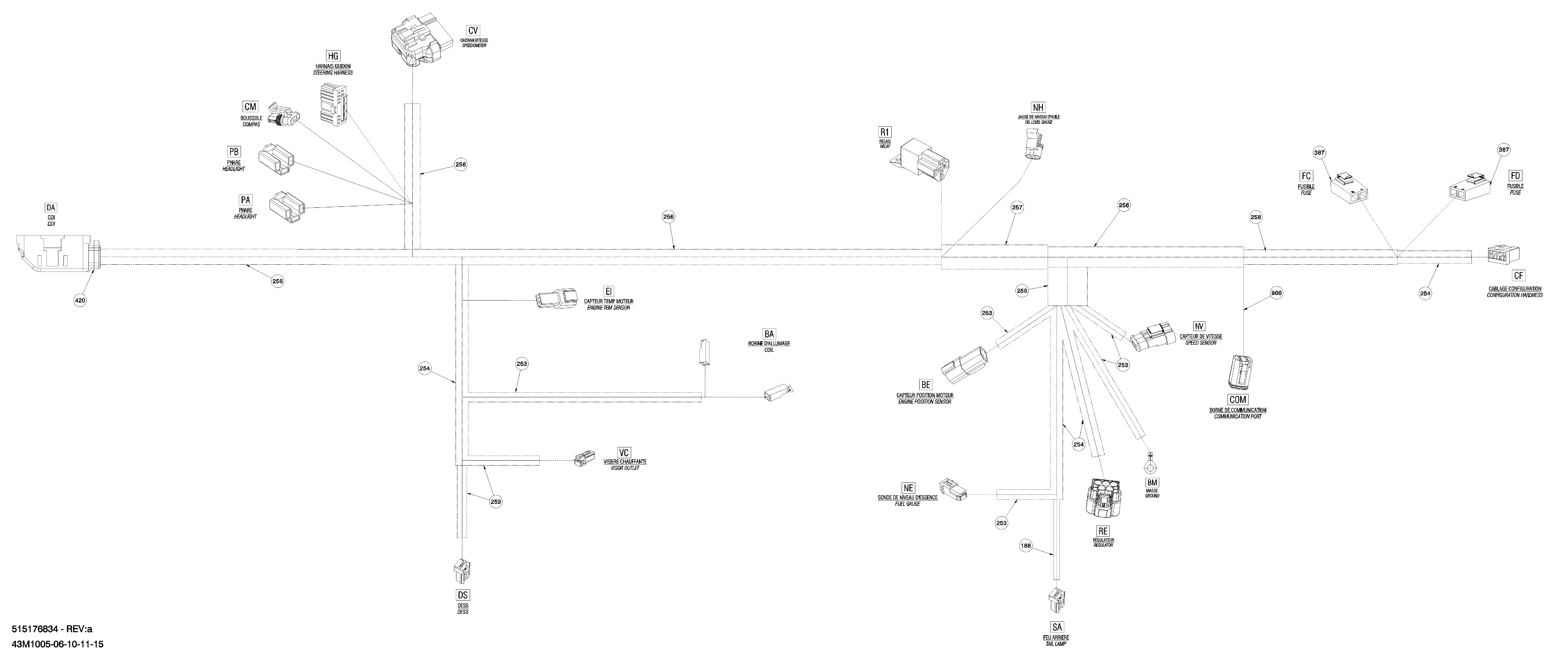

10- Electrical Harness для BRP Ski-Doo Grand-Touring Sport 600 - 2010
-
№АртикулНазвание
-
1515176834 Main Harness Ass'y. Includes 1 to VCMain Harness Ass'y. Includes 1 to VC
-
188409902000 Tubing 12 mmTubing 12 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
BA409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
BA409010100 Female TerminalFemale Terminal
-
BE278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
BE278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
BE278000631 Male TerminalMale Terminal
-
BM278000992 Open BarrelOpen Barrel
-
CF515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
CF515175231 Female TerminalFemale Terminal
-
CF293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM515176621 Wire SealWire Seal
-
CM278002307 Female TerminalFemale Terminal
-
CM293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278000632 Female TerminalFemale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
DA293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
DA515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
DA515176224 Terminal SupportTerminal Support
-
DA515175812 PlugPlug
-
DA515176221 Female HousingFemale Housing
-
DA515176485 Protection CapProtection Cap
-
DA515176222 Wire SealWire Seal
-
DA515175806 Female TerminalFemale Terminal
-
DA710001131 Female TerminalFemale Terminal
-
DA293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
DA414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
EI515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
EI278000631 Male TerminalMale Terminal
-
FC710000992 ClipClip
-
FC293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FC409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
FC409004000 Fuse HolderFuse Holder
-
FC409004200 Female TerminalFemale Terminal
-
FD710000992 ClipClip
-
FD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FD278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
FD409004000 Fuse HolderFuse Holder
-
FD409004200 Female TerminalFemale Terminal
-
HG515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HG515175282 Female TerminalFemale Terminal
-
HG515175231 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NH278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
NH710001119 Female TerminalFemale Terminal
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
R1409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
R1410113200 RelayRelay
-
R1561503100 Female TerminalFemale Terminal
-
R1561503100 Female TerminalFemale Terminal
-
R1293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
RE515176530 ConnectorConnector
-
RE515176594 SealSeal
-
RE515176531 TerminalTerminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
