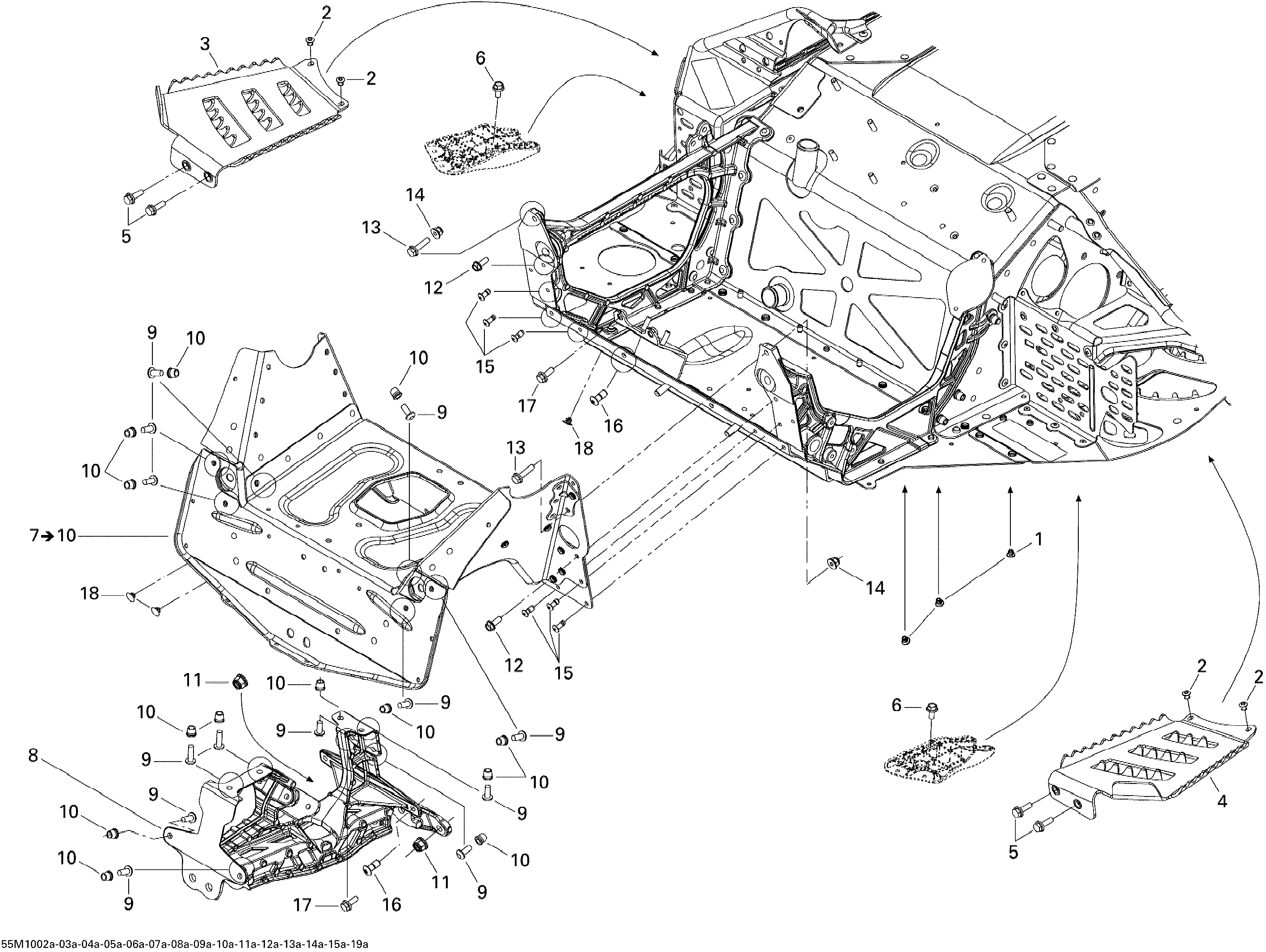

09- Frame and Components 1 для BRP Ski-Doo MX Z Adrenaline 800R PTEK - 2010
-
№АртикулНазвание
-
6207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
7518325924 S-Module. Includes 7 to 10S-Module. Includes 7 to 10
-
8518325925 Front Suspension SupportFront Suspension Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15293150175 Monobolt RivetMonobolt Rivet
-
16293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
17207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18293730042 DartDart
