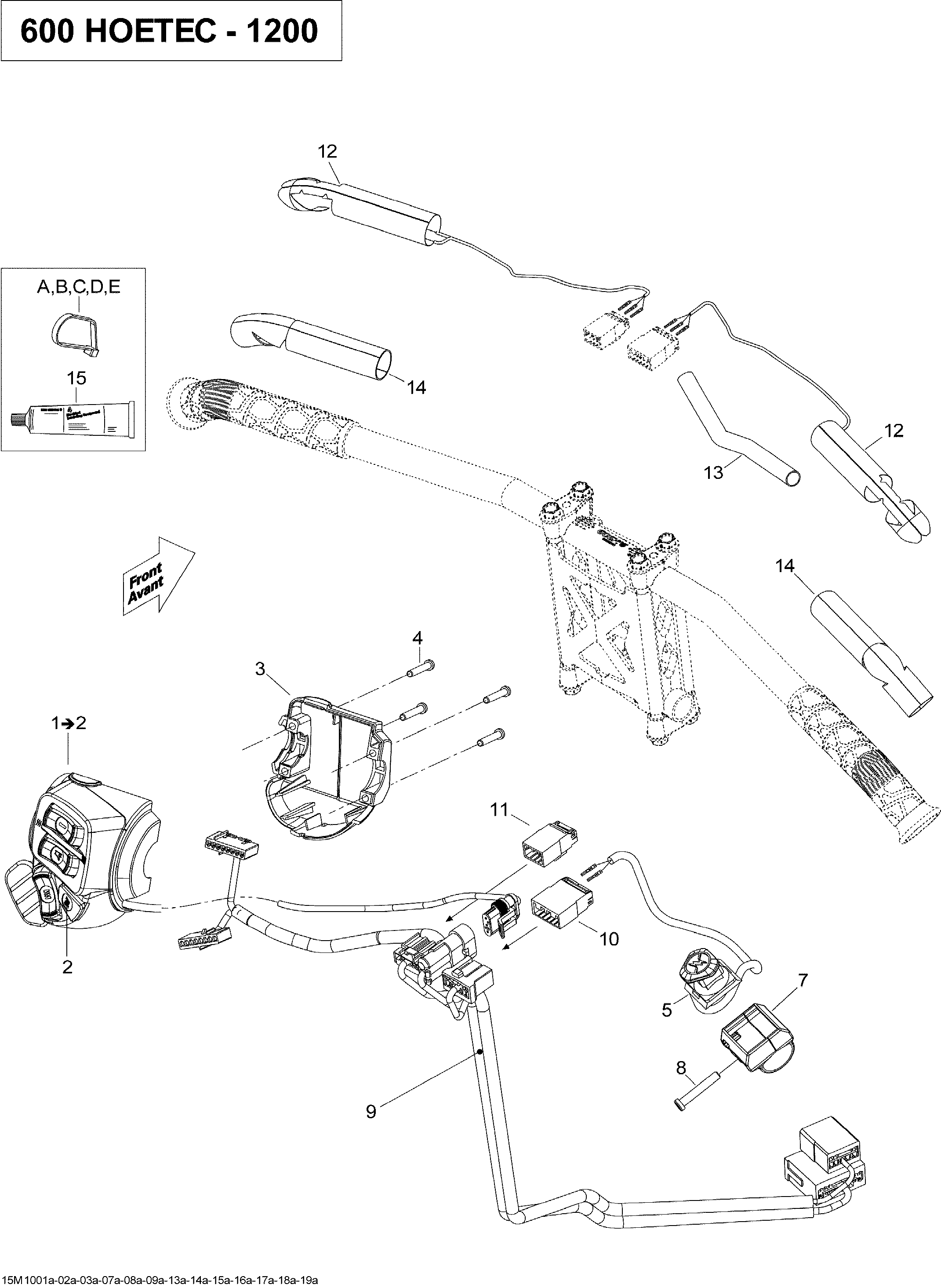

10- Steering Wiring Harness ADR, TNT для BRP Ski-Doo MX Z TNT 1200 - 2010
-
№АртикулНазвание
-
1515176869 LH Housing. ADR & TNT, Includes 1 to 2LH Housing. ADR & TNT, Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176725 Kill SwitchKill Switch
-
7515176825 Kill Switch SupportKill Switch Support
-
8250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176867 Wiring Harness Ass'y. ADR & TNTWiring Harness Ass'y. ADR & TNT
-
10515175817 Male Terminal Housing, 8 Circuits. ADR & TNTMale Terminal Housing, 8 Circuits. ADR & TNT
-
11515175662 Male Terminal Housing, 6 Circuits. ADR & TNTMale Terminal Housing, 6 Circuits. ADR & TNT
-
12506152371 Heating ElementHeating Element
-
13515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
14506152360 InsulantInsulant
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
A414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
B293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
C293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
