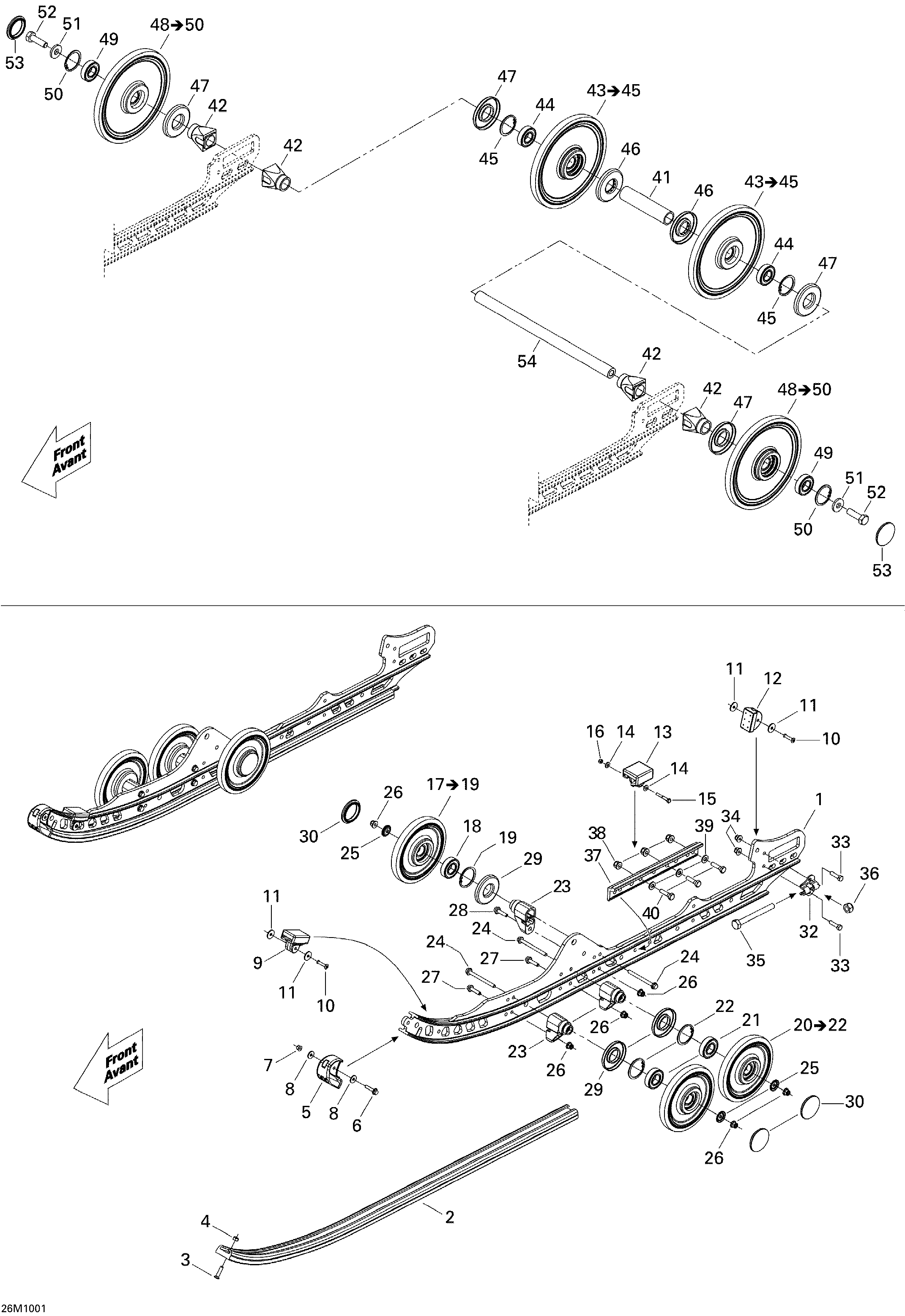

08- Rear Suspension для BRP Ski-Doo MX Z X-RS 600HO ETEC - 2010
-
№АртикулНазвание
-
1503192152 Runner 120''Runner 120''
-
2503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503190741 Rail StopperRail Stopper
-
14391301700 WasherWasher
-
15207053544 Hex. Screw M5 X 35Hex. Screw M5 X 35
-
16232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
17503191316 Wheel 141 Ass'y. Includes 17 to 19Wheel 141 Ass'y. Includes 17 to 19
-
18503190396 Ball BearingBall Bearing
-
19415129371 Retaining RingRetaining Ring
-
20503191316 Wheel 141 Ass'y. Includes 20 to 22Wheel 141 Ass'y. Includes 20 to 22
-
21503190396 Ball BearingBall Bearing
-
22415129371 Retaining RingRetaining Ring
-
23503191833 SupportSupport
-
24207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
25503191820 Wheel Cup M6Wheel Cup M6
-
26233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
27207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
28207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
29503190434 Labyrinth SealLabyrinth Seal
-
30570063600 Wheel CapWheel Cap
-
32503190380 TensionerTensioner
-
33207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
36233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
37503191804 Rail ReinforcementRail Reinforcement
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39503189157 WasherWasher
-
40207183044 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
41503191263 Rear SpacerRear Spacer
-
42503190428 Rear Wheel SpacerRear Wheel Spacer
-
43503191559 Wheel, 180 mm, Black. Includes 43 to 45Wheel, 180 mm, Black. Includes 43 to 45
-
44503190396 Ball BearingBall Bearing
-
45415129371 Retaining RingRetaining Ring
-
46503190682 Labyrinth SealLabyrinth Seal
-
47503190434 Labyrinth SealLabyrinth Seal
-
48503191559 Wheel, 180 mm, Black. Includes 48 to 50Wheel, 180 mm, Black. Includes 48 to 50
-
49503190396 Ball BearingBall Bearing
-
50415129371 Retaining RingRetaining Ring
-
51503190439 WasherWasher
-
52250000019 Hex. Screw With NylonHex. Screw With Nylon
-
53570063600 Wheel CapWheel Cap
-
54503190429 Rear AxleRear Axle
