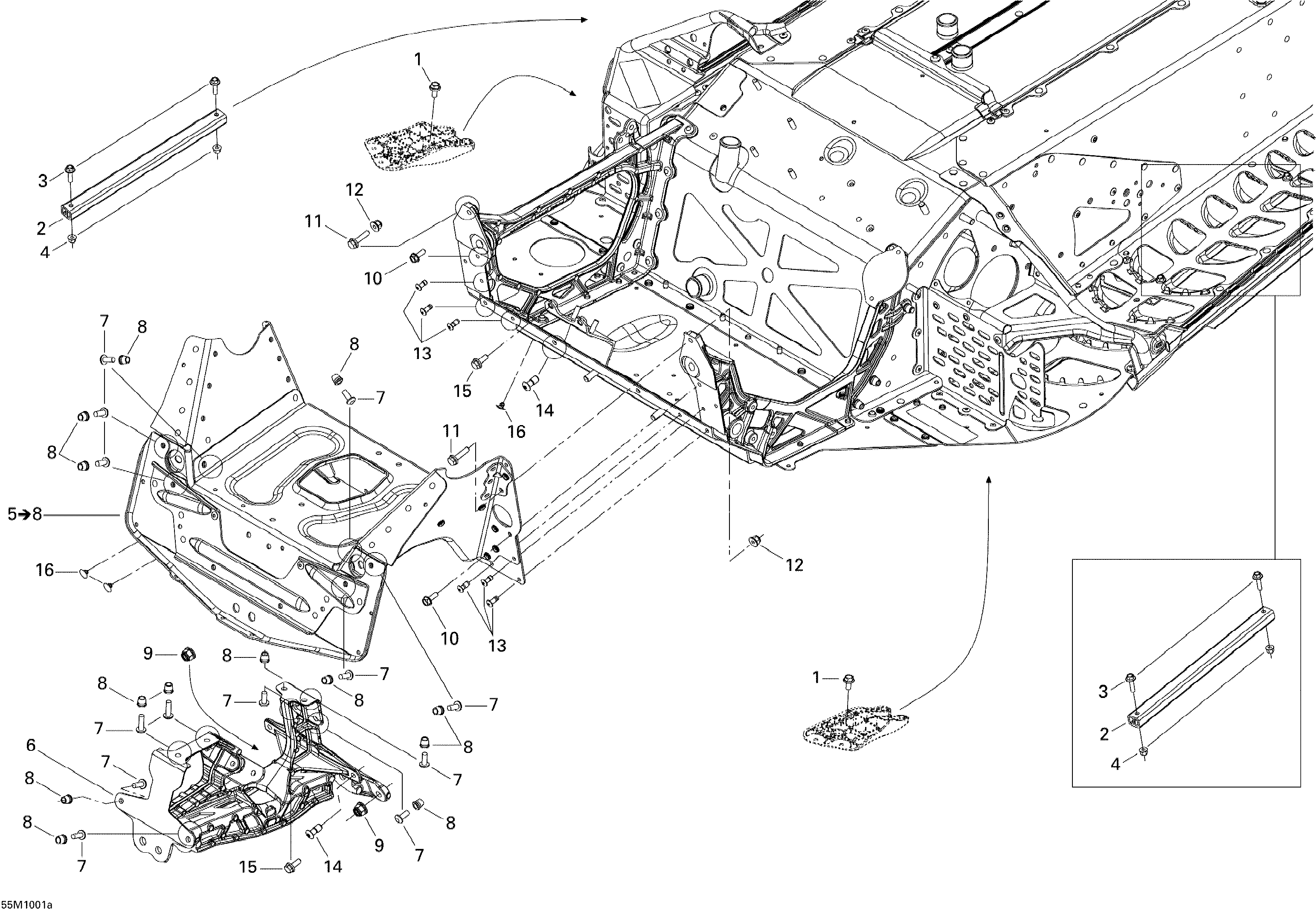

09- Frame and Components 1 для BRP Ski-Doo MX Z X-RS 800R PTEK - 2010
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2518325790 Reinforcement LinkReinforcement Link
-
3207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
4233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
5518325946 S Module. Includes 5 to 8S Module. Includes 5 to 8
-
6518325925 Front Suspension SupportFront Suspension Support
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13293150175 Monobolt RivetMonobolt Rivet
-
14293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
15207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16293730042 DartDart
