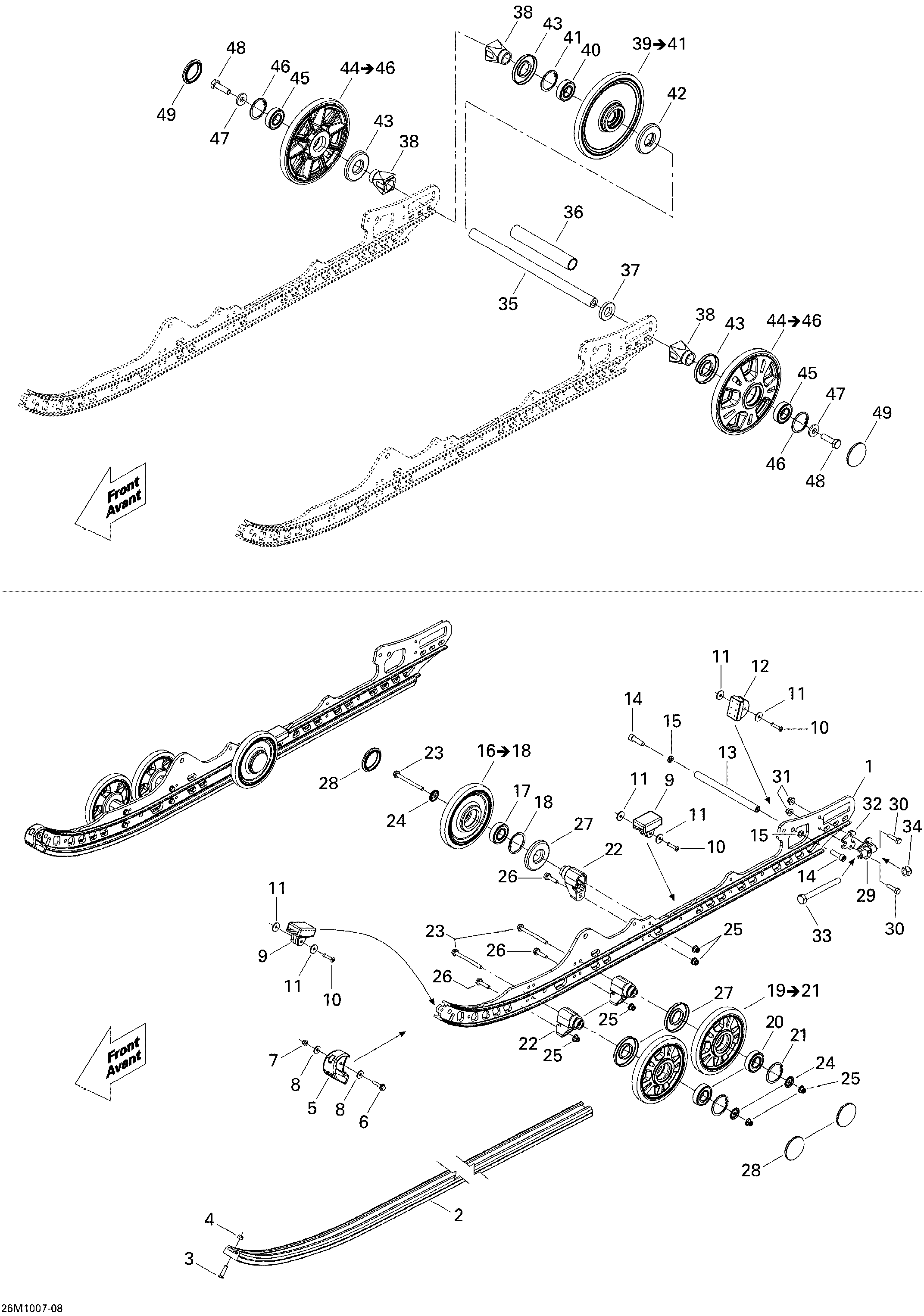

08- Rear Suspension для BRP Ski-Doo Renegade Adrenaline 800R PTEK - 2010
-
№АртикулНазвание
-
1503192318 Runner 137''Runner 137''
-
2503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191260 Axle StrapAxle Strap
-
14205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
15503189564 WasherWasher
-
16503191316 Wheel 141 Ass'y. Includes 16 to 18Wheel 141 Ass'y. Includes 16 to 18
-
17503190396 Ball BearingBall Bearing
-
18415129371 Retaining RingRetaining Ring
-
19503191621 Wheel 141 mm Ass'y, Yellow. Includes 19 to 21Wheel 141 mm Ass'y, Yellow. Includes 19 to 21
-
20503190396 Ball BearingBall Bearing
-
21415129371 Retaining RingRetaining Ring
-
22503191833 SupportSupport
-
23207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
24503191820 Wheel Cup M6Wheel Cup M6
-
25233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
27503190434 Labyrinth SealLabyrinth Seal
-
28570063600 Wheel CapWheel Cap
-
29503190380 TensionerTensioner
-
30207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32503190379 Tensioner SpacerTensioner Spacer
-
33230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503190429 Rear AxleRear Axle
-
36503190430 SpacerSpacer
-
37503190432 WasherWasher
-
38503190428 Rear Wheel SpacerRear Wheel Spacer
-
39503191559 Wheel, 180 mm, Black. Includes 39 to 41Wheel, 180 mm, Black. Includes 39 to 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 Retaining RingRetaining Ring
-
42503190682 Labyrinth SealLabyrinth Seal
-
43503190434 Labyrinth SealLabyrinth Seal
-
44503191626 Wheel 180, Yellow. Includes 44 to 46Wheel 180, Yellow. Includes 44 to 46
-
45503190396 Ball BearingBall Bearing
-
46415129371 Retaining RingRetaining Ring
-
47503190439 WasherWasher
-
48250000019 Hex. Screw With NylonHex. Screw With Nylon
-
49570063600 Wheel CapWheel Cap
