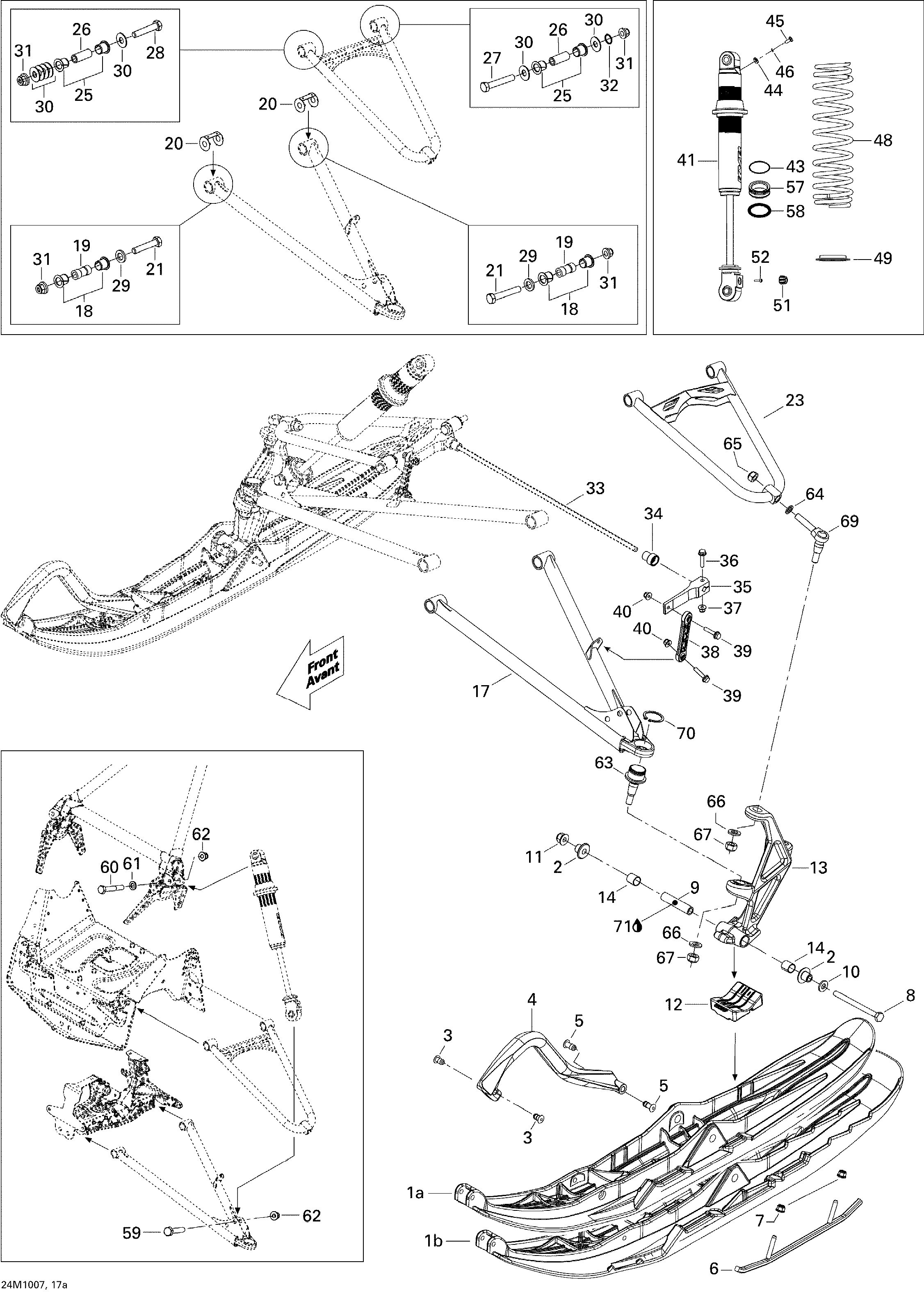

07- Front Suspension And Ski для BRP Ski-Doo Renegade X 600HO ETEC - 2010
-
№АртикулНазвание
-
1a505072943 RH Pilot Ski 5.7 Ass'y. Black/Black, Include item 2RH Pilot Ski 5.7 Ass'y. Black/Black, Include item 2
-
1a505072942 LH Pilot Ski 5.7 Ass'y. Black/Black, Include item 2LH Pilot Ski 5.7 Ass'y. Black/Black, Include item 2
-
1b505072174 RH Pilot Ski 6.9 Ass'y. White/WhiteRH Pilot Ski 6.9 Ass'y. White/White
-
1b505072175 LH Pilot Ski 6.9 Ass'y. White/WhiteLH Pilot Ski 6.9 Ass'y. White/White
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, Black. BlackHandle, Black. Black
-
4505071059 Handle, Viper Red, B-176. RedHandle, Viper Red, B-176. Red
-
5505072133 RetainerRetainer
-
6860200141 Carbide KitCarbide Kit
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505071779 Ski StopperSki Stopper
-
13505072717 LH Ski LegLH Ski Leg
-
13505072718 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
17505072664 Black RH Lower ArmBlack RH Lower Arm
-
17505072665 LH Lower ArmLH Lower Arm
-
18505072208 BushingBushing
-
19505072214 BushingBushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
23505072374 Upper ArmUpper Arm
-
25505072250 BushingBushing
-
26505072143 BushingBushing
-
27250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
28250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
29503189564 WasherWasher
-
30505072392 WasherWasher
-
31250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
32505072448 O-RingO-Ring
-
33505072602 StabilisatorStabilisator
-
34505072064 BushingBushing
-
35505072394 Stabilisator LeverStabilisator Lever
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072204 Double Ball Joint LinkDouble Ball Joint Link
-
39207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
40233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41505072752 Front ShockFront Shock
-
43503189308 Piston RingPiston Ring
-
44505070398 Air Valve RingAir Valve Ring
-
45505070399 ScrewScrew
-
46505070400 O-RingO-Ring
-
48505072741 Painted SpringPainted Spring
-
49503192029 Spring StopperSpring Stopper
-
51505072753 Knob AjusterKnob Ajuster
-
52205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
57503189309 Free PistonFree Piston
-
58414888312 O-RingO-Ring
-
59207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
60207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
61503189564 WasherWasher
-
62233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
63505072682 Lower Ball JointLower Ball Joint
-
64503189276 WasherWasher
-
65250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
69505072257 Upper Ball JointUpper Ball Joint
-
70293370035 CirclipCirclip
-
71293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
