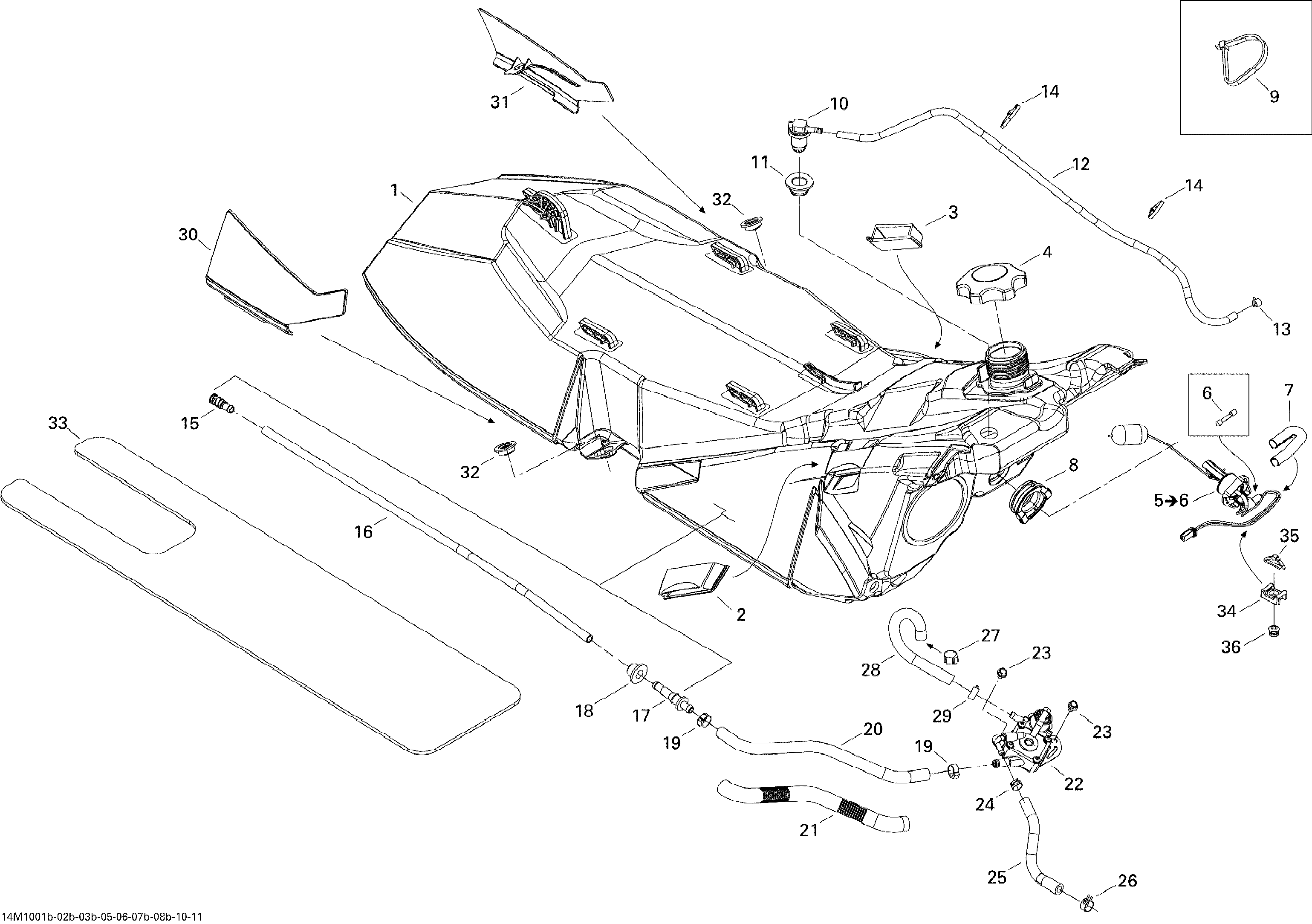

02- Fuel System 800R PTEK для BRP Ski-Doo Renegade X 800R PTEK - 2010
-
№АртикулНазвание
-
1513033574 Fuel Tank. Includes 1 to 3Fuel Tank. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033024 Fuel CapFuel Cap
-
5513033605 Fuel Sensor. Includes 5 to 6Fuel Sensor. Includes 5 to 6
-
6710001995 Fuse 0.5AFuse 0.5A
-
7415079900 Tubing 10 mmTubing 10 mm
-
8513033606 GrommetGrommet
-
9293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
10513033188 Check ValveCheck Valve
-
11513033596 GrommetGrommet
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13414554800 Spring ClampSpring Clamp
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15414872100 Fuel FilterFuel Filter
-
16513033332 HoseHose
-
17414872700 Male ConnectorMale Connector
-
18513033435 GrommetGrommet
-
19293650053 Crimp ClampCrimp Clamp
-
20513033165 HoseHose
-
21415080000 Tubing 16 mmTubing 16 mm
-
22513033184 Fuel PumpFuel Pump
-
23210261040 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
24414415200 Universal Spring ClampUniversal Spring Clamp
-
25513033327 HoseHose
-
26513033029 Spring ClampSpring Clamp
-
27293650125 Oetiker ClampOetiker Clamp
-
28513033343 HoseHose
-
29414655700 Spring ClampSpring Clamp
-
30513033418 RH CapRH Cap
-
31513033419 LH CapLH Cap
-
32513033326 Shoulder BushingShoulder Bushing
-
33513033588 FoamFoam
-
34293750031 Tie Rap MountTie Rap Mount
-
35293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
36390402000 Pop Rivet 3/16''Pop Rivet 3/16''
