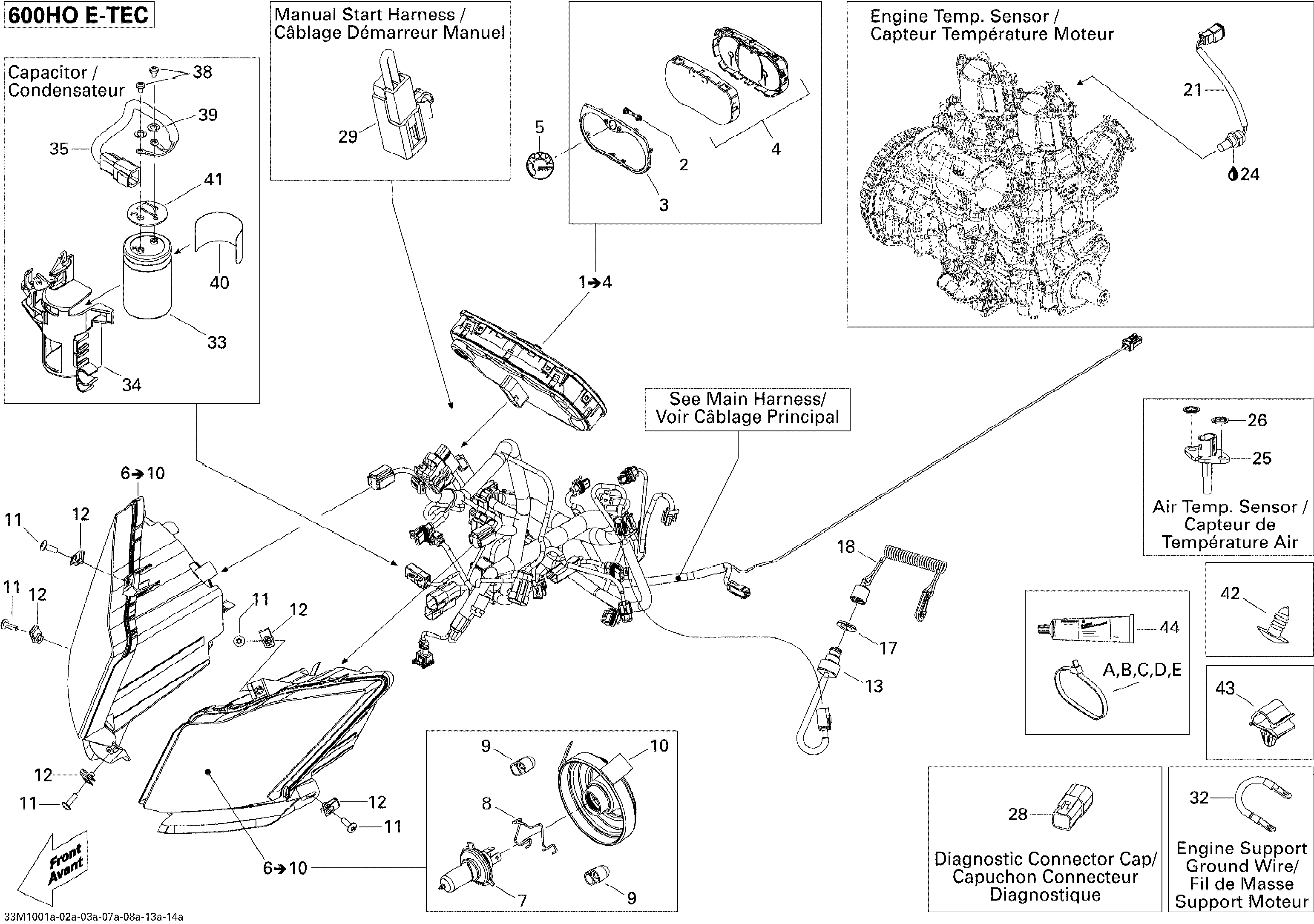

10- Electrical System 600HO ETEC для BRP Ski-Doo Summit X 600HO ETEC - 2010
-
№АртикулНазвание
-
1515176954 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess SwitchDess Switch
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176936 DESS CapDESS Cap
-
21515176398 Temperature SensorTemperature Sensor
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25515176366 Air Temperature SensorAir Temperature Sensor
-
26389804300 Push NutPush Nut
-
28515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
29515176661 Manual Start HarnessManual Start Harness
-
32515176358 Ground WireGround Wire
-
33515176349 CapacitorCapacitor
-
34515176607 Capacitor SupportCapacitor Support
-
35515176605 Capacitor HarnessCapacitor Harness
-
38250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
39250200026 Lock washerLock washer
-
40516002976 Capacitor DecalCapacitor Decal
-
41515176351 CapCap
-
42414644300 DartDart
-
43515176795 ClipClip
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
A414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
B293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
C293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
E293750009 Tie-Rap 173 mmTie-Rap 173 mm
