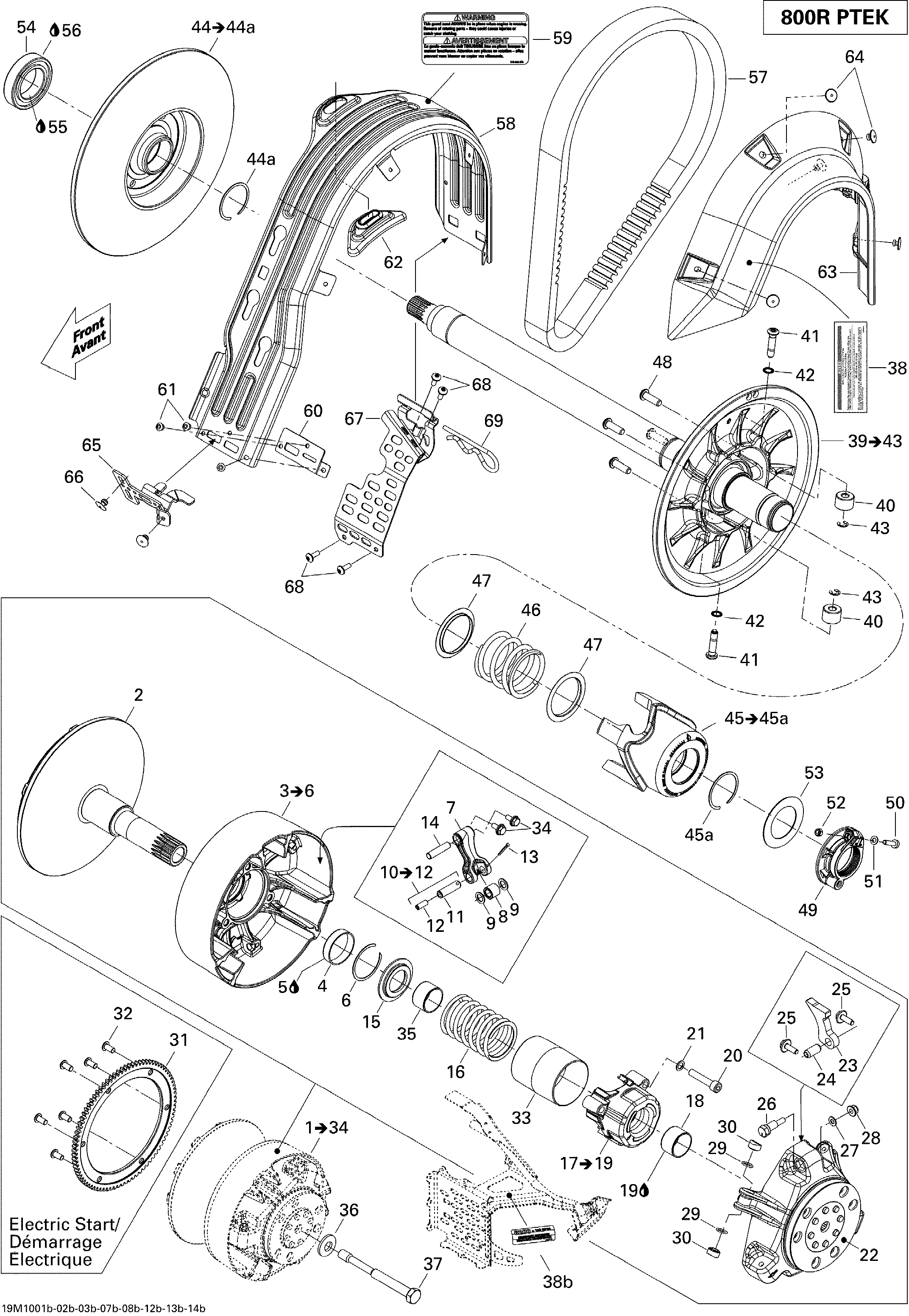

05- Pulley System 800R PTEK для BRP Ski-Doo Summit X 800R PTEK - 2010
-
№АртикулНазвание
-
2417222966 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223065 Sliding Flanged Ass'y. Includes 3 to 6Sliding Flanged Ass'y. Includes 3 to 6
-
4417223086 CushionCushion
-
5293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
6293370037 CirclipCirclip
-
7417222671 LeverLever
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417223177 Dowel Pin Ass'y. Includes 10 to 12Dowel Pin Ass'y. Includes 10 to 12
-
11417222595 Threaded Pin, M6Threaded Pin, M6
-
12250000407 Socket Set Screw M6 X 12Socket Set Screw M6 X 12
-
13732958001 Cotter PinCotter Pin
-
14417223164 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414762800 Spring, Green/violetSpring, Green/violet
-
17417222759 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417223200 Governor Cup Ass'yGovernor Cup Ass'y
-
23417223098 Ramp 441Ramp 441
-
24250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
25250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
26417223197 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417222952 Ring Gear. With Electric StarterRing Gear. With Electric Starter
-
32250000243 Torx Screw M8 X 16, Scotch Grip. With Electric StarterTorx Screw M8 X 16, Scotch Grip. With Electric Starter
-
33417009205 GuardGuard
-
34250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
35417222826 BushingBushing
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417300394 Drive Bolt PulleyDrive Bolt Pulley
-
38516003708 Decal, Notice, Drive Pulley BoltDecal, Notice, Drive Pulley Bolt
-
38b516004045 Decal RPM, Maximum HorsepowerDecal RPM, Maximum Horsepower
-
39417127174 Fixe Flange Ass'y. Includes 39 to 43Fixe Flange Ass'y. Includes 39 to 43
-
40417127016 RollerRoller
-
41417127128 StudStud
-
42250200009 Lock Washer 8 mmLock Washer 8 mm
-
43414753500 CirclipCirclip
-
44417126955 Sliding Flange Ass'y. Includes 44 to 44aSliding Flange Ass'y. Includes 44 to 44a
-
44a293370049 CirclipCirclip
-
45417127133 Cam Ass'y. Includes 45 to 45aCam Ass'y. Includes 45 to 45a
-
45a293370049 CirclipCirclip
-
46417127062 SpringSpring
-
47417127116 Swivel AbutmentSwivel Abutment
-
48250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
49417127173 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
50208652044 Phillips Screw M5 X 20Phillips Screw M5 X 20
-
51234051410 Flat Washer M5Flat Washer M5
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53417127155 WasherWasher
-
54504152574 Ball BearingBall Bearing
-
55413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
56293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
57417300377 BeltBelt
-
58417300357 Belt GuardBelt Guard
-
59516002670 Warning Decal, Security Belt GuardWarning Decal, Security Belt Guard
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop RivetPop Rivet
-
65417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
66293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
67417300375 Belt Guard BracketBelt Guard Bracket
-
68250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
69114045200 Hair PinHair Pin
