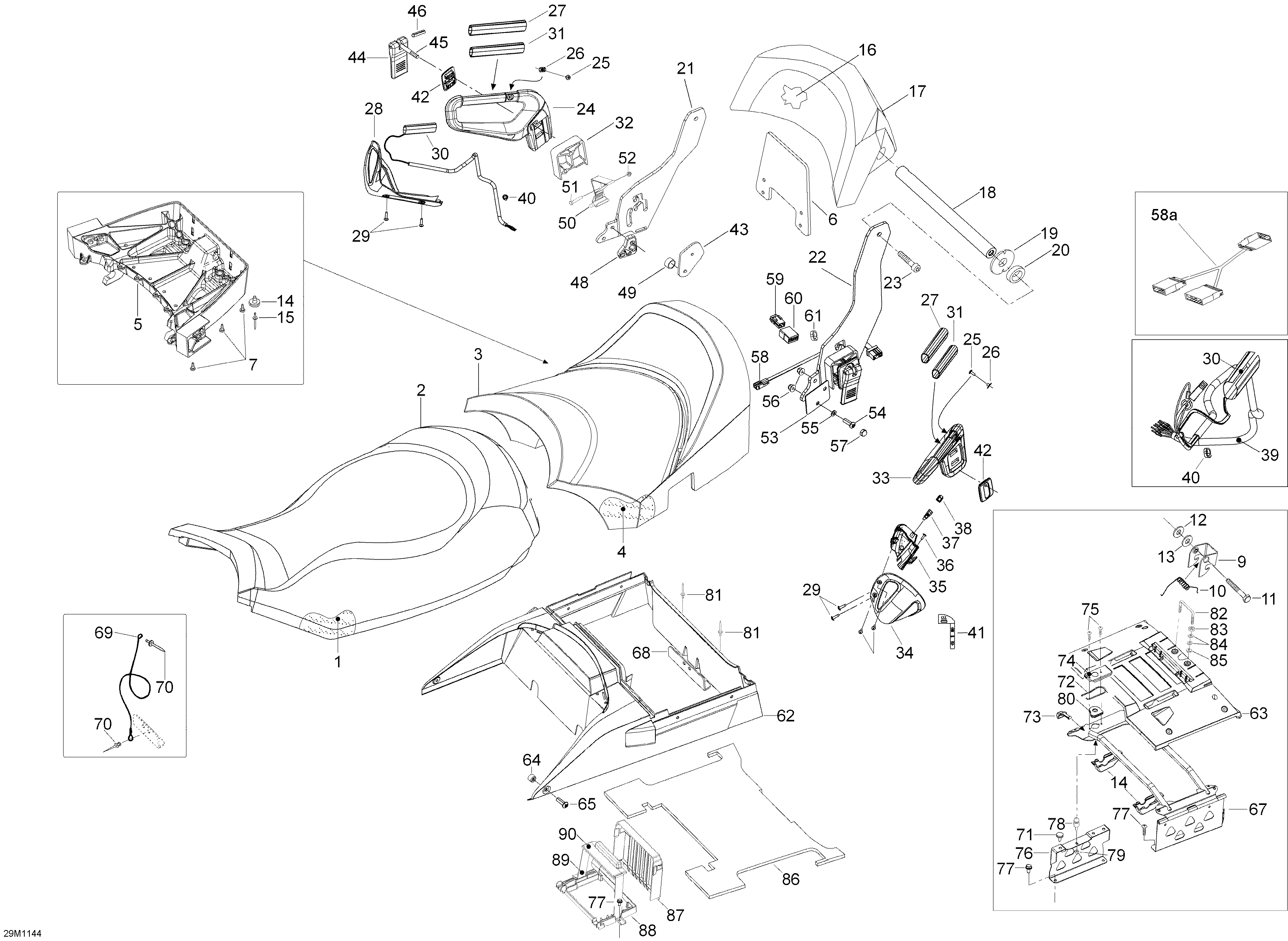

09- Seat для BRP Ski-Doo Expedition LE 1200 XU - 2011
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005327 Front Cover SeatFront Cover Seat
-
3510005320 Rear Seat Cover XURear Seat Cover XU
-
4510004871 Foam SeatFoam Seat
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7414644300 DartDart
-
9708000144 Latch, BlackLatch, Black
-
10708000922 SpringSpring
-
11207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
12732610072 Push NutPush Nut
-
13234061410 Flat Washer 6 mmFlat Washer 6 mm
-
14510004999 CoverCover
-
15293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
16510004985 Foam BackrestFoam Backrest
-
17510005259 Backrest Cover XU GRANDBackrest Cover XU GRAND
-
19510005312 Limiter PlateLimiter Plate
-
20510004378 Rubber ShimRubber Shim
-
21510004988 RH ArmRH Arm
-
22510004989 LH ArmLH Arm
-
23205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
24510004948 RH HandleRH Handle
-
25250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
26293100003 Nut M6Nut M6
-
27510004449 Handle GripHandle Grip
-
28510004415 RH DeflectorRH Deflector
-
29250000199 Screw 25mmScrew 25mm
-
30515176393 HeaterHeater
-
31510004709 Handle ReinforforcementHandle Reinforforcement
-
32510004939 AdapterAdapter
-
33510004947 LH HandleLH Handle
-
34510004416 LH DeflectorLH Deflector
-
35510004566 Switch HousingSwitch Housing
-
36250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
37510004413 Rocker SwitchRocker Switch
-
38510004414 Switch ProtectorSwitch Protector
-
39515176241 LH Handle HarnessLH Handle Harness
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41516002835 Handle Heater DecalHandle Heater Decal
-
42510004405 MouldingMoulding
-
43510004990 Counter PlateCounter Plate
-
44510004992 Lock Ass'yLock Ass'y
-
48510005151 AdapterAdapter
-
49510005042 SleeveSleeve
-
50510005139 Security LockSecurity Lock
-
51205064044 Socket Screw HD.DIN.912Socket Screw HD.DIN.912
-
52M33010 Nut Elastic M6Nut Elastic M6
-
53510004995 Cover PlateCover Plate
-
54207086044 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
55234081410 Flat Washer 8 mmFlat Washer 8 mm
-
56233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
57M28056 CapCap
-
58a515176748 Seat Plug HarnessSeat Plug Harness
-
58515176747 Seat HarnessSeat Harness
-
59515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
60515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
61414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62510004874 Storage Box XUStorage Box XU
-
63510004875 Storage Box Cover XUStorage Box Cover XU
-
64510005147 BushingBushing
-
65250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
67510004951 Fastening Tube PaintFastening Tube Paint
-
68510005156 Cable Support PlateCable Support Plate
-
69M546777 Retainer CableRetainer Cable
-
70390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
71605452114 PlugPlug
-
72269700017 Latch SpringLatch Spring
-
73510005072 PullerPuller
-
74510005112 Lock Pin CoverLock Pin Cover
-
75732600030 ScrewScrew
-
76510004998 Locking Plate (Frame)Locking Plate (Frame)
-
77207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
78605452035 Lock PinLock Pin
-
79233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
80510005044 Lock Pin GuideLock Pin Guide
-
81293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
82510004876 Fastener PinFastener Pin
-
83250000135 Hex. Nut M6Hex. Nut M6
-
84M20117 WasherWasher
-
85M33010 Nut Elastic M6Nut Elastic M6
-
86510005043 FoamFoam
-
87510005079 Battery CoverBattery Cover
-
88515176804 Battery SupportBattery Support
-
89510005143 Battery StrapBattery Strap
-
90510005146 Strap CoverStrap Cover
