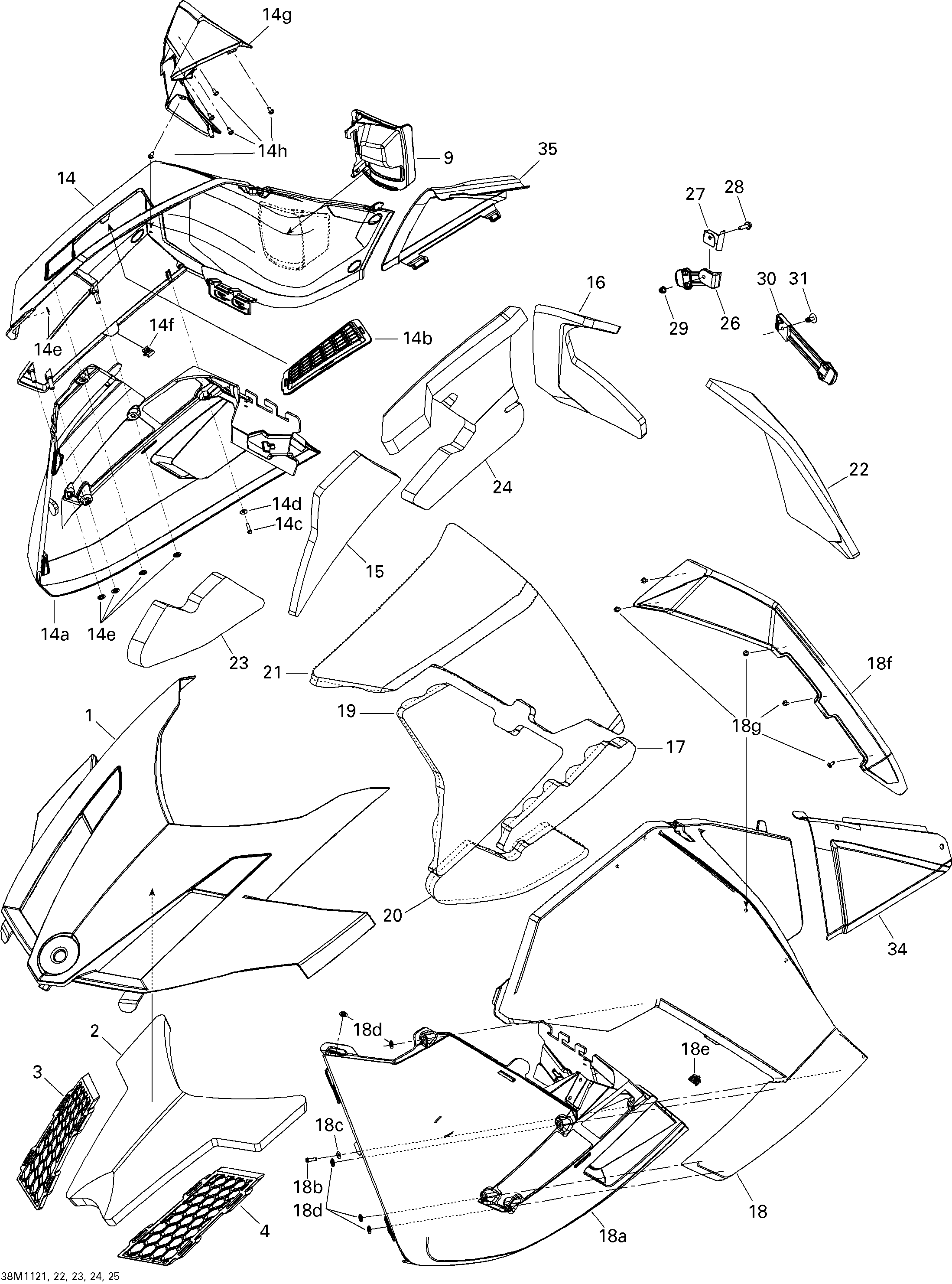

09- Hood для BRP Ski-Doo Grand Touring LE 600HO ETEC XR - 2011
-
№АртикулНазвание
-
1517303739 Hood, BlackHood, Black
-
2517304893 Hood FoamHood Foam
-
3517303805 RH Hood GrillRH Hood Grill
-
4517303804 LH Hood GrillLH Hood Grill
-
14517304006 RH Pannel, BlackRH Pannel, Black
-
14a517304373 RH Pannel MouldingRH Pannel Moulding
-
14b517303801 Pannel GrillPannel Grill
-
14c241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
14d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14e732610072 Push NutPush Nut
-
14f517302785 ClipClip
-
14g517304197 RH Side Wind DeflectorRH Side Wind Deflector
-
14h732601210 Hex. Flanged Screw #8 X 3/8Hex. Flanged Screw #8 X 3/8
-
15517304894 Central Foam Panel RHCentral Foam Panel RH
-
16517304895 Rear Panel Foam RHRear Panel Foam RH
-
17517304897 Central Foam Panel LHCentral Foam Panel LH
-
18517304260 LH Pannel, BlackLH Pannel, Black
-
18a517304362 LH Pannel MouldingLH Pannel Moulding
-
18b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
18c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
18d732610072 Push NutPush Nut
-
18e517302785 ClipClip
-
18f517304196 LH Side Wind DeflectorLH Side Wind Deflector
-
18g732601210 Hex. Flanged Screw #8 X 3/8Hex. Flanged Screw #8 X 3/8
-
19517304899 LH Central Panel FoamLH Central Panel Foam
-
20517304901 LH Lower Panel FoamLH Lower Panel Foam
-
21517304902 LH Upper Panel FoamLH Upper Panel Foam
-
22517304904 LH Rear Panel FoamLH Rear Panel Foam
-
23517304905 RH Lower Panel FoamRH Lower Panel Foam
-
24517304908 RH Upper Panel FoamRH Upper Panel Foam
-
26517303612 Panel LatchPanel Latch
-
27517304221 Latch SupportLatch Support
-
28207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
29233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
30517303808 Panel LatchPanel Latch
-
31293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
34517304123 LH Fuel Tank MouldingLH Fuel Tank Moulding
-
35517304124 RH Fuel Tank MouldingRH Fuel Tank Moulding
