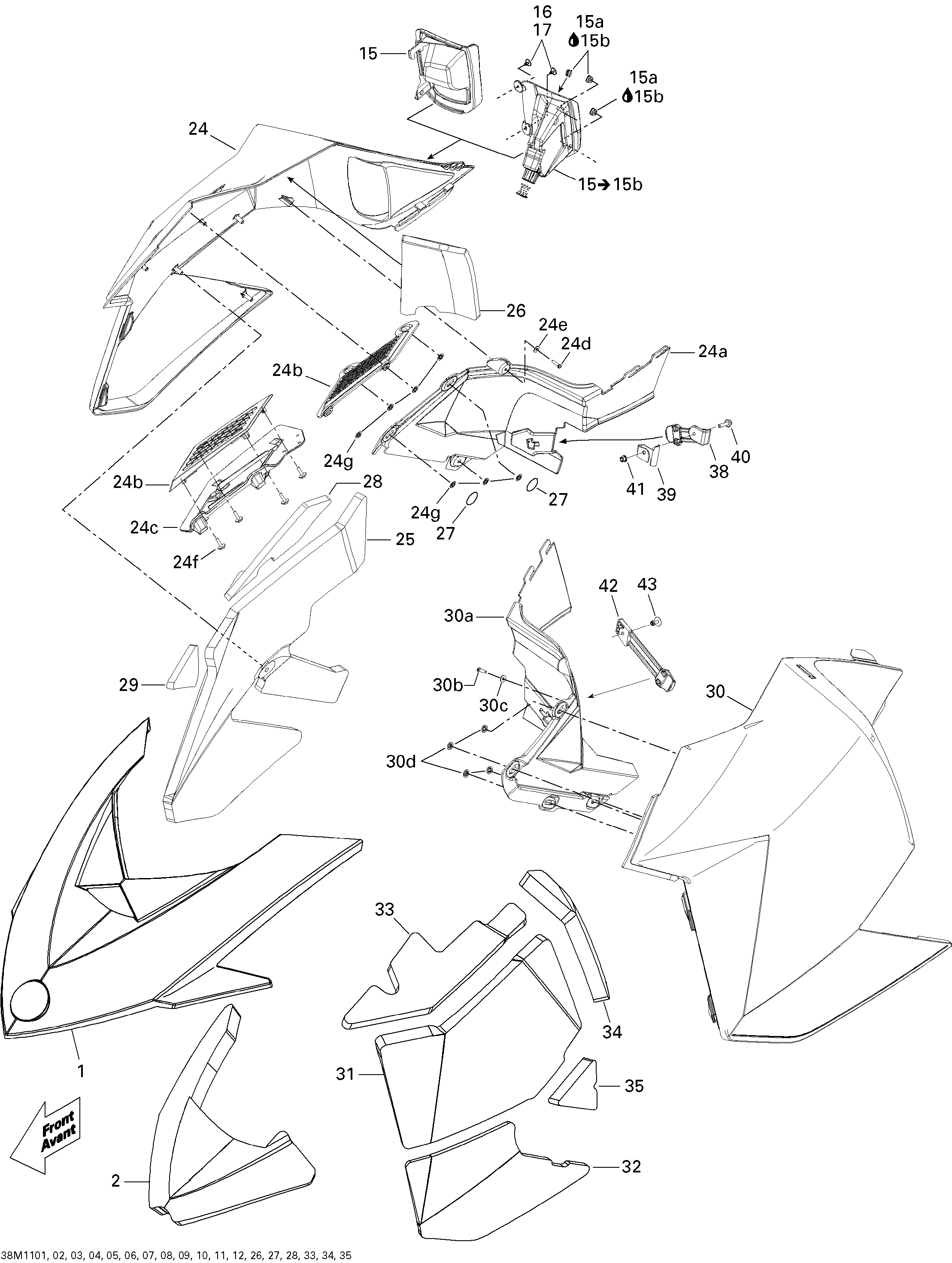

09- Hood для BRP Ski-Doo MX Z SPORT 600 - 2011
-
№АртикулНазвание
-
1517304198 HoodHood
-
2517304881 Hood FoamHood Foam
-
15517304322 RH ConsoleRH Console
-
15a275500241 Cap, BlackCap, Black
-
15b413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
16250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24517304029 RH Panel, Deep BlackRH Panel, Deep Black
-
24a517303671 RH Moulding Panel, Deep BlackRH Moulding Panel, Deep Black
-
24b517303622 GrillGrill
-
24d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24g732610072 Push NutPush Nut
-
25517304883 RH Center FoamRH Center Foam
-
26517304884 RH Panel Rear FoamRH Panel Rear Foam
-
27518325560 Adhesive PatchAdhesive Patch
-
30517304030 LH Panel, Deep BlackLH Panel, Deep Black
-
30a517303673 LH Moulding Panel, Deep BlackLH Moulding Panel, Deep Black
-
30b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
30c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
30d732610072 Push NutPush Nut
-
31517304887 LH Panel Center FoamLH Panel Center Foam
-
32517304888 LH Panel Lower FoamLH Panel Lower Foam
-
33517304889 LH Panel Upper FoamLH Panel Upper Foam
-
34517304890 LH Panel Rear FoamLH Panel Rear Foam
-
35517304891 FoamFoam
-
38517303612 Panel LatchPanel Latch
-
39517304221 Latch SupportLatch Support
-
40207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
42517303808 Panel LatchPanel Latch
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
