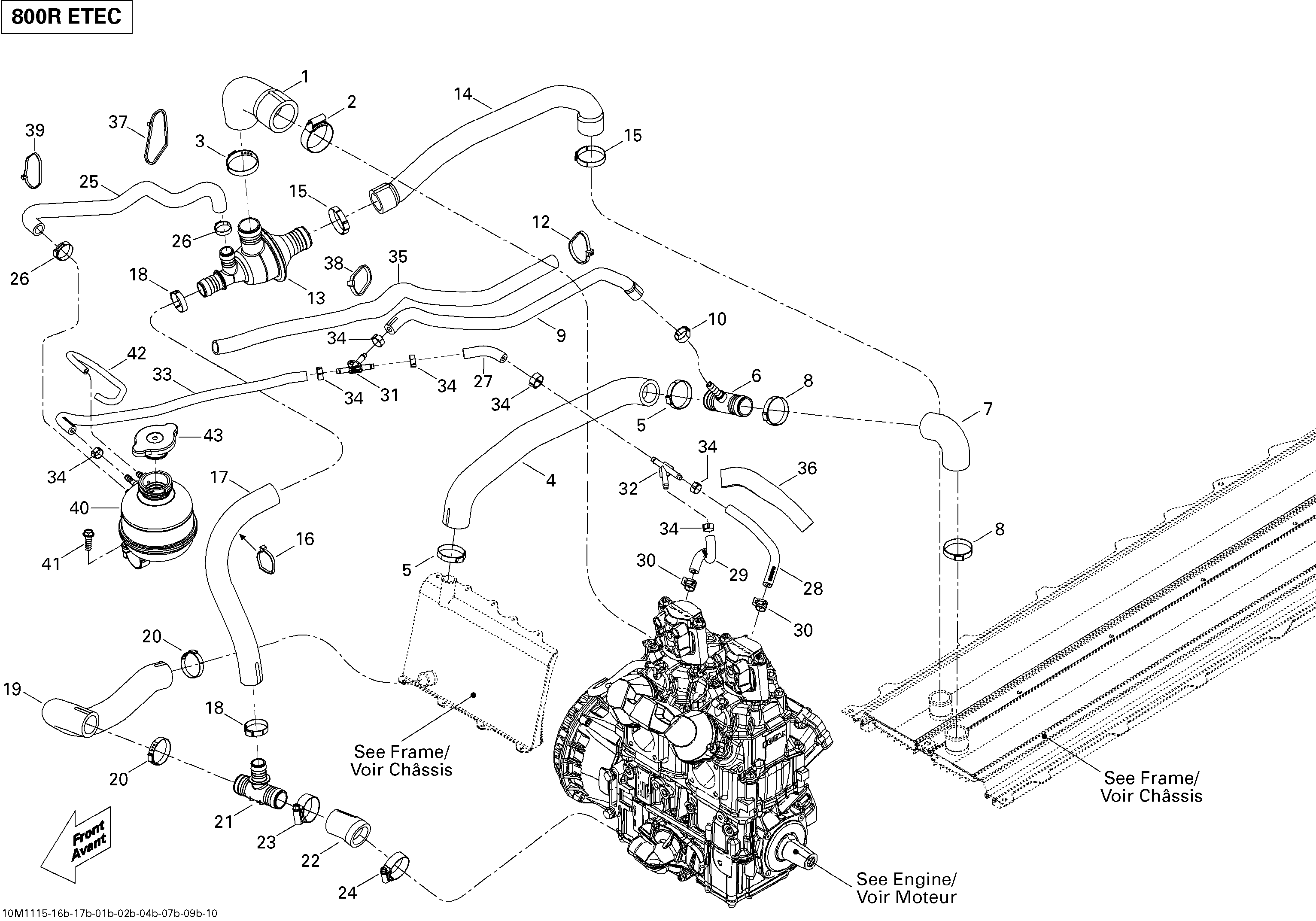

01- Cooling System 800RETEC для BRP Ski-Doo MX Z TNT 800R ETEC - 2011
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000529 Oetiker Gear ClampOetiker Gear Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Oetiker Gear ClampOetiker Gear Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000529 Oetiker Gear ClampOetiker Gear Clamp
-
9509000502 Bleeder HoseBleeder Hose
-
10293650047 Oetiker ClampOetiker Clamp
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13509000499 Thermostat HousingThermostat Housing
-
14509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
15509000529 Oetiker Gear ClampOetiker Gear Clamp
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17509000672 Bypass HoseBypass Hose
-
18293650099 Oetiker Gear ClampOetiker Gear Clamp
-
19509000673 Radiator HoseRadiator Hose
-
20509000529 Oetiker Gear ClampOetiker Gear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000674 Engine Inlet Hose RadiatorEngine Inlet Hose Radiator
-
23509000443 Aba Gear ClampAba Gear Clamp
-
24509000443 Aba Gear ClampAba Gear Clamp
-
25509000759 Filling HoseFilling Hose
-
26509000442 Oetiker Gear ClampOetiker Gear Clamp
-
27509000775 Hose, 6.4 mmHose, 6.4 mm
-
28509000769 Bleeder HoseBleeder Hose
-
29509000768 Bleeder HoseBleeder Hose
-
30293650046 Oetiker ClampOetiker Clamp
-
31293710140 ''Y'' Connector''Y'' Connector
-
32293710059 Y-FittingY-Fitting
-
33509000770 Bleeder HoseBleeder Hose
-
34293650046 Oetiker ClampOetiker Clamp
-
35415080000 Tubing 16 mmTubing 16 mm
-
36513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
37293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40509000368 Coolant TankCoolant Tank
-
41241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
42415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
43509000187 Pressure CapPressure Cap
