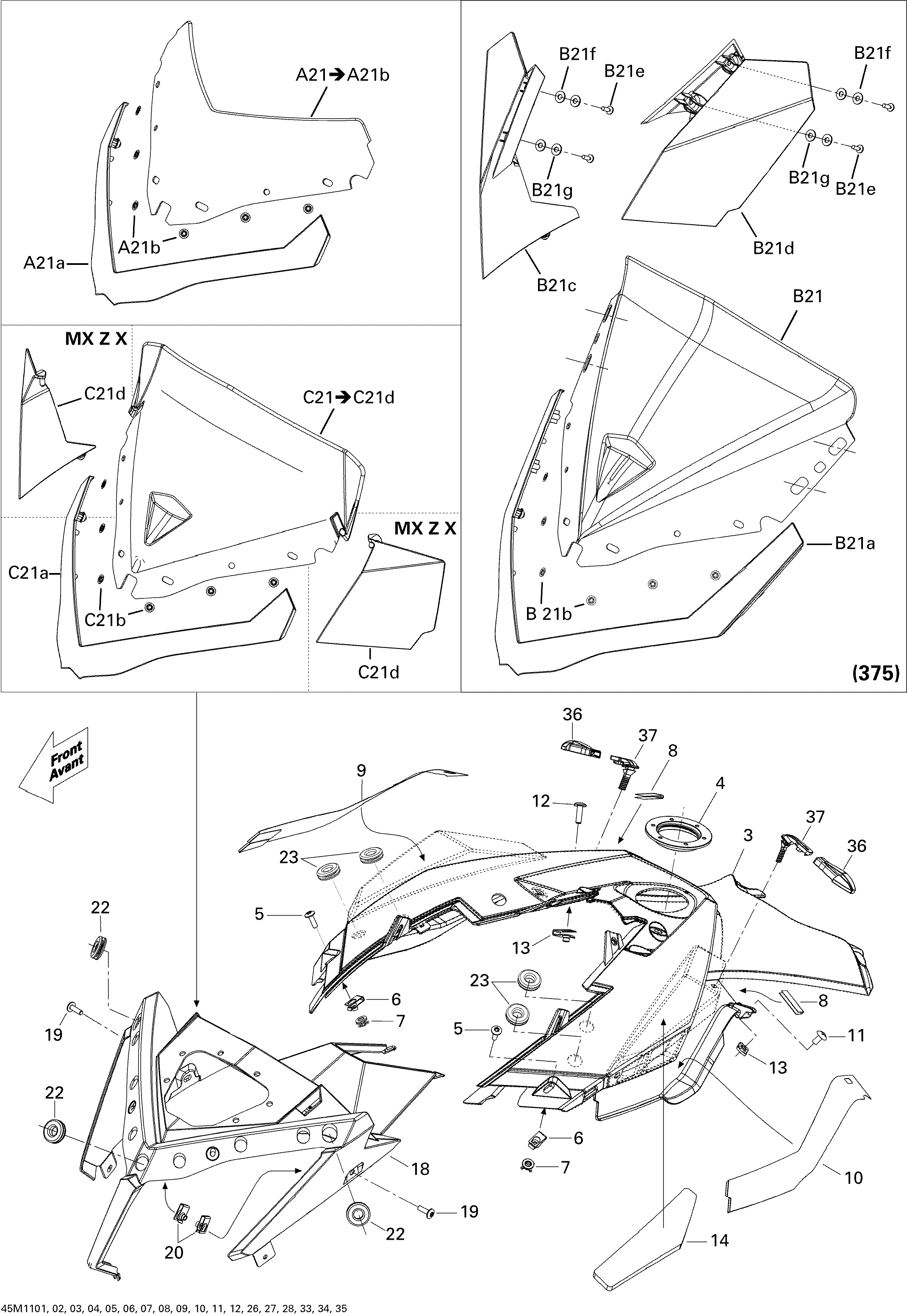

09- Windshield And Console 800R PTEK для BRP Ski-Doo MX Z TNT 800R PTEK - 2011
-
№АртикулНазвание
-
3517304635 White Console. 800RWhite Console. 800R
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304575 Gauge SupportGauge Support
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
B21860200478 Windsheld Kit 375. Includes B21 to B21gWindsheld Kit 375. Includes B21 to B21g
-
B21517304395 Windsheld 375mm. Windshield OnlyWindsheld 375mm. Windshield Only
-
B21a517303607 Windshield SupportWindshield Support
-
B21b732610072 Push NutPush Nut
-
B21c517303604 RH Air DeflectorRH Air Deflector
-
B21d517303605 LH Air DeflectorLH Air Deflector
-
B21e250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
B21f250200025 Washer M5Washer M5
-
B21g250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
23517303756 GrommetGrommet
-
36860200239 Black Latch KitBlack Latch Kit
-
37517303981 Panel LatchPanel Latch
