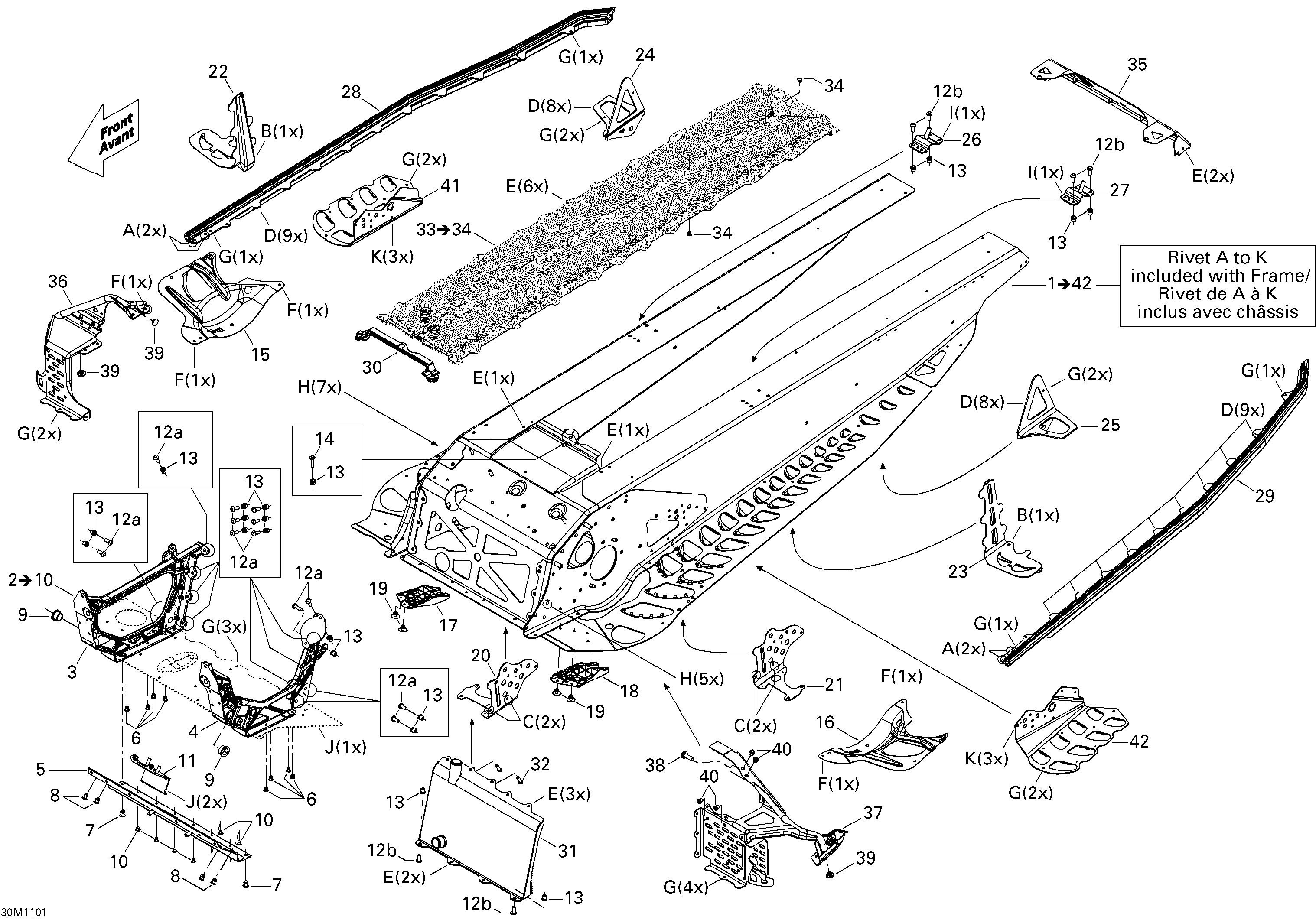

09- Frame для BRP Ski-Doo MX Z X-RS 600HO ETEC - 2011
-
№АртикулНазвание
-
1415129570 Frame Ass'y, 120''. Includes 1 to 42Frame Ass'y, 120''. Includes 1 to 42
-
2518326290 E Module Ass'y. Includes 2 to 10E Module Ass'y. Includes 2 to 10
-
3518325922 RH MemberRH Member
-
4518325923 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326616 RH Front RetainerRH Front Retainer
-
21518326617 LH Front RetainerLH Front Retainer
-
22518325747 RH ReinforcementRH Reinforcement
-
23518325748 LH ReinforcementLH Reinforcement
-
24518324885 RH Slide BracketRH Slide Bracket
-
25518324886 LH Slide BracketLH Slide Bracket
-
26518325973 RH Rear BaseRH Rear Base
-
27518325974 LH Rear BaseLH Rear Base
-
28518326282 RH Foot RollerRH Foot Roller
-
29518326283 LH Foot RollerLH Foot Roller
-
30518326656 SealSeal
-
31518326486 Front RadiatorFront Radiator
-
32250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
33518325666 Rear Radiator Ass'y. Includes 33 to 34Rear Radiator Ass'y. Includes 33 to 34
-
34293150144 Stavex RivetStavex Rivet
-
35518325421 Rear CapRear Cap
-
36518326216 RH StirupRH Stirup
-
37518326239 LH StirupLH Stirup
-
38250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
39293730042 DartDart
-
40293450268 InsertInsert
-
41518326614 RH Footrest LinerRH Footrest Liner
-
42518326615 LH Footrest LinerLH Footrest Liner
-
A390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
E390909200 Avex RivetAvex Rivet
-
F390909100 Avex RivetAvex Rivet
-
G293150144 Stavex RivetStavex Rivet
-
H293150146 Henrob RivetHenrob Rivet
-
I293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
J293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
K293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
