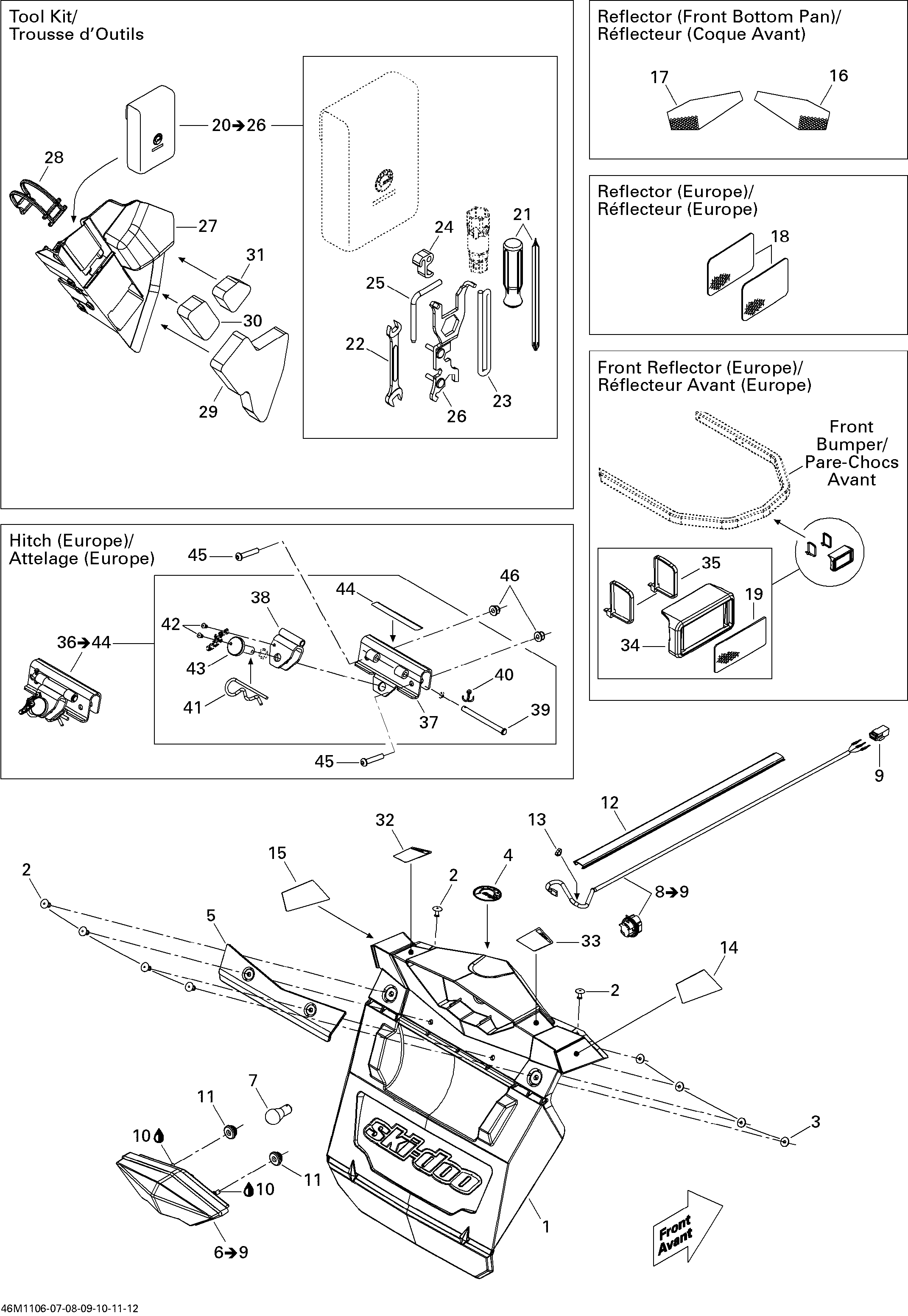

09- Utilities для BRP Ski-Doo Renegade Adrenaline 600HO ETEC - 2011
-
№АртикулНазвание
-
1520000971 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000680 Wiring Harness. Includes 8 to 9Wiring Harness. Includes 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11705003666 Rubber GrommetRubber Grommet
-
12520000829 Radiator TrimRadiator Trim
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14520000706 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
14520000716 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
15520000707 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
15520000717 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
16520000718 RH Front ReflectorRH Front Reflector
-
17520000719 LH Front ReflectorLH Front Reflector
-
18520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
19415037900 Reflector, White. EuropeReflector, White. Europe
-
20529000054 Tool Kit. Includes 20 to 26Tool Kit. Includes 20 to 26
-
21529000004 Screw DriverScrew Driver
-
22529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
23412500200 Starter Rope, MeterStarter Rope, Meter
-
24529019400 Starter GripStarter Grip
-
25520001028 Spacing ToolSpacing Tool
-
26520000988 Wrench SuspensionWrench Suspension
-
27520000842 Tool Kit RackTool Kit Rack
-
28520000528 LatchLatch
-
29520001059 FoamFoam
-
30520001061 FoamFoam
-
31520001062 FoamFoam
-
32516004550 Warning Decal, SecurityWarning Decal, Security
-
33516004601 Warning Decal, SecurityWarning Decal, Security
-
34520000871 Reflector Support. EuropeReflector Support. Europe
-
35293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
37511000554 Support. EuropeSupport. Europe
-
38511000588 Hitch Plate. EuropeHitch Plate. Europe
-
39511000520 Clevis Pin. EuropeClevis Pin. Europe
-
40371800200 Cotter Pin. EuropeCotter Pin. Europe
-
41114045200 Hair Pin. EuropeHair Pin. Europe
-
42390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
43511000555 Pin. EuropePin. Europe
-
44516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
45205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
46233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
