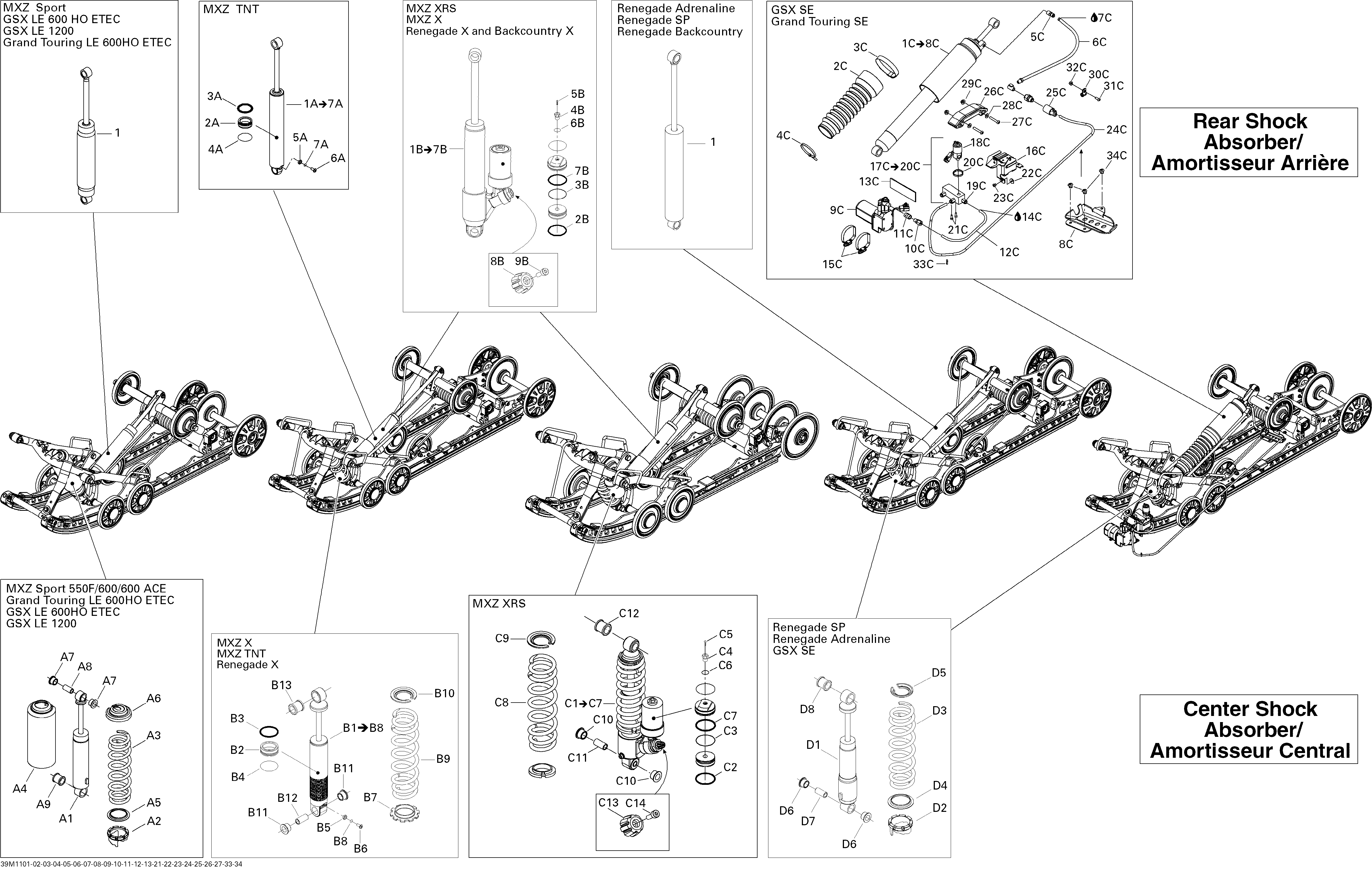

08- Rear Suspension Shocks для BRP Ski-Doo Renegade BackCountry, BackCountry X 600HO ETEC - 2011
-
№АртикулНазвание
-
1503192037 Rear Shock. Back Country ModelRear Shock. Back Country Model
-
1b503192205 Rear Shock. Back Country X , Includes 1B to 7BRear Shock. Back Country X , Includes 1B to 7B
-
2b415093807 O-RingO-Ring
-
3b415093806 Piston RingPiston Ring
-
4b505070398 Air Valve RingAir Valve Ring
-
5b505070399 ScrewScrew
-
6b505070400 O-RingO-Ring
-
7b415093804 O-RingO-Ring
-
8b505072753 Knob AjusterKnob Ajuster
-
9b205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
B1503192035 Center Shock. Back Country X Model, Includes B1 to B8Center Shock. Back Country X Model, Includes B1 to B8
-
B2503189309 Free PistonFree Piston
-
B3414888312 O-RingO-Ring
-
B4503189308 Piston RingPiston Ring
-
B5505070398 Air Valve RingAir Valve Ring
-
B6505070399 ScrewScrew
-
B7414888316 Spring CollarSpring Collar
-
B8505070400 O-RingO-Ring
-
B9503191879 SpringSpring
-
B10503192029 Spring StopperSpring Stopper
-
B11503189117 CushionCushion
-
B12503189282 BushingBushing
-
B13503189271 CushionCushion
-
D1503192504 Center Shock. Back Country ModelCenter Shock. Back Country Model
-
D2505070150 Adjustment CamAdjustment Cam
-
D3503191879 SpringSpring
-
D4503191872 Spring GuideSpring Guide
-
D5503192029 Spring StopperSpring Stopper
-
D6503189117 CushionCushion
-
D7503189282 BushingBushing
-
D8503189271 CushionCushion
