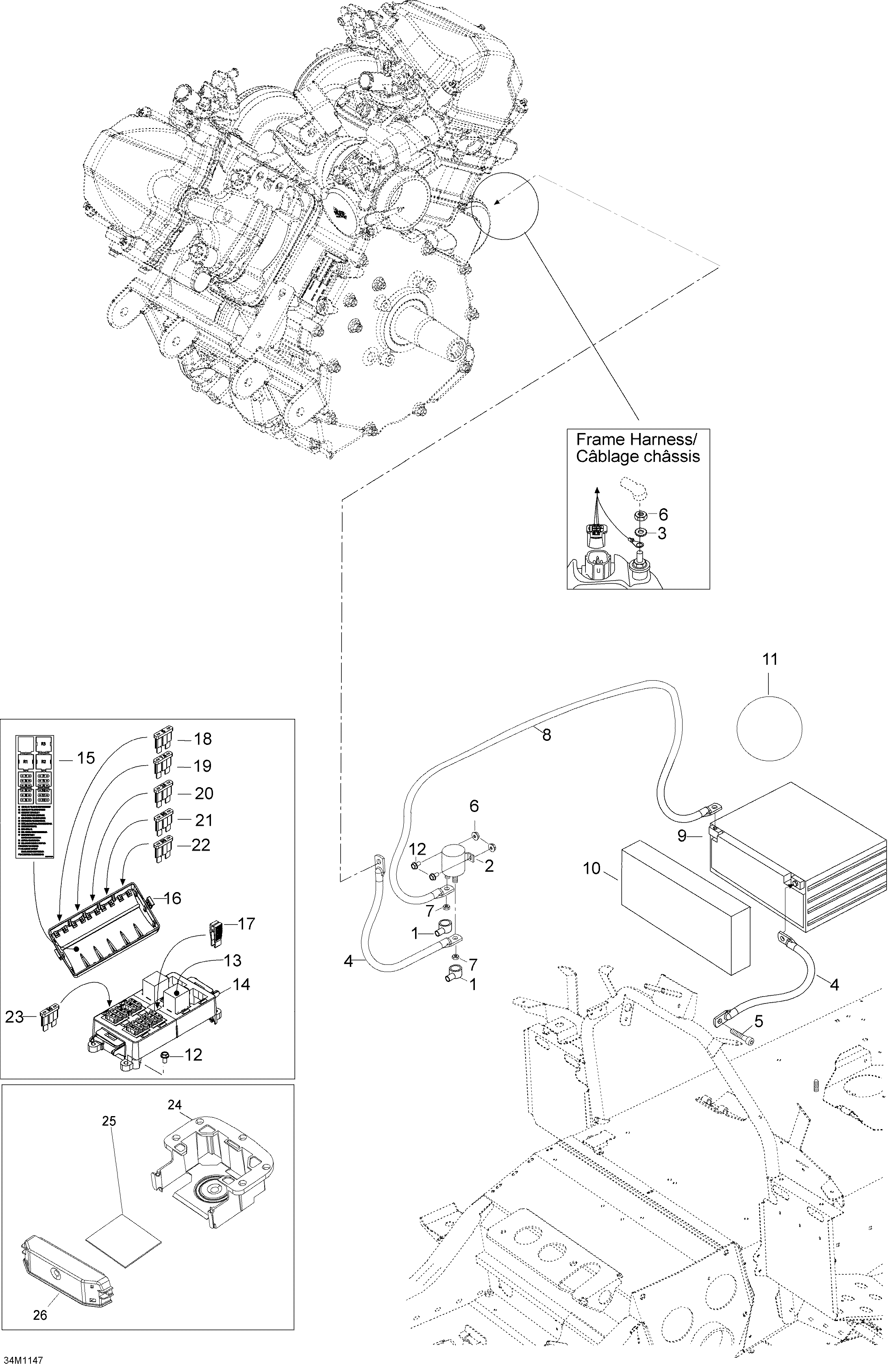

10- Battery And Starter для BRP Ski-Doo Skandic SWT V800 YetiII - 2011
-
№АртикулНазвание
-
1570151000 Protection CapProtection Cap
-
2515176011 Starter RelayStarter Relay
-
3M20017 Serrated Lock WasherSerrated Lock Washer
-
4605455189 Ground WireGround Wire
-
5M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8605355251 Battery WireBattery Wire
-
9410922962 Battery, 12 Volts, 21 Amperes. Includes 9aBattery, 12 Volts, 21 Amperes. Includes 9a
-
9a295500849 Battery Fastener Kit. Not ShownBattery Fastener Kit. Not Shown
-
10605352572 CoverCover
-
11605676001 O'Ring 130 X6,0O'Ring 130 X6,0
-
12207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
13410113604 RelayRelay
-
14515176065 Fuse Box BaseFuse Box Base
-
15605454618 Fuse DecalFuse Decal
-
16515176066 CoverCover
-
17515175811 Fuse ToolFuse Tool
-
18M42044 Fuse 1 AFuse 1 A
-
19278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
20278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
21409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
22410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
23710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
24605255588 Battery SupportBattery Support
-
25605355846 FoamFoam
-
26605255586 Battery CoverBattery Cover
