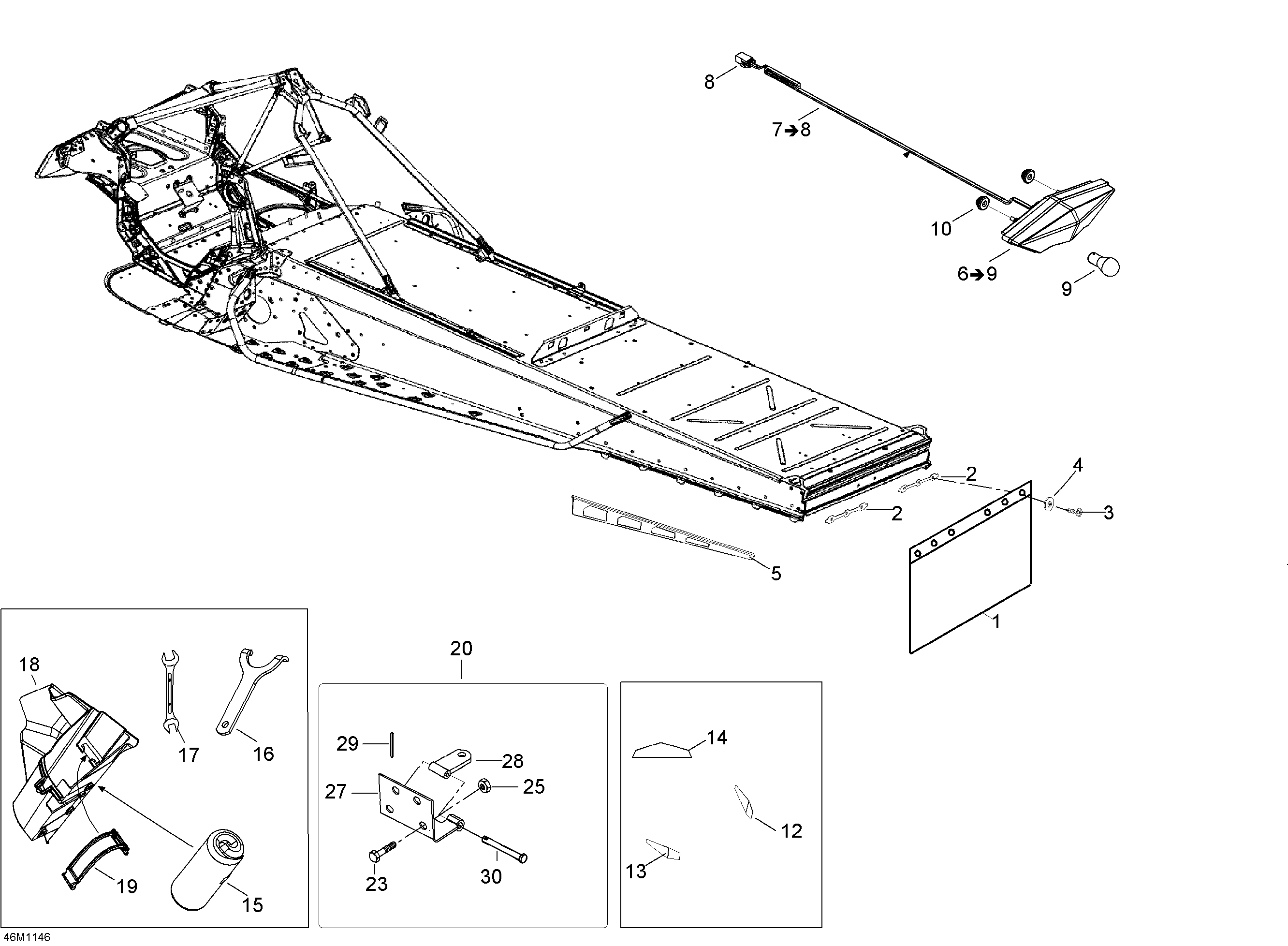

09- Utilities для BRP Ski-Doo Skandic WT 600 ACE XU - 2011
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2520000847 Threaded PlateThreaded Plate
-
3250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6520000848 Rear LightRear Light
-
7520000677 Wiring HarnessWiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705003666 Rubber GrommetRubber Grommet
-
12520000843 RH ReflectorRH Reflector
-
13520000844 LH ReflectorLH Reflector
-
14705003412 Red ReflectorRed Reflector
-
15529000055 Tool KitTool Kit
-
16529035582 Adjustment WrenchAdjustment Wrench
-
18520000720 Tool Kit RackTool Kit Rack
-
19520000528 LatchLatch
-
205344152 Tongue Ass'yTongue Ass'y
-
23207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27M5344151 PlatePlate
-
28M548745 Hitch PlateHitch Plate
-
29M41031 PinPin
-
30560309200 Pin-RetainerPin-Retainer
