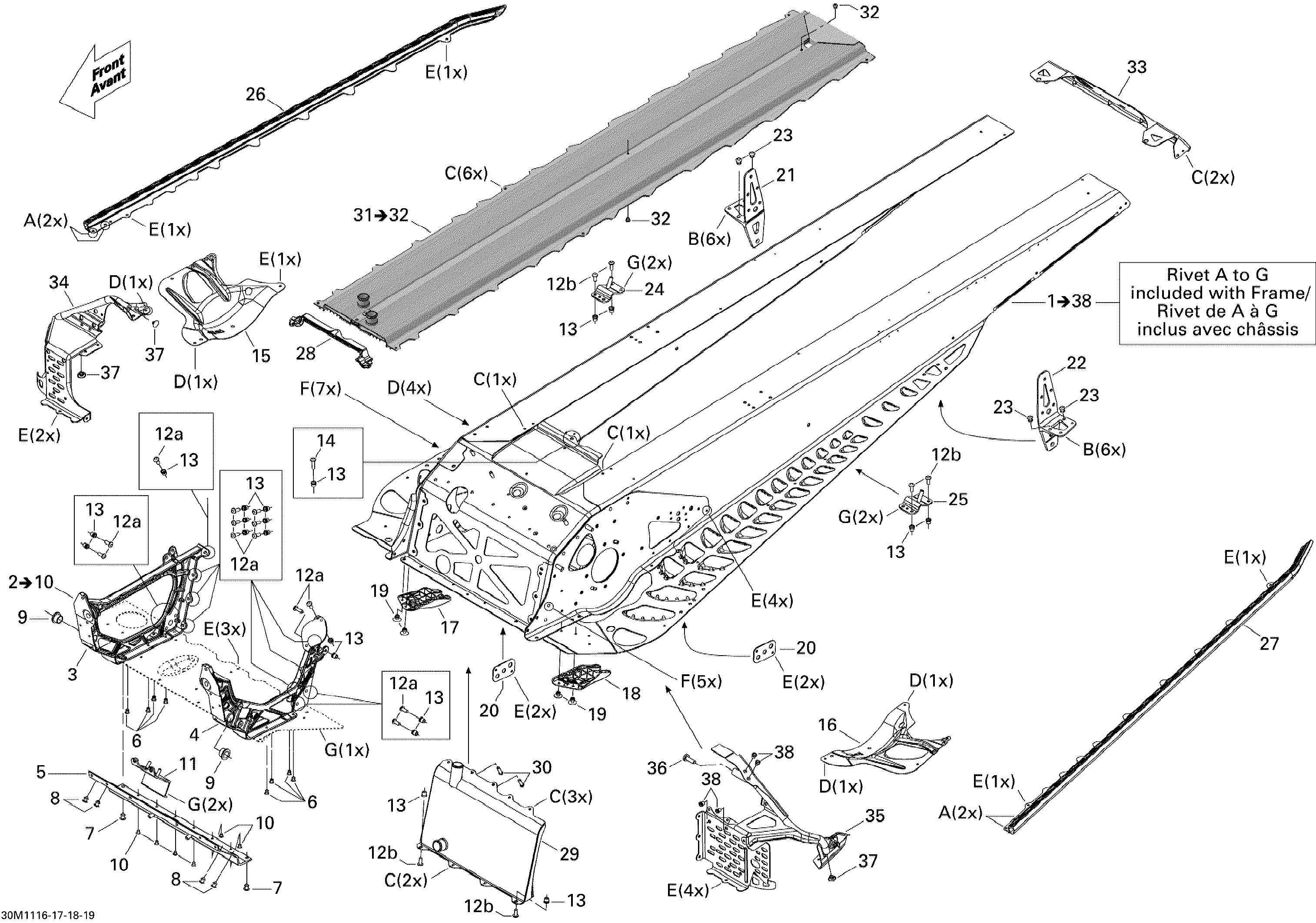

09- Frame для BRP Ski-Doo Summit EVEREST 800R P-TEK - 2011

№

Артикул

Название
1

415129582 Frame 146''. Includes 1 to 38, Track 146''

Frame 146''. Includes 1 to 38, Track 146''

0 ₽
1

415129581 Frame 154''. Includes 1 to 38, Track 154''

Frame 154''. Includes 1 to 38, Track 154''

0 ₽
1

415129580 Frame 163''. Includes 1 to 38, Track 163''

Frame 163''. Includes 1 to 38, Track 163''

374 560 ₽
2

518326290 E Module Ass'y. Includes 2 to 10

E Module Ass'y. Includes 2 to 10

0 ₽
3

518325922 RH Member

RH Member

0 ₽
4

518325923 LH Member

LH Member

0 ₽
5

518326198 Front Member

Front Member

4 940 ₽
6

293150144 Stavex Rivet

Stavex Rivet

310 ₽
7

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm

2 410 ₽
8

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 540 ₽
9

505070954 Cushion

Cushion

0 ₽
11

518325943 MAG Engine Support

MAG Engine Support

8 650 ₽
12a

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
12b

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16

270 ₽
13

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
14

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
15

518324874 RH Reinforcement

RH Reinforcement

8 650 ₽
16

518324875 LH Reinforcement

LH Reinforcement

8 650 ₽
17

518325782 RH Deflector

RH Deflector

3 960 ₽
18

518325783 LH Deflector

LH Deflector

3 960 ₽
19

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
20

518201321 Reinforcement Plate

Reinforcement Plate

740 ₽
21

518324976 RH Suspension Bracket

RH Suspension Bracket

3 510 ₽
22

518324977 LH Suspension Bracket

LH Suspension Bracket

3 510 ₽
23

293150147 Hemlock Rivet

Hemlock Rivet

1 430 ₽
24

518325973 RH Rear Base

RH Rear Base

1 600 ₽
25

518325974 LH Rear Base

LH Rear Base

1 600 ₽
26

518325159 RH Roller

RH Roller

6 860 ₽
27

518325160 LH Roller

LH Roller

6 860 ₽
28

518326656 Seal

Seal

730 ₽
29

518326486 Front Radiator

Front Radiator

29 330 ₽
30

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20

200 ₽
31

518326728 Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''

Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''

64 980 ₽
31

518326692 Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''

Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''

59 800 ₽
31

518326735 Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''

Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''

68 080 ₽
32

293150144 Stavex Rivet

Stavex Rivet

310 ₽
33

518325421 Rear Cap

Rear Cap

0 ₽
34

518326216 RH Stirup

RH Stirup

12 230 ₽
35

518326239 LH Stirup

LH Stirup

12 230 ₽
36

250000248 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip

280 ₽
37

293730042 Dart

Dart

200 ₽
38

293450268 Insert

Insert

740 ₽
A

390402300 Pop Rivet 3/16''

Pop Rivet 3/16''

280 ₽
B

293150174 Rivet

Rivet

2 320 ₽
C

390909200 Avex Rivet

Avex Rivet

170 ₽
D

390909100 Avex Rivet

Avex Rivet

120 ₽
E

293150144 Stavex Rivet

Stavex Rivet

310 ₽
F

293150146 Henrob Rivet

Henrob Rivet

680 ₽
G

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm

2 320 ₽
